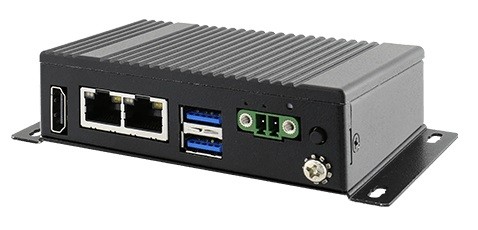

Winmate EACIEK20

Embedded System

PRODUKT-FEATURES

// Embedded System
// Intel Celeron N6211
// 1,2 GHz
// Passiv gekühlt
// 4 GB RAM
// 2 x USB (Frontseite)
// 2 x G-LAN (Frontseite)
// 1 x M.2 Slot
// 9~36V

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

ANFRAGE
CHAT
TELEFON
VERGLEICHEN
MERKEN

Basismodul: Winmate EACIEK20

Allgemein
	SKU / Artikelnummer			EACIEK20
Produktgrunddaten
	Hersteller			Winmate
System
	Prozessor	Vertikales Segment		Embedded
		Serie		Intel Elkhart Lake
		Nummer		Intel Celeron N6211
		CPU Kerne		2 St
		Threads		2 St
		Sockel		BGA 1493
		Basis Frequenz		1,2 GHz
		Max. Turbo-Taktfrequenz		3 GHz
		Cache		1,5 MB
		Thermal Design Power (TDP)		6,5 W
	Chipsatz			SoC (System-On-Chip)
	Speicher	Memory Type		DDR4
		Maximaler Ausbau		8 GB
		Speicher onBoard		4 GB
	Storage	Embedded MultiMedia Card (eMMC)		32 GB
	Storage			Embedded MultiMedia Card (eMMC) 32 GB
Grafik
	Prozessor			Intel UHD Graphics
Erweiterung
	M.2	Slot 1	Key ID	B
			Interface	SATA III, WLAN
			Unterstütze Abmaße	2242
		M.2 Key IDs		B
	Storage			M.2
Externe I/O (Frontseite)
	Ethernet	RJ-45		2 St
	USB	USB v3.2 (Gen 1)		2 St
Sicherheit
	Trusted Platform Modul (TPM)			v2.0
Stromversorgung
	Typ (Eingang)	DC	Weitbereich	Ja
			Bereich	9~36V
			Anschluss	2 Pin Terminal Stecker
	Stromversorgung - Eingang			DC: 9~36V
	Stromaufnahme Maximal			36 W
Kühlung
	Umsetzung			Passiv
Mechanik / Umgebung
	Temperatur	Betrieb		0° bis 55°C
		Lagerung		-10° bis 65°C
	Relative Luftfeuchtigkeit	Betrieb		30 bis 75%, nicht kondensierend
	Abmaße	Formfaktor		Embedded System
		Breite		100 mm
		Tiefe		70 mm
		Höhe		31 mm
	Schutzart (IP)			IP30
	Vibration	Referenz Standard		IEC 68-2-64
	Schock	Referenz Standard		IEC 68-2-27
	Gewicht			400 g
	Bedienelemente	Power		1 St
		Reset		1 St
	Statusanzeigen	Power		1 St
	Antennenlöcher			2 St
	Farbe			Schwarz
	Material			Stahl
	Montageoption			Hutschiene (DIN Rail), VESA, Wandmontage
Betriebssysteme / Software
	Windows	Windows 11		Wird unterstützt
	Windows Embedded	Windows 10 Enterprise IoT LTSC (2021)		wind unterstützt
		Windows 11 IoT		wird unterstützt
	Linux	Distribution		Ubuntu 22.04
	Unterstützte BS			Windows, Windows Embedded, Linux
Zertifikate / Konformitäten
	CE			Ja
	FCC	Class B		Ja
	Weitere Zertifikate / Konformitäten			AWS loT Greengrass Certified, Microsoft Azure Certified for IoT
	RoHS konform			Ja

Product Change Notification (PCN)

Winmate recommends that the Operating System of Intel® Elkhart Lake, Tiger Lake and Alder Lake Platform Products use Windows 11 loT Enterprise GAC or Windows 11 Pro. PCN Type: Product Spec changes Change Detail Descriptions: Winmate recommends that the Operating System of Intel® Elkhart Lake, Tiger Lake and Alder Lake Platform Products use Windows 11 loT Enterprise GAC or Windows 11 Pro. In addition, as for Panel PC and Box PC product line, Intel® Tiger Lake and Alder Lake platforms support Modern Standby mode, which will result in products not having the wake on touch function from sleep mode when paired with the Windows 10 operating system. Therefore, Winmate recommends that Windows 11 be the first choice when considering the operating system for Intel® Tiger Lake and Alder Lake platform products. If you don't buy the OS image from Winmate , please install EETI driver from the download link_to instead of the original Windows 11 inbox driver. Driver EETI WOT download link : https://dc.winmate.com/main/download/Driver/SW DRIVER307.zip
Revision:	PCN-A-20240503-B
Revision date:	3. Mai 2024
Last purchase date:	6. Mai 2024
Last shipping date:
Betroffene Produkte:	EACIEK20, F65EAC-IT32, G101TG, I330EAC-ITW, I330EAC-ITW-6L, I330EAC-ITWE, I330EAC-ITWE-6L, IE32, IE32SB3-101, IE32SB3-101-6L, IE32SB3-101AI, ITMH100, ITMH100-6L, ITMH100-AI, ITMH100-EX, ITMH200, L140AD-3, L140AD-4, L140TG, L156AD, L156AD-4KM1, L156AD-4k, L156AD-FD, L156AD-M1, M101AD, M101EK, M101EKB, M101TG, M116TG, M133TG, M140TG, M140TGT, M900EK, R08IE3S-VMU1, R10IAD3S-PPT2, R10IAD3S-VMT2(HB), R10IE3S-67T2ST, R10IE3S-VMT2(HB), R10IT3S-VMT2(HB), R12IAD3S-PPM2, R12IE3S-GCM2(HB), R12IE3S-MRM2FP, R12IT3S-MRM2, R12ITWS-MHM2, R12ITWS-MHM2-EX, R15IAD3S-67C3-P(HB), R15IAD3S-PPC3, R15IAD3S-VMC3(HB), R15IE3S-65C3, R15IE3S-67C3-P(HB), R15IE3S-67C3ST, R15IE3S-GCC3(HB), R15IE3S-PTC3, R15IE3S-SPC3, R15IE3S-SPC3-B, R15IE3S-SPC369, R15IE3S-VMC3(HB), R15IT3S-67C3(HB), R15IT3S-MLA3FP, R15IT3S-MRM2, R15IT3S-SPC369, R15IT3S-SPC369-P1, R15IT3S-VMC3(HB), R15ITWS-MHB1-EX, R17IE3S-65M1, R17IE3S-67M1ST, R17IE3S-SPM1, R17IE3S-SPM169, R17IT3S-MRM1, R17IT3S-RKA1ML, R17ITWS-MHA1-EX, R19IAD3S-67FTP(HB), R19IAD7T-GPM1, R19IE3S-65M1, R19IE3S-67M1ST, R19IE3S-GCM1, R19IE3S-SPM1, R19IE3S-SPM1-B, R19IE3S-SPM169, R19IHAT-66EX, R19IHAT-66EX-T, R19IT3S-MLA3FP, R19IT3S-MRA2, R19IT3S-SPM169-P1, R19IT7T-GCM1, R19IT7T-POM1, R19ITWS-MHA3-EX, S101EK, S101TG, W07IE3S-GCO1HB, W07IE3S-GCT1, W10IE3S-GCH2, W10IE3S-MRH2FP, W10IE3S-SPH2-B, W12IAD3S-VMM9(HB), W12IE3S-GCB1, W12IE3S-GSB1, W12IE3S-MRB1FP, W12IE3S-PPB1, W12IE3S-VMM9(HB), W12IT3S-VMM9(HB), W15IAD3S-PPA4, W15IE3S-MRB1FP, W15IE3S-PPB2, W18IT3S-MLA3FP, W22IAD3S-67B2-P(HB), W22IAD7T-GPA3, W22IE3S-65A3, W22IE3S-67B1-P(HB), W22IE3S-GCA3, W22IE3S-PTA3, W22IE3S-SPA3, W22IE3S-SPA3-B, W22IE3S-SPA369, W22IT3S-MLA3FP, W22IT3S-PPA3, W22IT3S-PTA3, W22IT3S-SPA369-P1, W22IT7T-PTA3-ME, W22ITWS-MHA3, W22ITWS-MHB1-EX, W24IAD7T-GPA2, W24IE3S-65A2, W24IE3S-GCA2, W24IE3S-SPA2, W24IE3S-SPA269, W24IT3S-MLA2FP, W24IT3S-MRA1, W24IT3S-PTA2, W24IT3S-SPA269-P1, W24IT7T-GCA2, W24IT7T-PTA2-ME, W24ITWS-MHA2, W24ITWS-MHA2-EX, W27IAD3S-PCA1, W27IAD3S-PPA1, W27IAD7T-PCA1, W27IAD7T-POA1, W27IE3S-PCA1, W27IT3S-PCA1, W32IT3S-MLA3FP, WNAI-E800, L140TG-3, L140TG-4
Hinweis Dokument:	PCN-20240503-B-intel-processor.pdf
