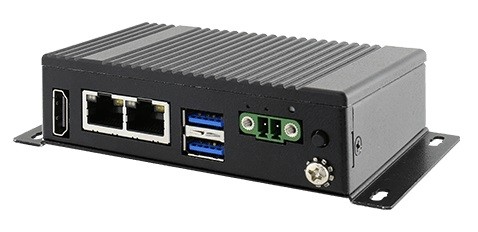

Embedded System
// Embedded System
// Intel Celeron N3350
// 1,1 GHz
// Passiv cooled
// 4 GB RAM
// 1 x Display
// 2 x USB (Front page)
// 2 x G-LAN (Front page)
// [0 | 1] x Mini-PCIe
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate EACIL20
Allgemein | ||||
SKU / Artikelnummer | EACIL20 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Celeron N3350 | |||
CPU Kerne | 2 St | |||
Threads | 2 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz | |||
Max. Turbo-Taktfrequenz | 2,4 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St, - | |
mSATA Unterstützung | -, Ja | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac | |
Bluetooth | Versions / Features | v4.0 | ||

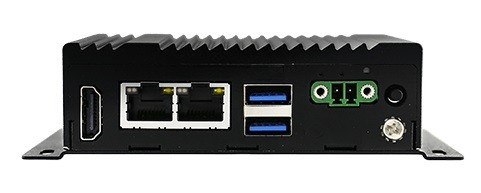

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 55°C | ||
Lagerung | -10° bis 65°C | |||
Abmaße | Formfaktor | Embedded System | ||
Breite | 100 mm | |||
Tiefe | 70 mm | |||
Höhe | 31 mm | |||
Schutzart (IP) | IP30 | |||
Vibration | Referenz Standard | IEC 68-2-64 | ||
Schock | Referenz Standard | IEC 68-2-27 | ||
Gewicht | 400 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Hutschiene (DIN Rail), VESA, Wandmontage | |||
Zubehör | -, mit 2 WWAN Antenna | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | AWS loT Greengrass Certified, Microsoft Azure Certified for IoT | |||
RoHS konform | Ja |
