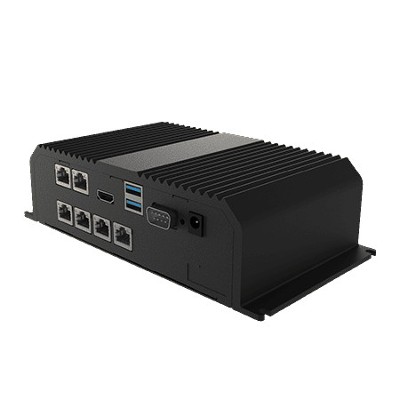

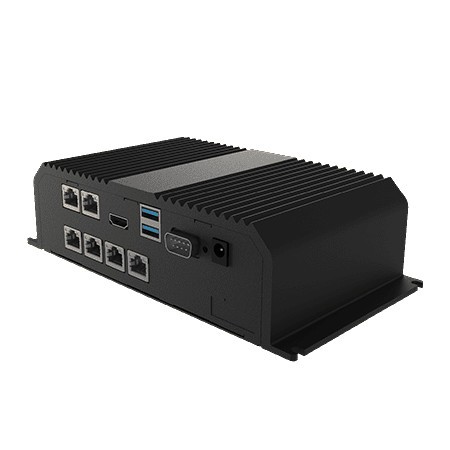

Winmate IE32SB3-101-6L

Embedded System

PRODUKT-FEATURES

// Embedded System
// Intel Celeron N6211
// 1,2 GHz
// Passiv gekühlt
// 4 GB RAM
// 1 x Seriell
// 2 x USB (Rückseite)
// 6 x G-LAN (Rückseite)
// 1 x M.2 Slot
// 12V

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

ANFRAGE
CHAT
TELEFON
VERGLEICHEN
MERKEN

Basismodul: Winmate IE32SB3-101-6L

Allgemein
	SKU / Artikelnummer			IE32SB3-101-6L
Produktgrunddaten
	Hersteller			Winmate
System
	Prozessor	Vertikales Segment		Embedded
		Serie		Intel Elkhart Lake
		Nummer		Intel Celeron N6211
		CPU Kerne		2 St
		Threads		2 St
		Sockel		BGA 1493
		Basis Frequenz		1,2 GHz
		Max. Turbo-Taktfrequenz		3 GHz
		Cache		1,5 MB
		Thermal Design Power (TDP)		6,5 W
		Lithographie		10 nm
	Chipsatz			SoC (System-On-Chip)
	Speicher	Aufbau		260 Pin SO-DIMM DDR4
		Memory Type		DDR4
		Frequenz		3200 MHz
		Steckplätze		1 St
		Maximaler Ausbau		16 GB
		Speicher onBoard		4 GB
	Storage	Solid State Drive (M.2)		128 GB
	Storage			Solid State Drive (M.2) 128 GB
Grafik
	Prozessor			Intel UHD Graphics
Erweiterung
	M.2	Slot 1	Key ID	B
			Interface	SATA III
			Unterstütze Abmaße	2242
		M.2 Key IDs		B

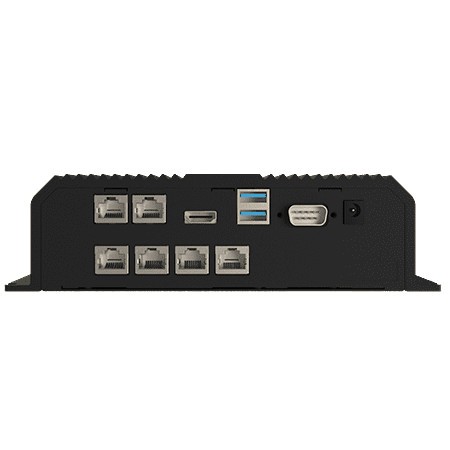

Externe I/O (Rückseite)
	Ethernet	RJ-45		6 St
	Seriell	RS-232 / 422 / 485	DB-9	1 St
	USB	USB v3.2 (Gen 2)		2 St
Sicherheit
	Trusted Platform Modul (TPM)			v2.0
Stromversorgung
	Typ (Eingang)	DC	Weitbereich	Nein
			Bereich	12V
			Anschluss	DC Jack
	Stromversorgung - Eingang			DC: 12V
Kühlung
	Umsetzung			Passiv
	Passiv	Wärmemanagement		Wärmespreizer (Heat Spreader)
Mechanik / Umgebung
	Temperatur	Betrieb		0° bis 55°C
		Lagerung		-10° bis 60°C
	Relative Luftfeuchtigkeit	Betrieb		10 bis 90%, nicht kondensierend
	Abmaße	Formfaktor		Embedded System
		Breite		205 mm
		Tiefe		110 mm
		Höhe		55 mm

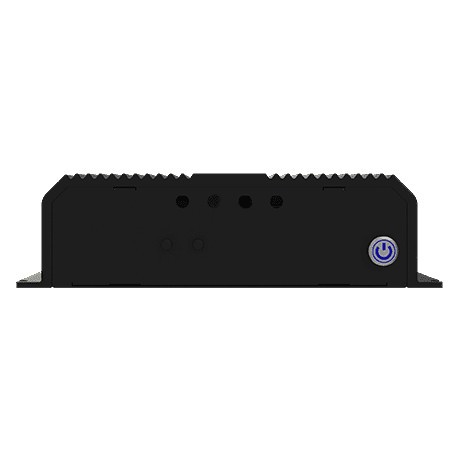

	Bedienelemente	Power		1 St
	Statusanzeigen	Power		1 St
	Farbe			Schwarz
	Material			Stahl
	Montageoption			VESA
Betriebssysteme / Software
	Windows Embedded	Windows 10 Enterprise IoT LTSC (2021)		wind unterstützt
		Windows 11 IoT		wird unterstützt
	Linux	Distribution		Ubuntu 22.04
	Unterstützte BS			Windows Embedded, Linux
Zertifikate / Konformitäten
	CE			Ja
	FCC	Class A		Ja
	RoHS konform			Ja

Product Change Notification (PCN)

Winmate recommends that the Operating System of Intel® Elkhart Lake, Tiger Lake and Alder Lake Platform Products use Windows 11 loT Enterprise GAC or Windows 11 Pro. PCN Type: Product Spec changes Change Detail Descriptions: Winmate recommends that the Operating System of Intel® Elkhart Lake, Tiger Lake and Alder Lake Platform Products use Windows 11 loT Enterprise GAC or Windows 11 Pro. In addition, as for Panel PC and Box PC product line, Intel® Tiger Lake and Alder Lake platforms support Modern Standby mode, which will result in products not having the wake on touch function from sleep mode when paired with the Windows 10 operating system. Therefore, Winmate recommends that Windows 11 be the first choice when considering the operating system for Intel® Tiger Lake and Alder Lake platform products. If you don't buy the OS image from Winmate , please install EETI driver from the download link_to instead of the original Windows 11 inbox driver. Driver EETI WOT download link : https://dc.winmate.com/main/download/Driver/SW DRIVER307.zip
Revision:	PCN-A-20240503-B
Revision date:	3. Mai 2024
Last purchase date:	6. Mai 2024
Last shipping date:
Betroffene Produkte:	EACIEK20, F65EAC-IT32, G101TG, I330EAC-ITW, I330EAC-ITW-6L, I330EAC-ITWE, I330EAC-ITWE-6L, IE32, IE32SB3-101, IE32SB3-101-6L, IE32SB3-101AI, ITMH100, ITMH100-6L, ITMH100-AI, ITMH100-EX, ITMH200, L140AD-3, L140AD-4, L140TG, L156AD, L156AD-4KM1, L156AD-4k, L156AD-FD, L156AD-M1, M101AD, M101EK, M101EKB, M101TG, M116TG, M133TG, M140TG, M140TGT, M900EK, R08IE3S-VMU1, R10IAD3S-PPT2, R10IAD3S-VMT2(HB), R10IE3S-67T2ST, R10IE3S-VMT2(HB), R10IT3S-VMT2(HB), R12IAD3S-PPM2, R12IE3S-GCM2(HB), R12IE3S-MRM2FP, R12IT3S-MRM2, R12ITWS-MHM2, R12ITWS-MHM2-EX, R15IAD3S-67C3-P(HB), R15IAD3S-PPC3, R15IAD3S-VMC3(HB), R15IE3S-65C3, R15IE3S-67C3-P(HB), R15IE3S-67C3ST, R15IE3S-GCC3(HB), R15IE3S-PTC3, R15IE3S-SPC3, R15IE3S-SPC3-B, R15IE3S-SPC369, R15IE3S-VMC3(HB), R15IT3S-67C3(HB), R15IT3S-MLA3FP, R15IT3S-MRM2, R15IT3S-SPC369, R15IT3S-SPC369-P1, R15IT3S-VMC3(HB), R15ITWS-MHB1-EX, R17IE3S-65M1, R17IE3S-67M1ST, R17IE3S-SPM1, R17IE3S-SPM169, R17IT3S-MRM1, R17IT3S-RKA1ML, R17ITWS-MHA1-EX, R19IAD3S-67FTP(HB), R19IAD7T-GPM1, R19IE3S-65M1, R19IE3S-67M1ST, R19IE3S-GCM1, R19IE3S-SPM1, R19IE3S-SPM1-B, R19IE3S-SPM169, R19IHAT-66EX, R19IHAT-66EX-T, R19IT3S-MLA3FP, R19IT3S-MRA2, R19IT3S-SPM169-P1, R19IT7T-GCM1, R19IT7T-POM1, R19ITWS-MHA3-EX, S101EK, S101TG, W07IE3S-GCO1HB, W07IE3S-GCT1, W10IE3S-GCH2, W10IE3S-MRH2FP, W10IE3S-SPH2-B, W12IAD3S-VMM9(HB), W12IE3S-GCB1, W12IE3S-GSB1, W12IE3S-MRB1FP, W12IE3S-PPB1, W12IE3S-VMM9(HB), W12IT3S-VMM9(HB), W15IAD3S-PPA4, W15IE3S-MRB1FP, W15IE3S-PPB2, W18IT3S-MLA3FP, W22IAD3S-67B2-P(HB), W22IAD7T-GPA3, W22IE3S-65A3, W22IE3S-67B1-P(HB), W22IE3S-GCA3, W22IE3S-PTA3, W22IE3S-SPA3, W22IE3S-SPA3-B, W22IE3S-SPA369, W22IT3S-MLA3FP, W22IT3S-PPA3, W22IT3S-PTA3, W22IT3S-SPA369-P1, W22IT7T-PTA3-ME, W22ITWS-MHA3, W22ITWS-MHB1-EX, W24IAD7T-GPA2, W24IE3S-65A2, W24IE3S-GCA2, W24IE3S-SPA2, W24IE3S-SPA269, W24IT3S-MLA2FP, W24IT3S-MRA1, W24IT3S-PTA2, W24IT3S-SPA269-P1, W24IT7T-GCA2, W24IT7T-PTA2-ME, W24ITWS-MHA2, W24ITWS-MHA2-EX, W27IAD3S-PCA1, W27IAD3S-PPA1, W27IAD7T-PCA1, W27IAD7T-POA1, W27IE3S-PCA1, W27IT3S-PCA1, W32IT3S-MLA3FP, WNAI-E800, L140TG-3, L140TG-4
Hinweis Dokument:	PCN-20240503-B-intel-processor.pdf
