Fahrzeug (In-Vehicle) System
// Fahrzeug (In-Vehicle) System
// [Intel Celeron G4900T | Intel Core i3-8100T | Intel Core i3-9100TE | Intel Core i5-8500T | Intel Core i5-9500TE | Intel Core i7-8700T | Intel Core i7-9700TE | Intel Pentium G5400T]
// [1,8 | 2,1 | 2,2 | 2,4 | 2,9 | 3,1] GHz
// 3 x Display
// 3 x Serial
// 2 x USB (Front page)
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue VMS-CFS
Allgemein | ||||
SKU / Artikelnummer | VMS-CFS | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Nummer | Intel Celeron G4900T, Intel Core i3-8100T, Intel Core i3-9100TE, Intel Core i5-8500T, Intel Core i5-9500TE, Intel Core i7-8700T, Intel Core i7-9700TE, Intel Pentium G5400T | |||
CPU Kerne | 2 St, 4 St, 6 St, 8 St | |||
Threads | 2 St, 4 St, 6 St, 8 St, 12 St | |||
Sockel | LGA 1151 (H4) | |||
Basis Frequenz | 1,8 GHz, 2,1 GHz, 2,2 GHz, 2,4 GHz, 2,9 GHz, 3,1 GHz | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,5 GHz, 3,6 GHz, 3,8 GHz, 4 GHz, - | |||
Cache | 2 MB, 4 MB, 6 MB, 9 MB, 12 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Lithographie | 14 nm | |||
Chipsatz | Intel Q370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 630 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, SATA III | |||
Unterstütze Abmaße | 2242, 2280, 3042 | |||
Slot 3 | Key ID | B | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E | |||
IET Interface | SMBus | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||

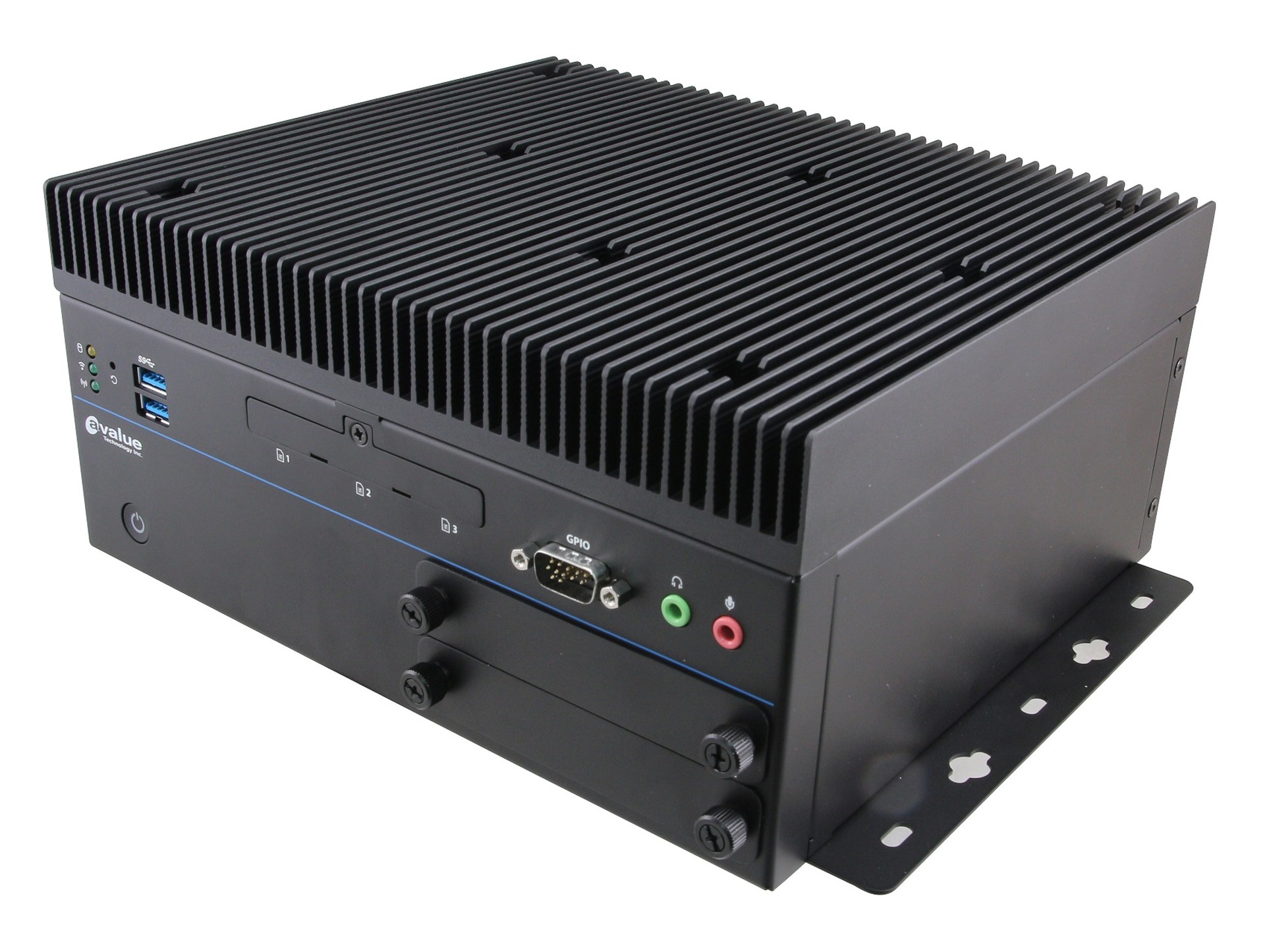

Externe I/O (Frontseite) | ||||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Digital I/O | Bits | 8-Bit | ||
Anschluss | DB-9 | |||
USB | USB v3.1 Gen. 1 | 2 St | ||
SIM Card Slot | 3 St | |||

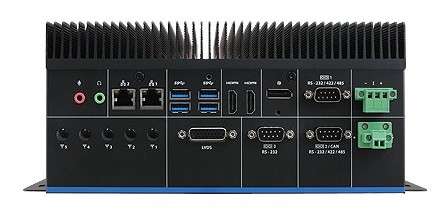

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
Displayport | 1 St | |||
LVDS | DB26 LVDS Interface mit 12V und USB 2.0 | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 2 St | ||
USB | USB v3.1 Gen. 1 | 4 St | ||
CAN Bus | Anschluss | DB-9 | ||
Stück | 1 St | |||
Protokoll | OBD-II, SAE J1708, SAE J1939 | |||
Sensor | ||||
GPS Module | u-blox NEO-M8N | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromstärke | 4 A | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Fahrzeug (In-Vehicle) System | ||
Breite | 239,4 mm | |||
Tiefe | 210 mm | |||
Höhe | 110 mm | |||
Schutzart (IP) | IP50 | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 | ||
Schock | Messdaten | 20G, 11 ms | ||
Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | |||
Gewicht | 4500 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Wi-Fi | 1 St | |||
Mobilfunknetz | 1 St | |||
Antennenlöcher | 5 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | E-Mark, ISO 7637-2 | |||
RoHS konform | Ja |
