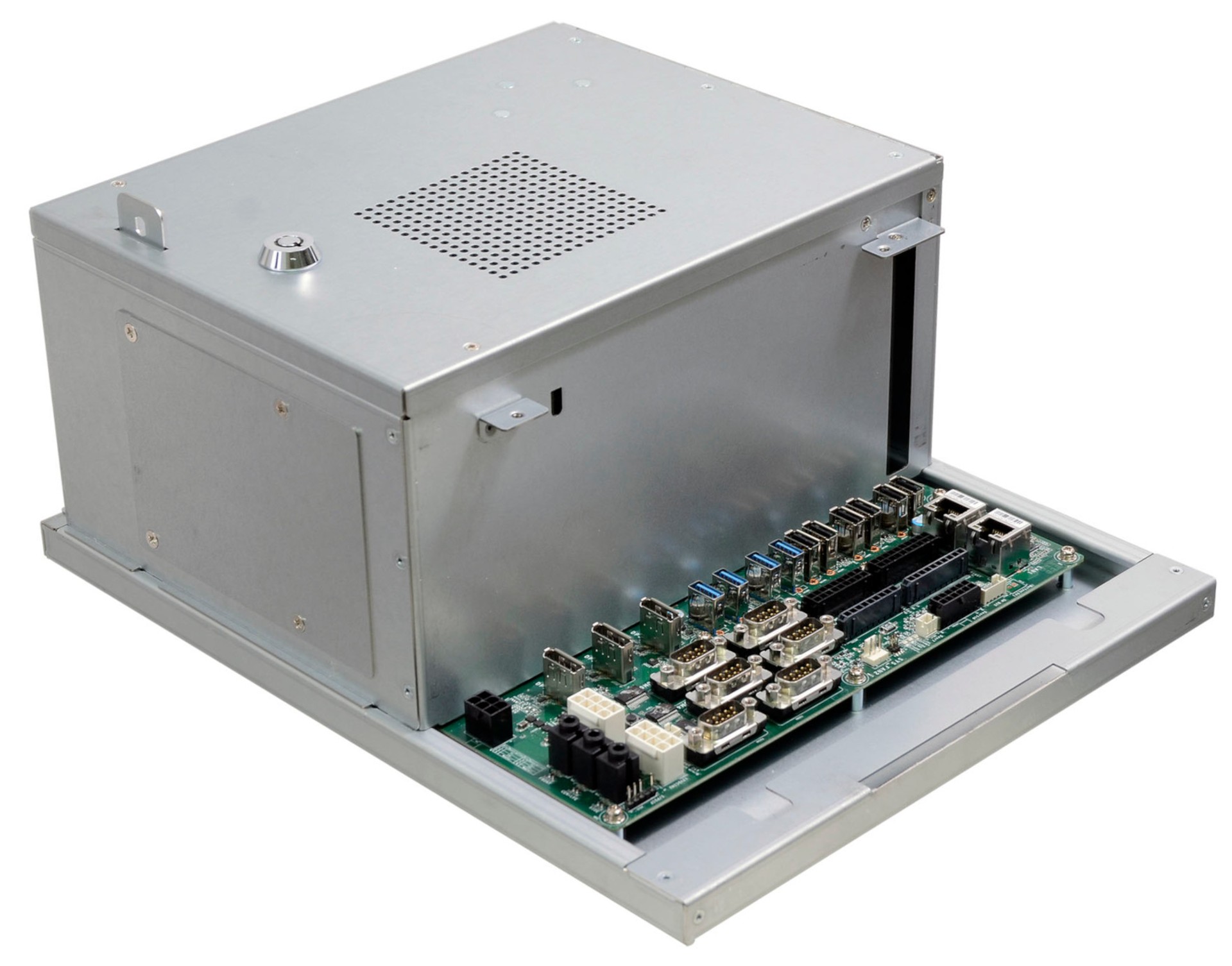

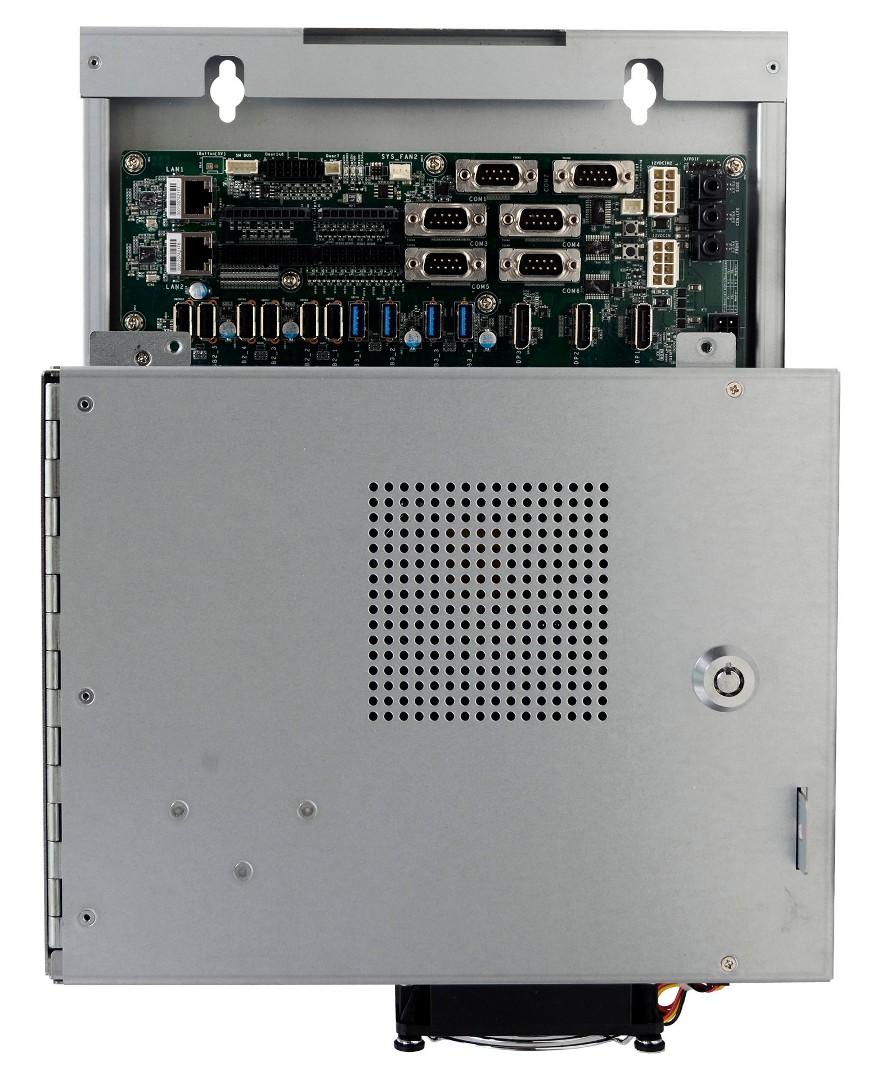

Gaming Embedded System
// Gaming Embedded System
// 3 x Display
// 6 x Serial
// [8 | 9] x USB (Back side)
// 2 x USB (internal)2 x G-LAN
// 1 x PCIe x16
// 1 x M.2 Slot
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI GM331-CSFS
| Allgemein | ||||
| SKU / Artikelnummer | GM331-CSFS | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| System | ||||
| Chipsatz | Intel H310, Intel Q370 | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| IC Data Rate | 2400 MHz, 2666 MHz | |||
| Steckplätze | 4 St | |||
| BIOS | AMI SPI 128 Mbit | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics Generation 9 | |||
| Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
| HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
| HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| DDI (Digital Display Interfaces) | DP++ | Maximale Auflösung | 4096 x 2160 bei 60 Hz | |
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Anzahl | 1 St | |
| PCIe Schnittstellen | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| M.2 Key IDs | M | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Realtek RTL8119G (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8111HS (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| I²C | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Stromanschluss (onboard) | 2 St | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | DP++ | 3 St | ||
| Seriell | RS-232 | DB-9 | 5 St | |
| RS-232 / 422 / 485 | DB-9 | 1 St | ||
| Digital I/O | Anzahl | 2 St | ||
| Bits | 16-Bit | |||
| USB | USB v2.0 | 4 St, 5 St | ||
| USB v3.0 | 4 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC) | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC) | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Typ (Ausgang) | DC | Bereich | 12V | |
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 45°C | ||
| Lagerung | -20° bis 70°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | Gaming Embedded System | ||
| Breite | 270 mm | |||
| Tiefe | 345,78 mm | |||
| Höhe | 152,25 mm | |||
| Gewicht | 3900 g | |||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
