Industrial Real-Time Embedded System (RTES)
// Embedded System
// [Intel Core i5-1335UE | Intel Core i7-1365UE]
// [1,3 | 1,7] GHz
// 2 x Anzeige
// 4 x Seriell
// 4 x USB (Frontseite)
// 3 x G-LAN (Frontseite)
// 2 x M.2 Slot
// 10~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

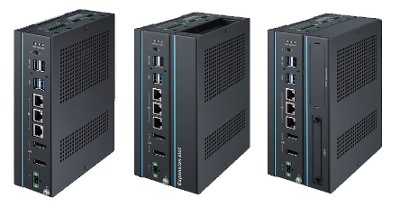

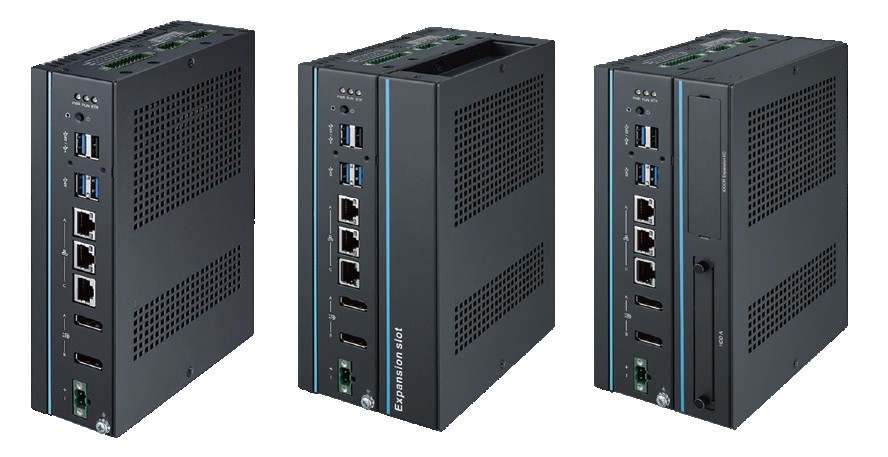

Basismodul: Advantech AMAX-7580 V2
Allgemein | ||||
SKU / Artikelnummer | AMAX-7580 V2 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Raptor Lake | |||
Nummer | Intel Core i5-1335UE, Intel Core i7-1365UE | |||
CPU Kerne | 10 St | |||
Threads | 12 St | |||
Sockel | BGA 1744 | |||
Basis Frequenz | 1,3 GHz, 1,7 GHz | |||
Performance-core Max Turbo Frequenz | 4,5 GHz, 4,9 GHz | |||
Efficient-core Max Turbo Frequenz | 3,3 GHz, 3,7 GHz | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 55 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 4800 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Displayport | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Version | 1.4 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 2 St | |||
M2M | Protokoll | Message Queuing Telemetry Transport (MQTT) | ||
Software Features | EtherCAT für industrielle Echtzeit-Kommunikation, Modbus TCP für industrielle Integration, OPC UA für standardisierte Datenintegration | |||
Netzwerk | 3x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Externe I/O (Frontseite) | ||||
Anzeige | Displayport | 2 St | ||
Ethernet | RJ-45 | 3 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.2 (Gen 1) | 1 St | |||
USB v3.2 (Gen 2) | 2 St | |||
Externe I/O (seitlich) | ||||
Seriell | RS-232 / 422 / 485 | 5 Pin Terminal Stecker | 4 St | |
Digital I/O | Anzahl | 2 St | ||
Bits | 8-Bit | |||
Anschluss | 14 Pin Terminal Stecker | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 10~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 10~36V | |||
Stromaufnahme Typisch | 41 W | |||
Stromaufnahme Maximal | 63 W | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 53 mm | |||
Tiefe | 140 mm | |||
Höhe | 200 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 2G, ganze Sinusschwingung, 10~500 MHz, 1 Oct./min, 1h / pro Axe | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 1800 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
System Status | 1 St | |||
Farbe | Schwarz | |||
Material | Aluminium | |||
Montageoption | Hutschiene (DIN Rail) | |||
Zubehör | mit CODESYS CDS Control, mit CODESYS CDS Control+Target/WebVisu, mit CODESYS CDS Control+Target/WebVisu+SoftMotion, mit CODESYS CDS Control+WebVisu, mit CODESYS CDS Control+WebVisu+SoftMotion, mit CODESYS CDS Control+WebVisu+SoftMotion+CNC&Robotics | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | -, wind unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, UL 61010-2 | |||
RoHS konform | Ja |
