Marine System
// Marine System
// [Intel Celeron 7305E | Intel Core i3-1315UE | Intel Core i5-1345UE | Intel Core i7-1365UE]
// [1 | 1,2 | 1,4 | 1,7] GHz
// Passiv cooled
// 2 x Display
// 2 x Serial
// 2 x USB (Front page)
// 4 x USB (Back side)
// 4 x G-LAN (Back side)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Darveen MC-346
Allgemein | ||||
SKU / Artikelnummer | MC-346 | |||
Produktgrunddaten | ||||
Hersteller | Darveen | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Raptor Lake | |||
Nummer | Intel Celeron 7305E, Intel Core i3-1315UE, Intel Core i5-1345UE, Intel Core i7-1365UE | |||
CPU Kerne | 5 St, 6 St, 10 St | |||
Threads | 5 St, 8 St, 12 St | |||
Sockel | BGA 1744 | |||
Basis Frequenz | 1 GHz, 1,2 GHz, 1,4 GHz, 1,7 GHz | |||
Performance-core Max Turbo Frequenz | 4,5 GHz, 4,6 GHz, 4,9 GHz, - | |||
Efficient-core Max Turbo Frequenz | 3,3 GHz, 3,4 GHz, 3,7 GHz, - | |||
Cache | 8 MB, 10 MB, 12 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 5200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, USB 3.0 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2 | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||

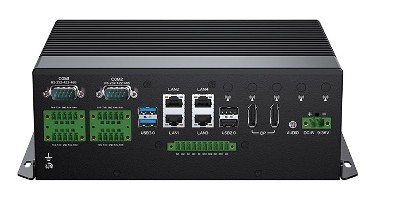

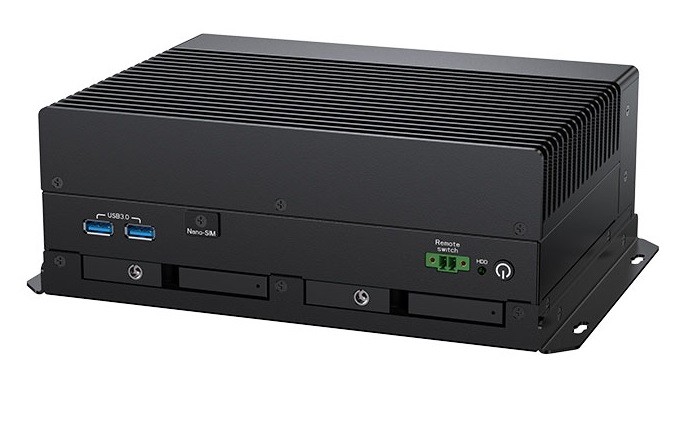

Externe I/O (Frontseite) | ||||
USB | USB v3.0 | 2 St | ||
SIM Card Slot | 1 St | |||

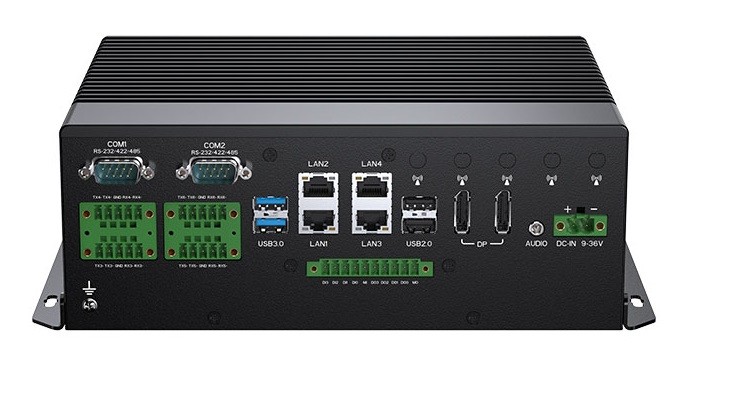

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 2 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 4 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 2 St | |||
NMEA | Type | NMEA 0183 | ||
Anschlüsse | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT760AABYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb (SSD) | -20° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Marine System | ||
Breite | 216 mm | |||
Tiefe | 164 mm | |||
Höhe | 82 mm | |||
Gewicht | 3500 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 5 St | |||
Farbe | Schwarz | |||
Material | Aluminium | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | IACS E10 / DNV, IEC 60945, IEC 61162 | |||
RoHS konform | Ja |
