Network Appliance System
// Network Appliance System
// AMD EYPC 9004 Serie
// AMD EYPC 9004 Serie
// Aktiv (Lüfterkühlung) gekühlt
// 1 x Anzeige
// 2 x USB (Frontseite)
// 3 x G-LAN (Frontseite)
// 2 x PCIe x16
// 2 x M.2 Slot
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

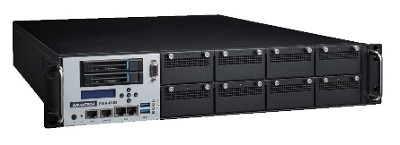

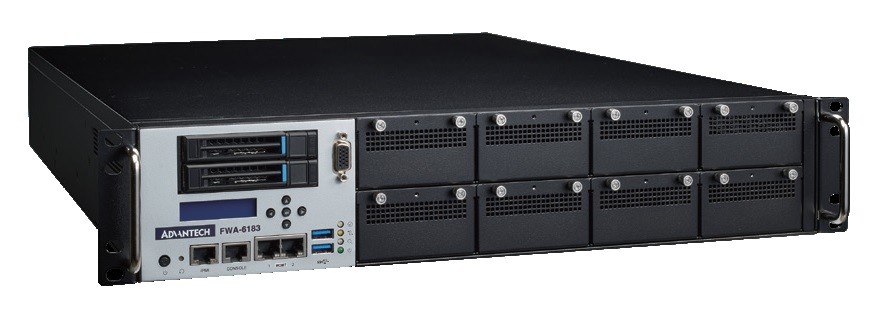

Basismodul: Advantech FWA-6183
Allgemein | ||||
SKU / Artikelnummer | FWA-6183 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | FWA-6183-00A1R | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD EYPC 9004 Serie | |||
Mehrprozessorsystem | Dual-Prozessor | |||
Prozessor 2 | Vertikales Segment | Server | ||
Serie | AMD EYPC 9004 Serie | |||
Mehrprozessorsystem | Dual-Prozessor | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 1024 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI BIOS | |||
IPMI | Version | 2.0 | ||
Erweiterung | ||||
PCIe x8 | Generation | 5 | ||
x8 Signal (Interface) | 8 St | |||
PCIe x16 | x16 Signal | Anzahl | 2 St | |
PCIe Schnittstellen | 8x PCIe x8, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Mezzanine | Anzahl | 8 | ||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

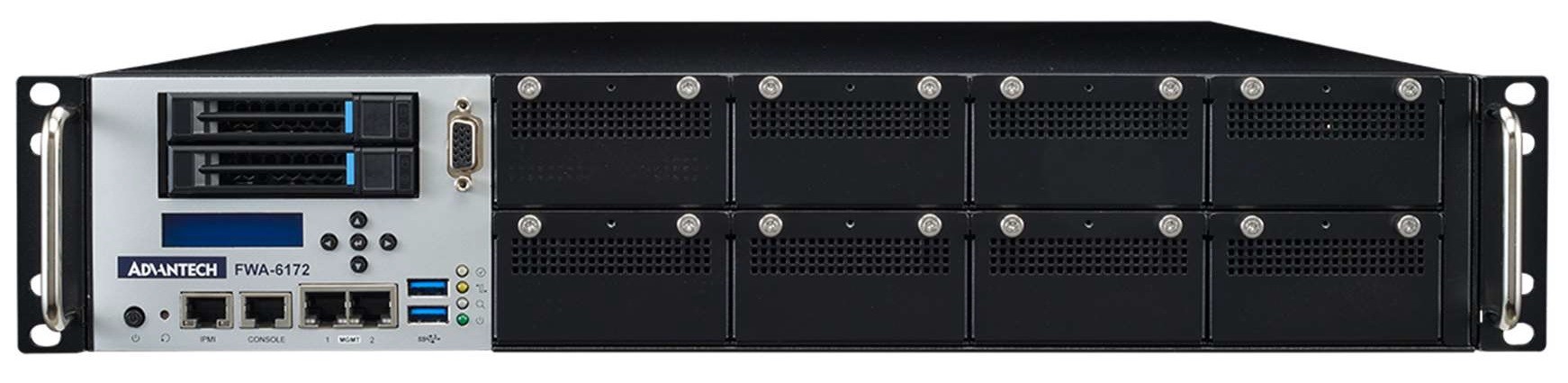

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
LCM Display | 2 x 16 Zeichen | |||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
USB | USB v3.0 | 2 St | ||
Console | RJ45 Anschluss | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||

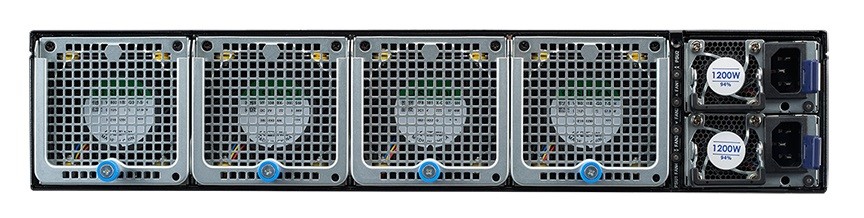

Stromversorgung | ||||
Typ (Eingang) | AC | Bereich | 100~240V | |
Eingangsfrequenz | 50~60 Hz | |||
Einschübe | 2 St | |||
Anschluss | C19 | |||
Stromversorgung - Eingang | AC: 100~240V | |||
Stromaufnahme Maximal | 1.200 W | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 4 St | |
Durchmesser | 80 mm | |||
Höhe | 38 mm | |||
Hotswap | Ja | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -40° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Network Appliance System | ||
Breite | 438 mm | |||
Tiefe | 600 mm | |||
Höhe | 88 mm | |||
Höheneinheiten | 2 HE | |||
Vibration | Vibration | 0,25G, 5~500 Hz | ||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Gewicht | 23500 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
System Status | 2 St | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Rackmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | CB | |||
RoHS konform | Ja |
