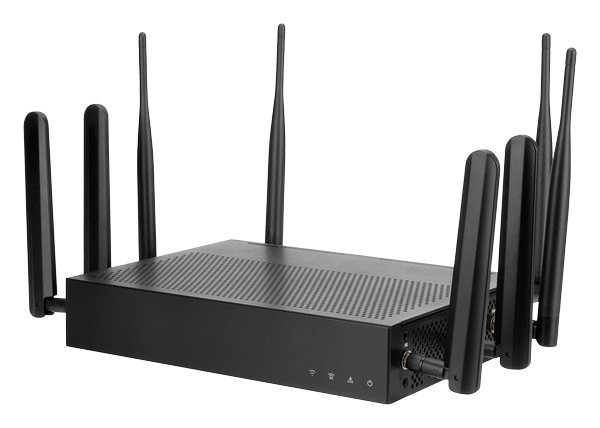

Network Appliance System
// Network Appliance System
// [Intel Atom X7203C | Intel Atom X7405C | Intel Atom X7433RE | Intel Atom X7809C | Intel Atom x7835RE]
// Aktiv (Lüfterkühlung) cooled
// [8 GB | -] RAM
// 3 x USB (Back side)
// 4 x G-LAN (Back side)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IEI PUZZLE-1100
Allgemein | ||||
SKU / Artikelnummer | PUZZLE-1100 | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7203C, Intel Atom X7405C, Intel Atom X7433RE, Intel Atom X7809C, Intel Atom x7835RE | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 9 W, 12 W, 25 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 4800 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB, - | |||
Storage | Embedded MultiMedia Card (eMMC) | 128 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 128 GB | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 4 St | |||
Netzwerk | 4x G-LAN | |||

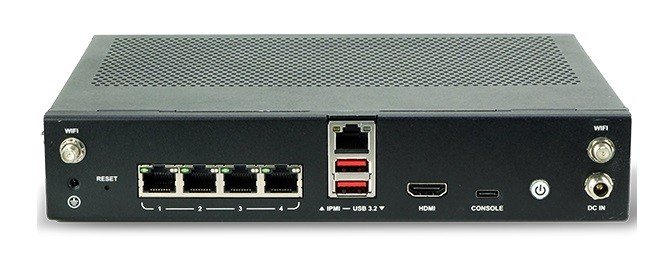

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 4 St | ||
USB | USB v3.2 (Gen 2) | 2 St | ||
USB v3.2 (Gen 2, Type C) | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -10° bis 50°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Network Appliance System | ||
Breite | 224,5 mm | |||
Tiefe | 170 mm | |||
Höhe | 42,5 mm | |||
Gewicht | 3000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Wi-Fi | 1 St | |||
Mobilfunknetz | 1 St | |||
System Status | 1 St | |||
Antennenlöcher | 8 St | |||
Farbe | Schwarz | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux |
