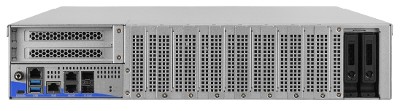

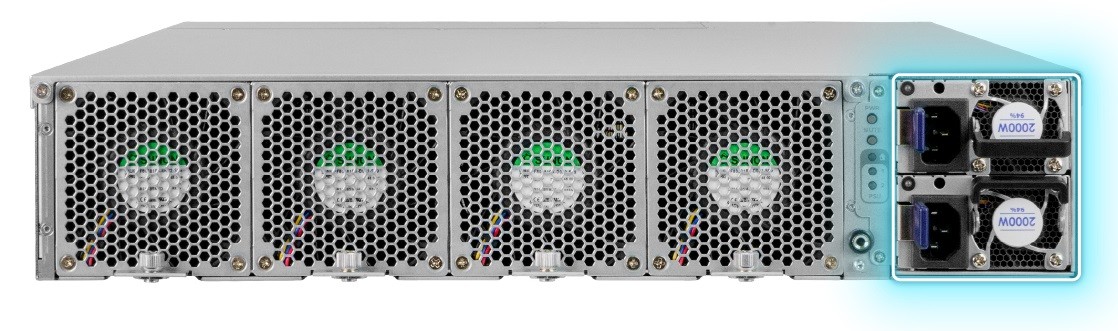

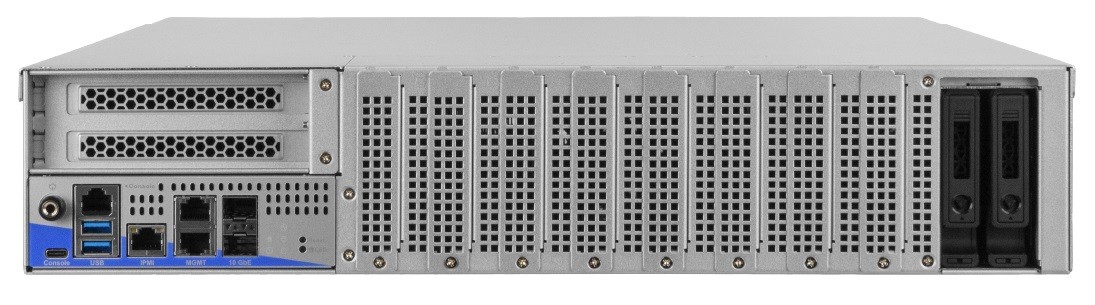

Network Appliance System
// Network Appliance System
// Aktiv (Lüfterkühlung) gekühlt
// 2 x USB (Frontseite)
// 4 x G-LAN (Frontseite)
// 1 x PCIe x16
// 2 x M.2 Slot
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IEI PUZZLE-9040
Allgemein | ||||
SKU / Artikelnummer | PUZZLE-9040 | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
Produkt-ID | PUZZLE-9040-R-R10 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Thermal Design Power (TDP) | 350 W | |||
Prozessor 2 | Thermal Design Power (TDP) | 350 W | ||
Chipsatz | Intel C741 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | ECC RDIMM | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 4000 GB | |||
ECC | wird unterstützt | |||
Erweiterung | ||||
PCIe x16 | x16 Signal | Anzahl | 1 St | |
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | B | |
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, M | |||
U.2 | Slot 1 | Signal | PCIe x4 | |
Slot 2 | Signal | PCIe x4 | ||
OCP | Anzahl | 8 St | ||
Version | 3 | |||
Storage | M.2, U.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel X710-BM2 (1/10 Gbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I350-AM2 Dual Port PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Frontseite) | ||||
Ethernet | RJ-45 | 2 St | ||
SFP+ (enhanced small form-factor pluggable) | 2 St | |||
USB | USB v3.0 | 2 St | ||
Management Ports | Anzahl | 1 St | ||
Anschluss | RJ-45 | |||
Console | RJ45 und USB Type C Anschluss | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Einschübe | 2 St | |
Anschluss | C14 | |||
Stromaufnahme Maximal | 2.000 W | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 4 St | |
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 45°C | ||
Lagerung | -10° bis 50°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Network Appliance System | ||
Breite | 438 mm | |||
Tiefe | 623 mm | |||
Höhe | 88,5 mm | |||
Gewicht | 25000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Fehler | 1 St | |||
System Status | 5 St | |||
Slot Brackets | Standard | 2 St | ||
Farbe | Silber | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux |
