COM Express Basic
// COM Express Basic
// [Intel Core i3-9100HL | Intel Core i5-8400H | Intel Core i7-9850HE | Intel Xeon E-2276ME]
// 260 Pin SO-DIMM DDR4
// LVDS|DDI
// 1 x G-LAN
// 12 x USB (intern)
// Digital I/O (8-Bit)
// 8 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

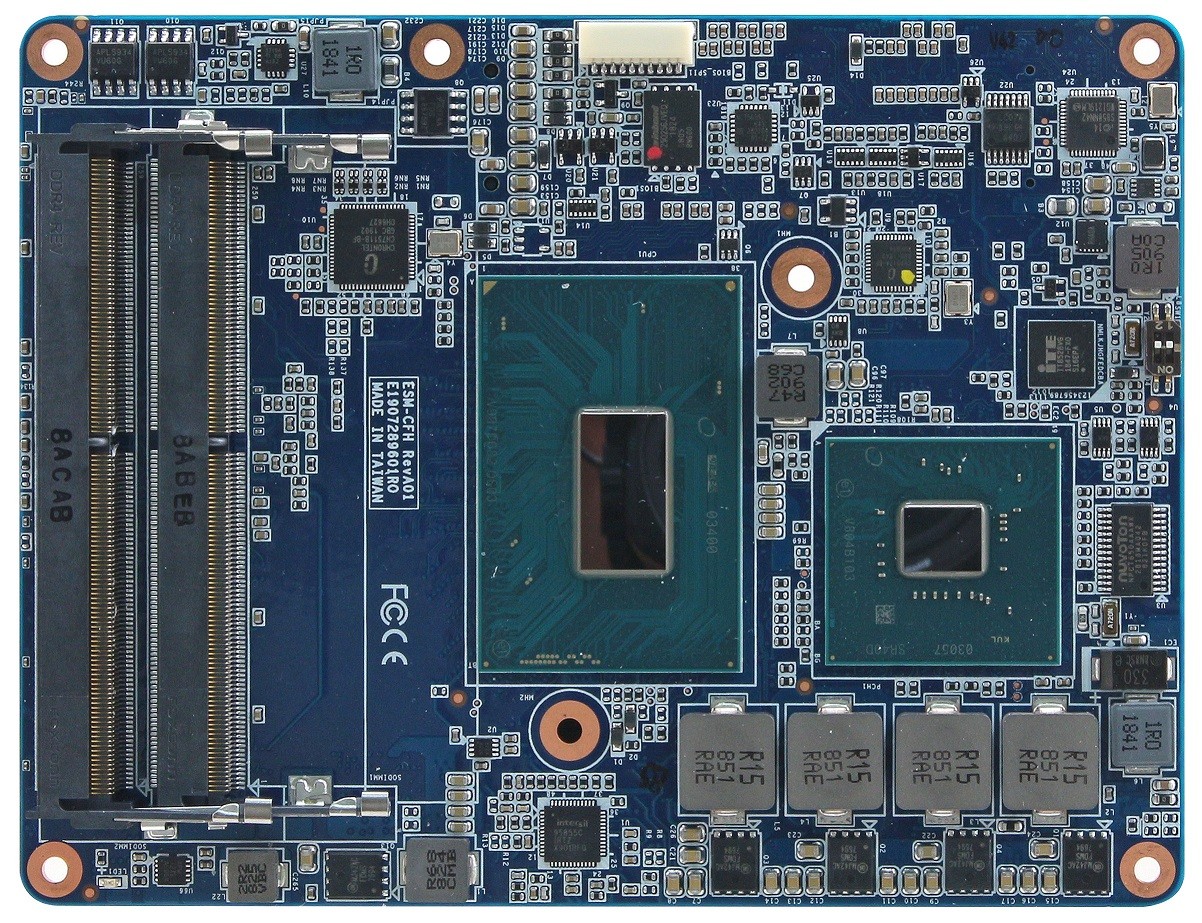

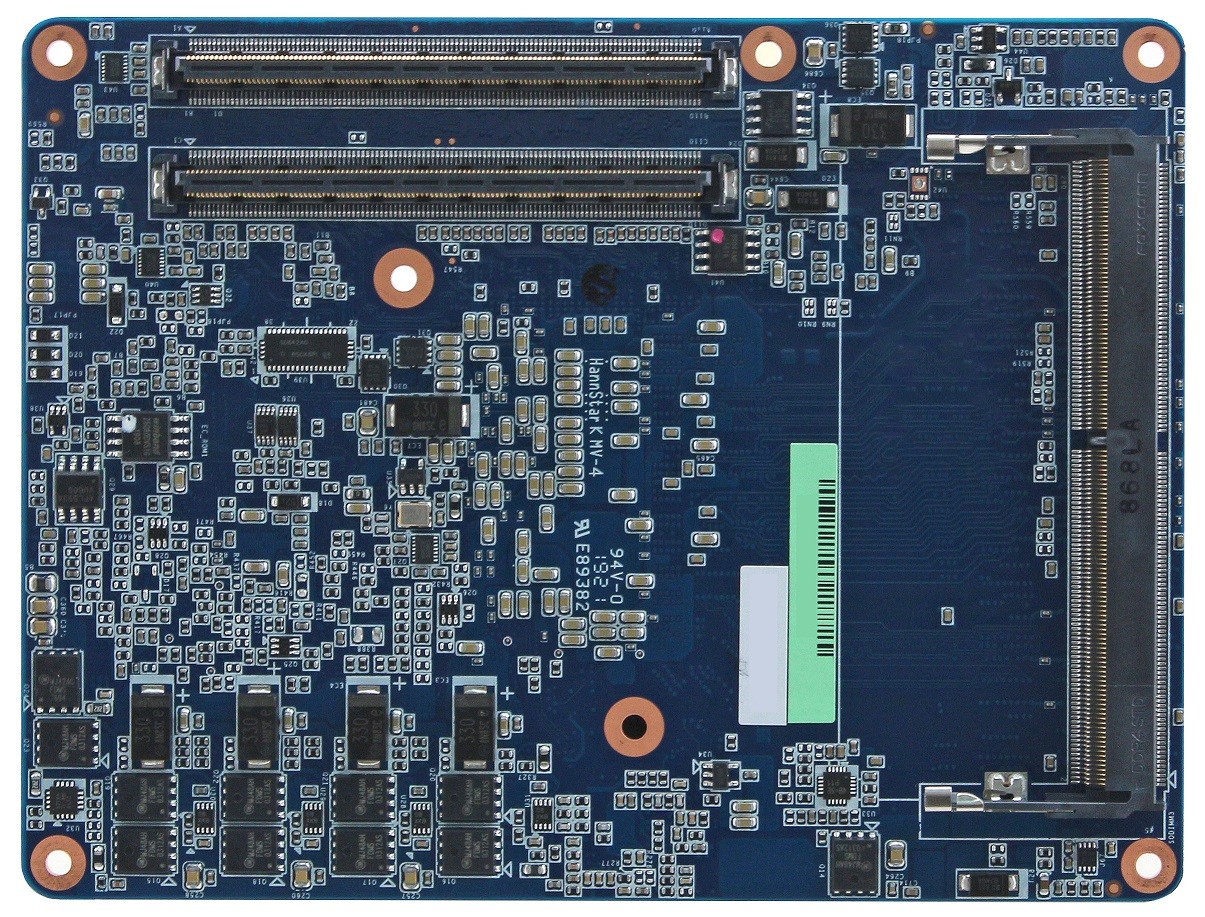

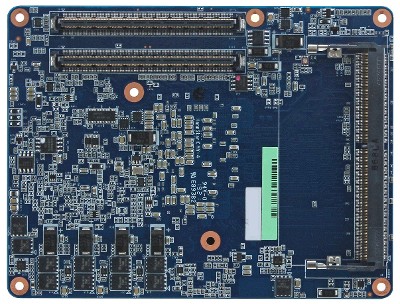

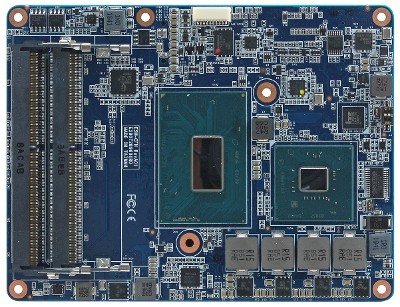

Basismodul: Avalue ESM-CFH
Allgemein | ||||
SKU / Artikelnummer | ESM-CFH | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Nummer | Intel Core i3-9100HL, Intel Core i5-8400H, Intel Core i7-9850HE, Intel Xeon E-2276ME | |||
CPU Kerne | 4 St, 6 St | |||
Threads | 4 St, 8 St, 12 St | |||
Sockel | BGA 1440 | |||
Basis Frequenz | 1,6 GHz, 2,5 GHz, 2,7 GHz, 2,8 GHz | |||
Cache | 6 MB, 8 MB, 9 MB, 12 MB | |||
Thermal Design Power (TDP) | 25 W, 45 W | |||
Lithographie | 14 nm | |||
Chipsatz | Intel CM246, Intel QM370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 3 St | |||
Maximaler Ausbau | 96 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | AMI UEFI 128 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
HDMI | Version | 1.4 | ||
Displayport | Version | 1.2 | ||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7511B | |||
DDI (Digital Display Interfaces) | DP | Maximale Auflösung | 4096 x 2304 bei 60 Hz | |
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Erweiterung | ||||
PCIe x1 | x1 Signal (Interface) | 8 St | ||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl (Interface) | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16, 8x PCIe x1 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 12.0, - | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Interface | 8 St | |
USB v3.2 | Interface | 4 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Interface | 1 St | |||
DDI Interface | 1 St | |||
VGA (proprietärer Anschluss) | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx | 2 St | ||
Serial-ATA | S-ATA R3.0 (Interface) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 9~19V | |
Anschluss | COM Express Anschluss (2 x 220 Pins je Row A + B) | |||
Stromversorgung - Eingang | DC: 9~19V | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | COM Express Basic | ||
Breite | 95 mm | |||
Tiefe | 125 mm | |||
Gewicht | 200 g | |||
Zertifikate / Konformitäten | ||||
Kompatibilität | PICMG COM Express R3.0, Type 6 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
