COM Express Compact
// COM Express Compact
// [Intel Atom x7213RE | Intel Atom X7433RE | Intel Atom x7835RE]
// 262 Pin SO-DIMM DDR5
// LVDS
// 1 x G-LAN
// 10 x USB (intern)
// Digital I/O (8-Bit)
// 4 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

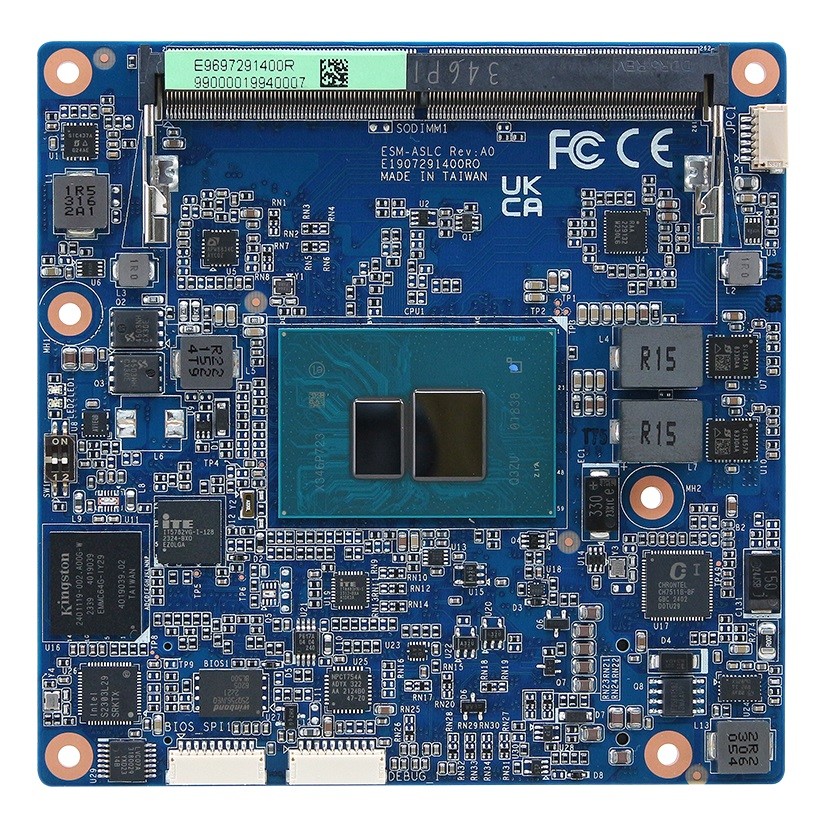

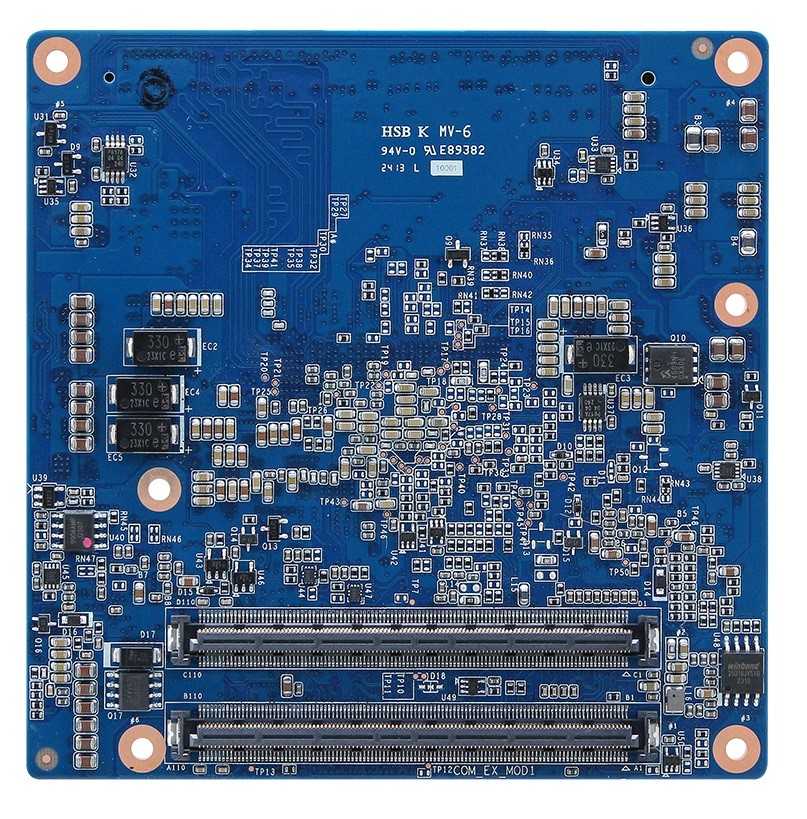

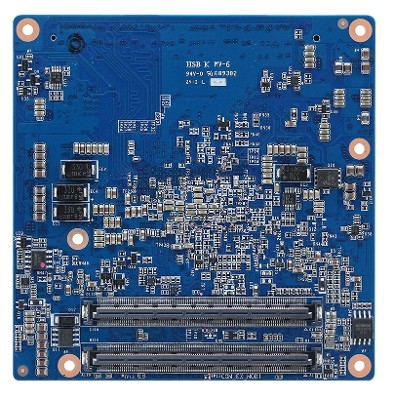

Basismodul: Avalue ESM-ASLC
Allgemein | ||||
SKU / Artikelnummer | ESM-ASLC | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom x7213RE, Intel Atom X7433RE, Intel Atom x7835RE | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,4 GHz, 3,6 GHz | |||
Thermal Design Power (TDP) | 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Storage | eMMC Version | 5.1 | ||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5782VG | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4a | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7511B | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | Generation | 3 | ||
x1 Signal (Interface) | 4 St | |||
PCIe Schnittstellen | 4x PCIe x1 | |||
Audio | ||||
Chipsatz | Intel Integrated Audio | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Interface | 8 St | |
USB v3.2 | Generation | Gen. 2 | ||
Interface | 2 St | |||
Anzeige | LVDS | Dual Channel | ||
LVDS Interface | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx | 2 St | ||
Serial-ATA | S-ATA R3.0 (Interface) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~19V | |||
Anschluss | COM Express Anschluss (2 x 220 Pins je Row A + B) | |||
Stromversorgung - Eingang | DC: 9~19V | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | COM Express Compact | ||
Breite | 95 mm | |||
Tiefe | 95 mm | |||
Gewicht | 200 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Kompatibilität | PICMG COM Express R3.1, Type 6 | |||
RoHS konform | Ja |
