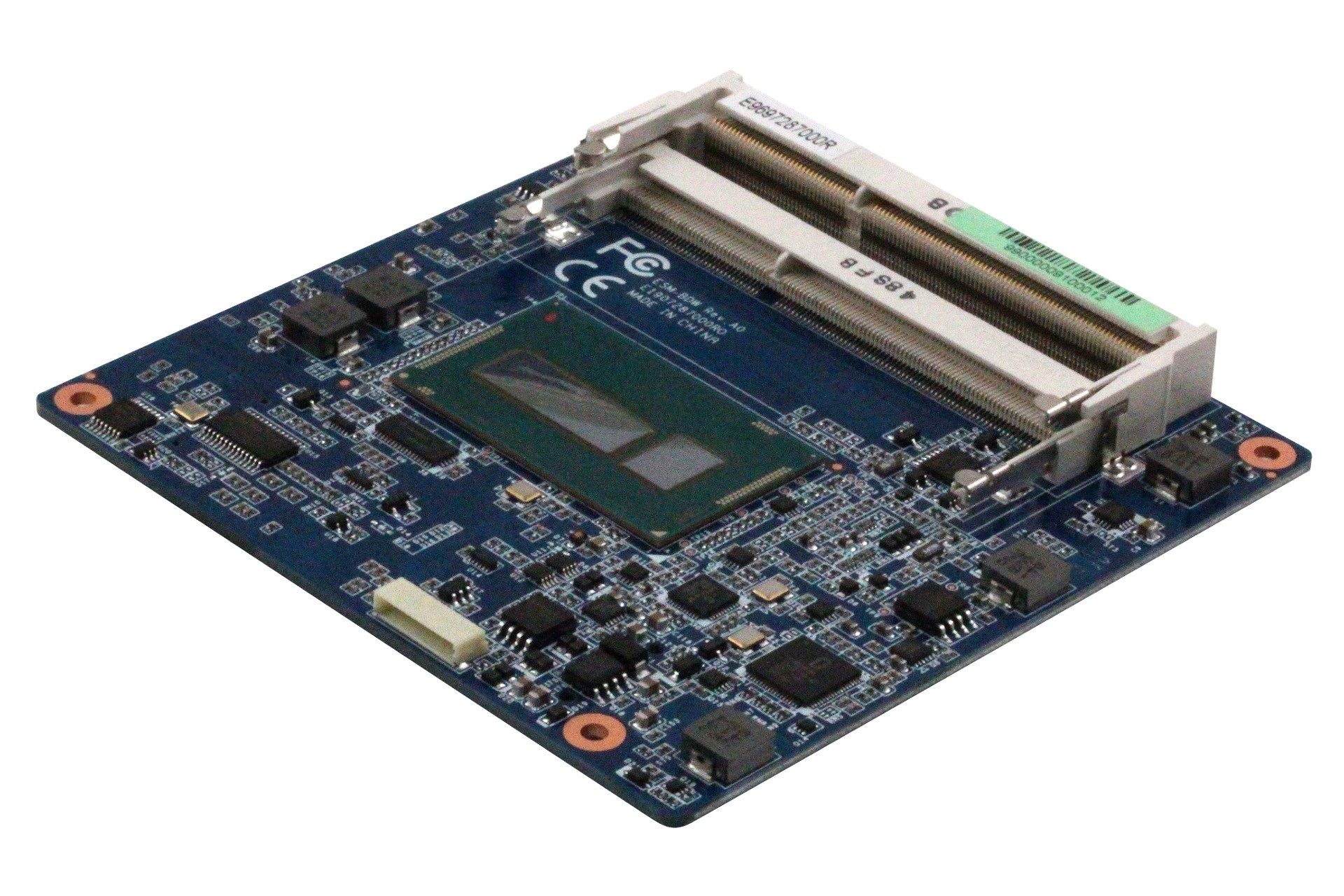

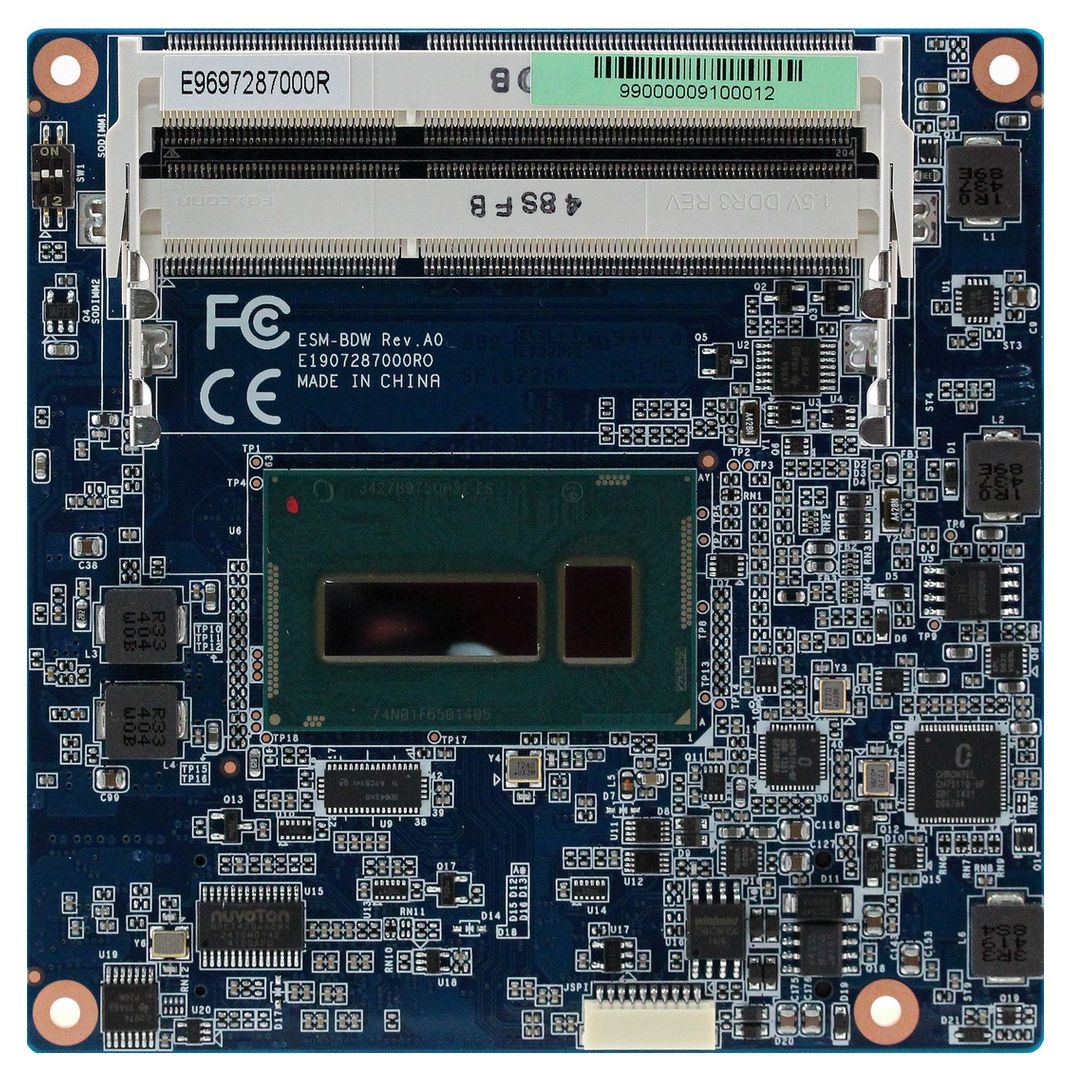

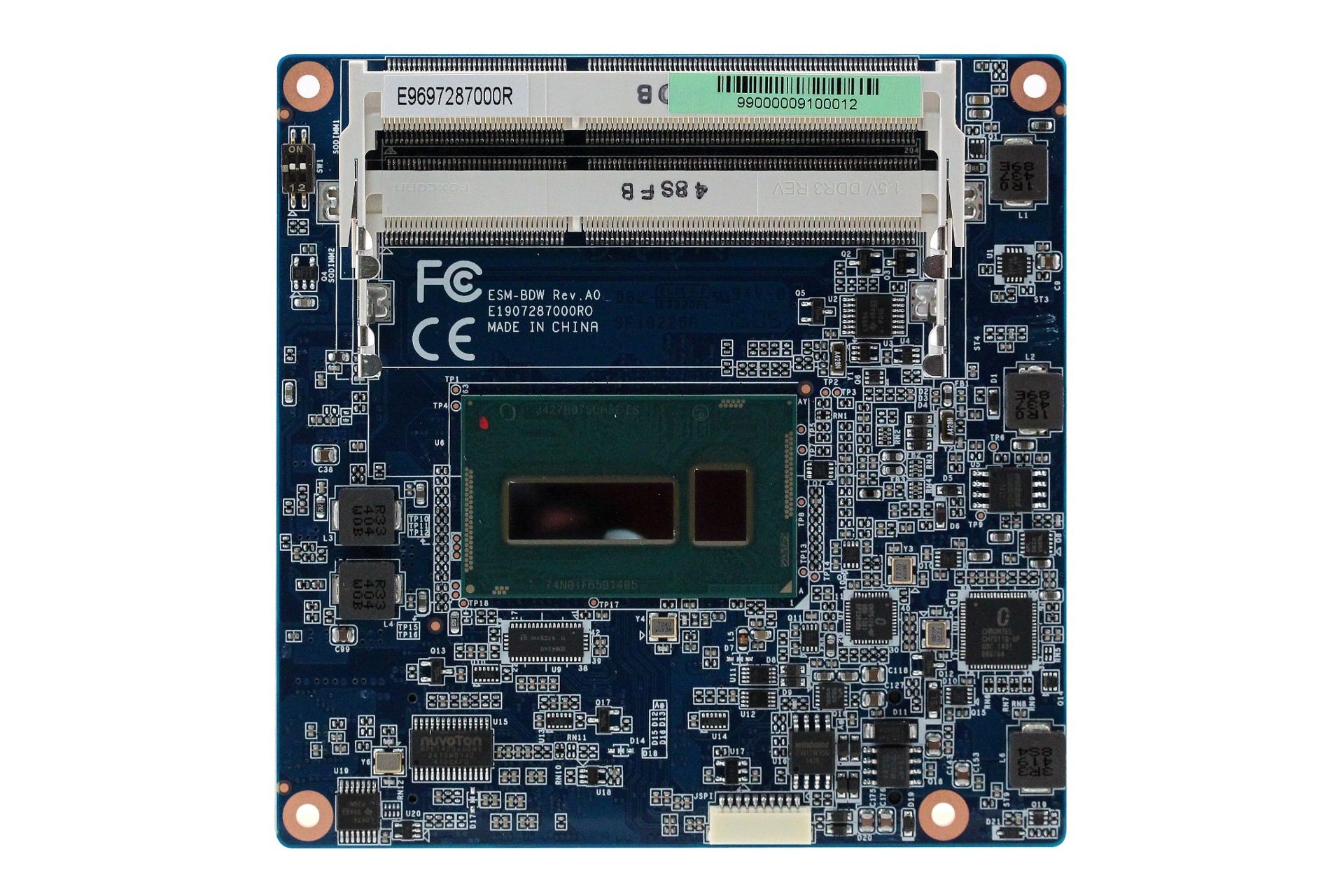

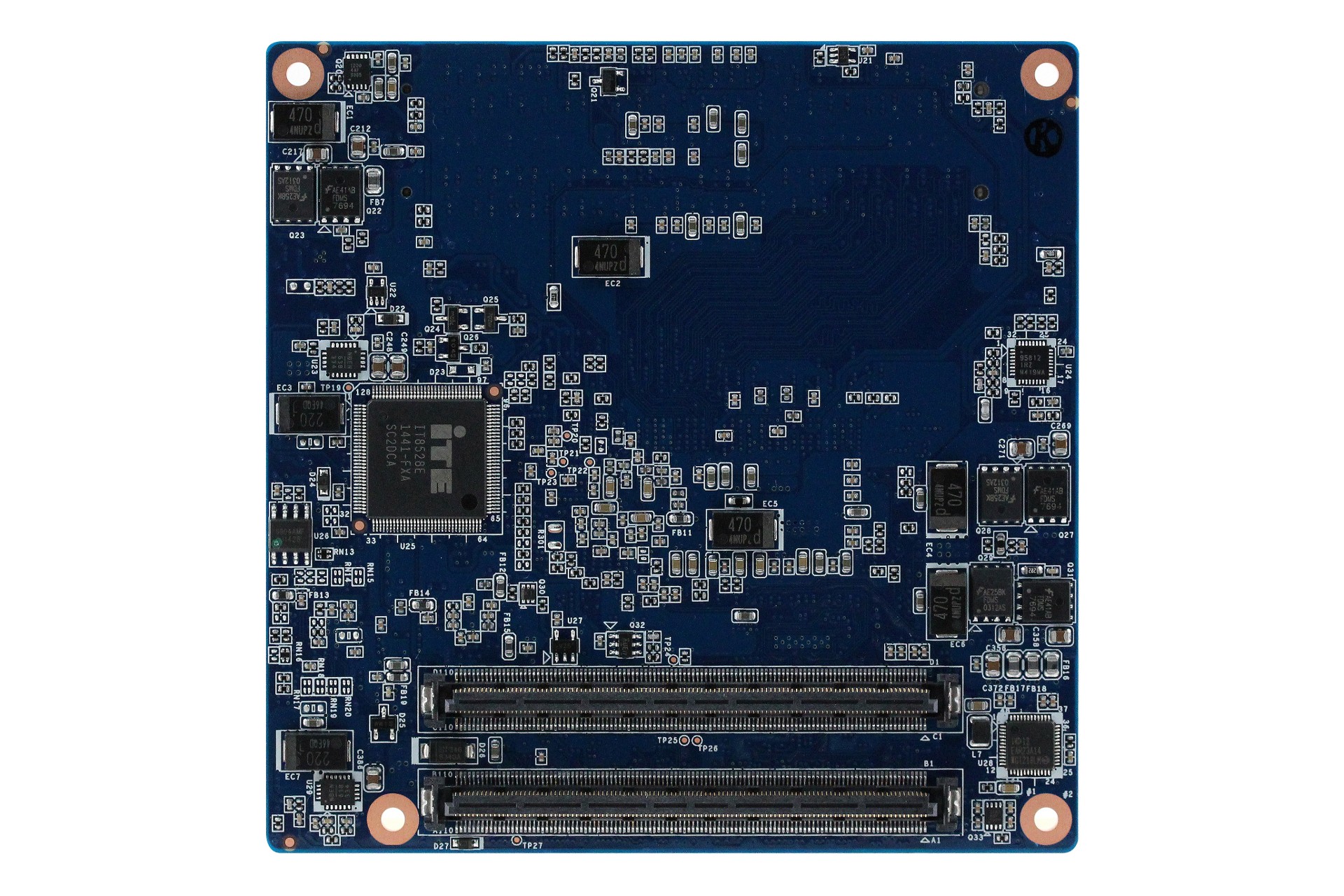

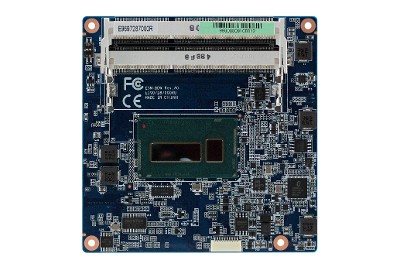

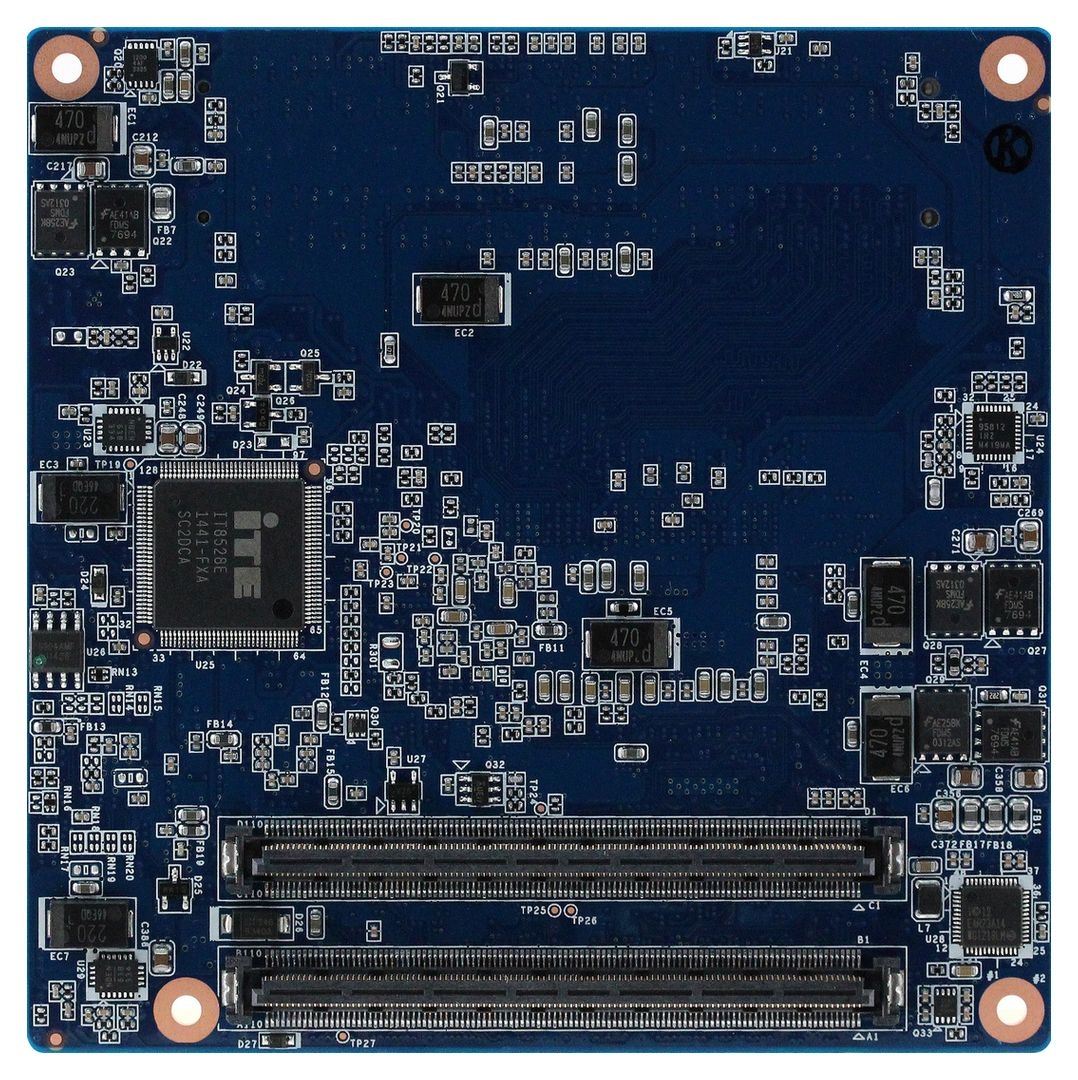

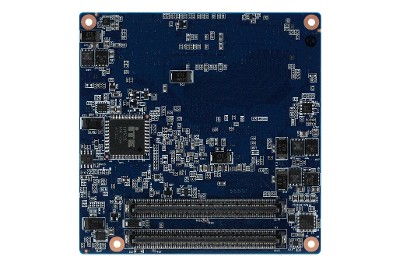

BCM ESM-BDW

ESM-BDW-5010, ESM-BDW-5350, ESM-BDW-5650

COM Express Compact

PRODUKT-FEATURES

// COM Express Compact
// [Intel Core i3-5010U | Intel Core i5-5350U | Intel Core i7-5650U]
// 204 Pin SO-DIMM DDR3L
// LVDS
// 1 x G-LAN
// 10 x USB (intern)
// Digital I/O (8-Bit)
// 4 x PCIe x1

KONFIGURATION

Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration Individualkonfiguration

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: BCM ESM-BDW

Allgemein
SKU / ArtikelnummerESM-BDWESM-BDW-5010, ESM-BDW-5350, ESM-BDW-5650
Produktgrunddaten
HerstellerBCM
System
ProzessorSerieIntel Broadwell
NummerIntel Core i3-5010U, Intel Core i5-5350U, Intel Core i7-5650U
CPU Kerne2 St
Threads4 St
SockelBGA 1168
Basis Frequenz1,8 GHz, 2,1 GHz, 2,2 GHz
Cache3 MB, 4 MB
Thermal Design Power (TDP)9,5 W, 10 W, 15 W
ChipsatzSoC (System-On-Chip)
SpeicherAufbau204 Pin SO-DIMM DDR3L
Steckplätze1 St
Maximaler Ausbau16 GB
BIOSAMI UEFI 128 Mbit SPI
Grafik
ProzessorIntel HD Graphics GT
Bildschirme (Multidisplay)2 Displays
VGAMaximale Auflösung1920 x 1200 bei 60 Hz
HDMIMaximale Auflösung4096 x 2160 bei 24 Hz
DisplayportMaximale Auflösung3840 x 2160 bei 60 Hz
LVDSMaximale Auflösung1920 x 1200 bei 60 Hz
Bits24 Bit
BridgeChrontel CH7511B
Erweiterung
PCIe x1x1 Signal (Interface)4 St
PCIe Schnittstellen4x PCIe x1
Netzwerk
G-LANControllerChipsatzIntel I218LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps)
Anzahl1 St
Netzwerk1x G-LAN
Externe I/O
AnzeigeVGA (proprietärer Anschluss)1 St
Interne I/O
USBUSB v2.0Interface8 St
USB v3.0Interface2 St
AnzeigeLVDSDual Channel
LVDS Interface1 St
Digital I/OBits8-Bit1 St
SMBus1 St
LPC1 St
I²C1 St
Serial-ATAS-ATA R3.0 (Interface)4 St
Betriebssysteme / Software
WindowsWindows 7 (32/64-bit)wird unterstützt
Windows 8 (32-bit)wird unterstützt
Windows 8 (64-bit)wird unterstützt
Windows 8.1 (32-bit)wird unterstützt
Windows 8.1 (64-bit)wird unterstützt
Unterstützte BSWindows
Mechanik / Umgebung
TemperaturBetrieb0° bis 60°C
Lagerung-40° bis 75°C
Relative LuftfeuchtigkeitBetrieb0 bis 90%, nicht kondensierend
AbmaßeFormfaktorCOM Express Compact
Breite95 mm
Tiefe95 mm
Zertifikate / Konformitäten
KompatibilitätPICMG COM Express R2.1, Type 6
Herstellergarantie
Herstellergarantie2 Jahre
