COM Express Compact
// COM Express Compact
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// 204 Pin SO-DIMM DDR3L
// LVDS|DDI
// 1 x G-LAN
// 12 x USB (intern)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 5 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

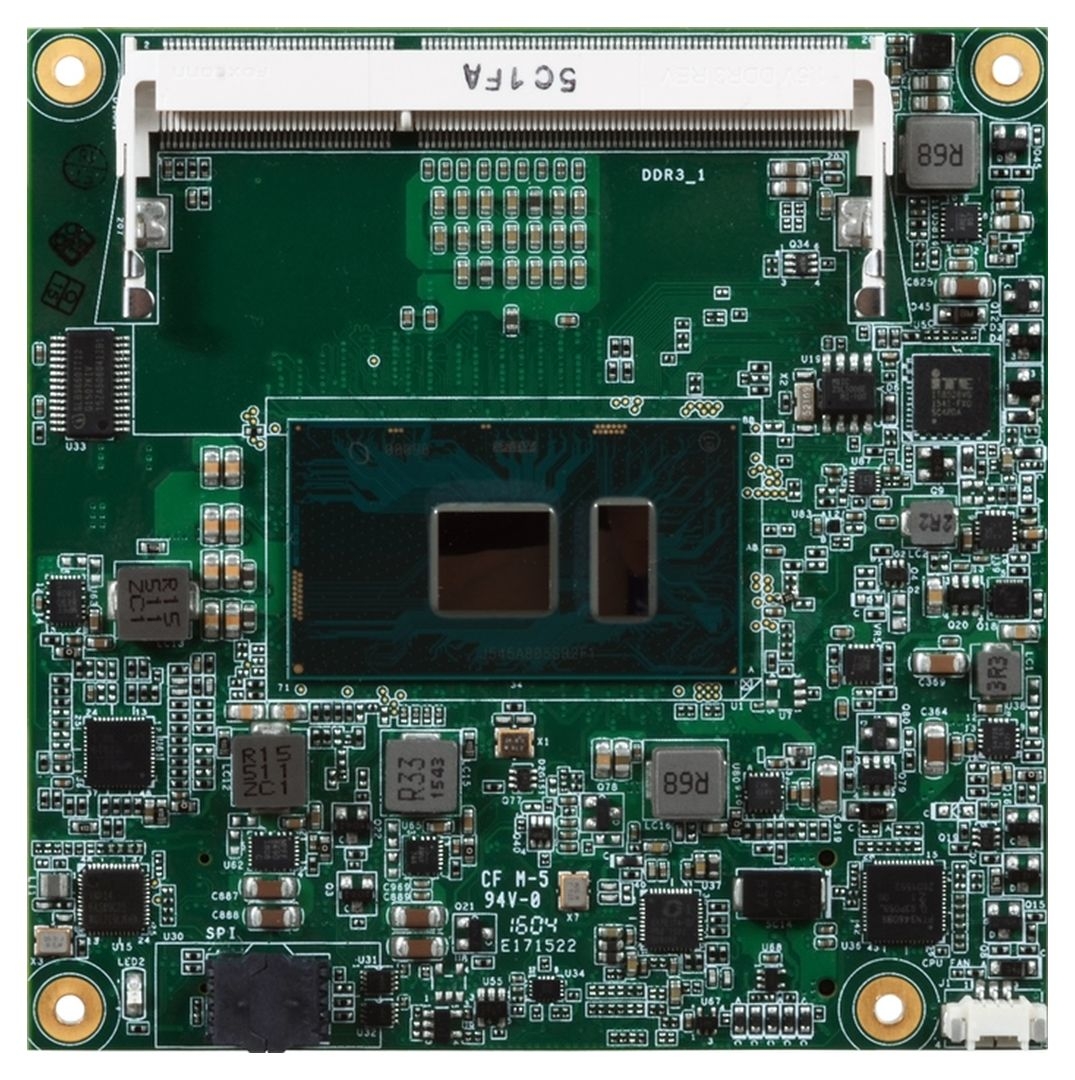

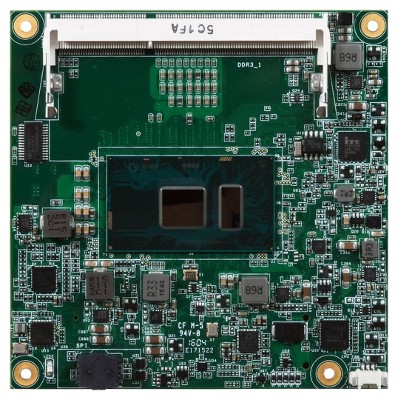

Basismodul: DFI SU968
Allgemein | ||||
SKU / Artikelnummer | SU968 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-SU9681-100G, 770-SU9681-400G, 770-SU9681-500G, 770-SU9681-600G, 770-SU9681-700G | |||
Lieferzeit | lieferbar in ca. 2 Wochen | |||
System | ||||
Prozessor | Serie | Intel Skylake | ||
Nummer | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz, 3,4 GHz, - | |||
Cache | 2 MB, 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
DIMM Datarate | 1600 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
DDI (Digital Display Interfaces) | DP++ | Maximale Auflösung | 4096 x 2304 bei 60 Hz | |
HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | Generation | 3 | ||
x1 Signal (Interface) | 5 St | |||
PCIe Schnittstellen | 5x PCIe x1 | |||
Audio | ||||
Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
Anzeige | VGA | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 8 St | |
USB v3.0 | Interface | 4 St | ||
Seriell | RS-232 | Interface | 2 St | |
Anzeige | LVDS | Dual Channel | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx/CTS/RTS | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | VCC_RTC (ATX Mode), 12V, 5VSB | |||
Anschluss | COM Express Anschluss (2 x 220 Pins je Row A + B) | |||
DC | Weitbereich | Nein | ||
Bereich | VCC_RTC (AT Mode), 12V | |||
Anschluss | COM Express Anschluss (2 x 220 Pins je Row A + B) | |||
Stromversorgung - Eingang | DC: VCC_RTC (ATX Mode), 12V, 5VSB,VCC_RTC (AT Mode), 12V | |||
Stromaufnahme Typisch | 10,28 W | |||
Stromaufnahme Typisch | Core i7-6600U / 12V | |||
Stromaufnahme Maximal | 16,46 W | |||
Stromaufnahme Maximal | Core i7-6600U / 12V | |||
Betriebssysteme / Software | ||||
Windows | Windows XP (32/64-bit) | wird unterstützt | ||
Windows 7 (32/64-bit) | wird unterstützt | |||
Windows 8.1 (64-bit) | wird unterstützt | |||
Windows 10 (64-bit) | wird unterstützt | |||
Windows Embedded | WES7E | wird unterstützt | ||
Linux | Distribution | CentOS 7, Debian 8, Ubuntu 15.10 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | COM Express Compact | ||
Breite | 95 mm | |||
Tiefe | 95 mm | |||
MTBF | MTBF 25°C | 921.923 h | ||
MTBF 45°C | 460.715 h | |||
MTBF 60°C | 256.677 h | |||
Berechnungsmodell | Telcordia Issue 2, Methode Case 3 | |||
Umgebung | GB, GC-Ground Bengin, Controlled | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Kompatibilität | PICMG COM Express R2.1, Type 6 | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q3/2017 | |||
Voraussichtlich bis | Q4/2029 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
