COM Express Mini
// COM Express Mini
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// [4 GB | 8 GB]
// 1 x G-LAN
// 10 x USB (internal)
// [32 GB | -] eMMC
// 4 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

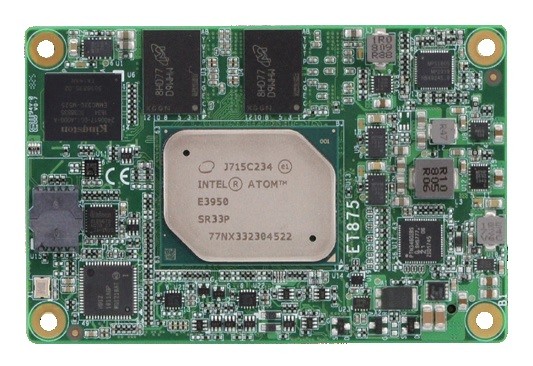

Basismodul: IBASE ET875
| Allgemein | ||||
| SKU / Artikelnummer | ET875 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Apollo Lake | |||
| Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1296 | |||
| Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR4 | ||
| Maximaler Ausbau | 8 GB | |||
| Speicher onBoard | 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB, - | ||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81804U-I | |
| Grafik | ||||
| Prozessor | Intel HD Graphics Generation 9 | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| Erweiterung | ||||
| PCIe x1 | x1 Signal (Interface) | 4 St | ||
| PCIe Schnittstellen | 4x PCIe x1 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Netzwerk | 1x G-LAN | |||
| Externe I/O | ||||
| Ethernet | Interface | 1 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Interface | 8 St | |
| USB v3.0 | Interface | 2 St | ||
| Anzeige | LVDS Interface | 1 St, - | ||
| DDI Interface | 1 St | |||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| I²C | 1 St | |||
| UART | Tx/Rx/CTS/RTS | 2 St | ||
| Serial-ATA | S-ATA R3.0 (Interface) | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 90°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | COM Express Mini | ||
| Breite | 55 mm | |||
| Tiefe | 84 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| Kompatibilität | PICMG COM Express R3.0, Type 10 | |||
| RoHS konform | Ja | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
Gerne beraten wir Sie persönlich.
