COM-HPC
// COM HPC Client Size A
// [Intel Core Ultra 5 Prozessor 125H | Intel Core Ultra 5 Prozessor 125U | Intel Core Ultra 7 Processor 255H | Intel Core Ultra 7 Prozessor 155H | Intel Core Ultra 7 Prozessor 155U]
// 262 Pin SO-DIMM DDR5
// 1 x G-LAN
// 10 x USB (intern)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

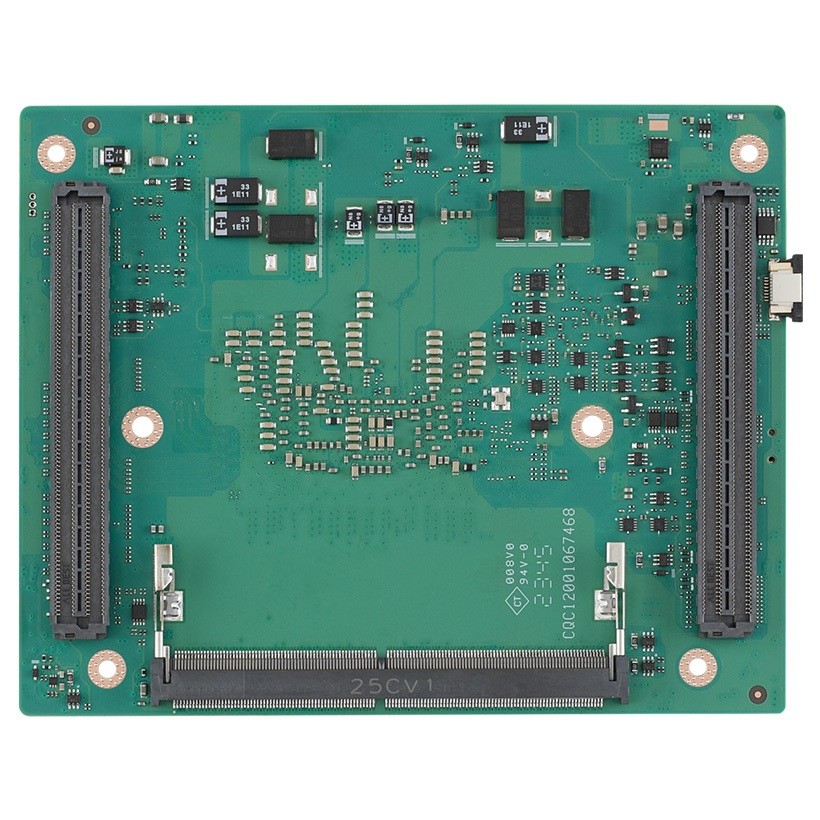

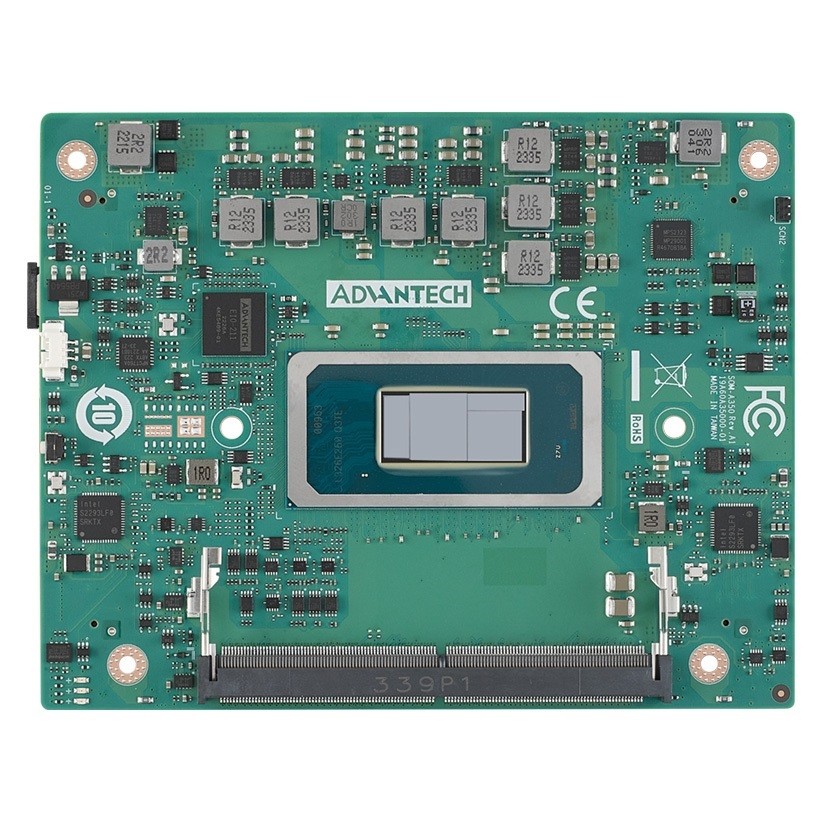

Basismodul: Advantech SOM-A350
Allgemein | ||||
SKU / Artikelnummer | SOM-A350 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Nummer | Intel Core Ultra 5 Prozessor 125H, Intel Core Ultra 5 Prozessor 125U, Intel Core Ultra 7 Processor 255H, Intel Core Ultra 7 Prozessor 155H, Intel Core Ultra 7 Prozessor 155U | |||
CPU Kerne | 12 St, 14 St, 16 St | |||
Threads | 14 St, 16 St, 18 St, 22 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,2 GHz, 1,3 GHz, 1,4 GHz, 1,7 GHz, 2 GHz | |||
Performance-core Max Turbo Frequenz | 4,3 GHz, 4,5 GHz, 4,8 GHz, 5,1 GHz | |||
Efficient-core Grundtaktfrequenz | 0,7 GHz, 0,8 GHz, 0,9 GHz, 1,2 GHz, 1,5 GHz | |||
Efficient-core Max Turbo Frequenz | 3,6 GHz, 3,8 GHz, 4,4 GHz | |||
Cache | 12 MB, 18 MB, 24 MB | |||
Thermal Design Power (TDP) | 28 W, 45 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 96 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel Arc 140T, Intel Arc Graphics, Intel Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.1 | |||
Displayport | Maximale Auflösung | 7680 x 4320 bei 60 Hz | ||
Version | 2.1 | |||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2400 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | Generation | 4 | ||
x1 Signal (Interface) | 4 St | |||
PCIe x4 | Generation | 4, - | ||
x4 Signal (Interface) | 2 St, 3 St, - | |||
PCIe x8 | Generation | 5, - | ||
x8 Signal (Interface) | 1 St, - | |||
PCIe Schnittstellen | 1x PCIe x8, 2x PCIe x4, 3x PCIe x4, 4x PCIe x1 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Interface | 8 St | |
USB v3.2 | Generation | Gen. 2 | ||
Interface | 2 St | |||
Seriell | RS-232 | Interface | 2 St | |
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
Serial-ATA | S-ATA R3.0 (Interface) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | COM HPC Client Size A | ||
Breite | 95 mm | |||
Tiefe | 120 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
RoHS konform | Ja |
