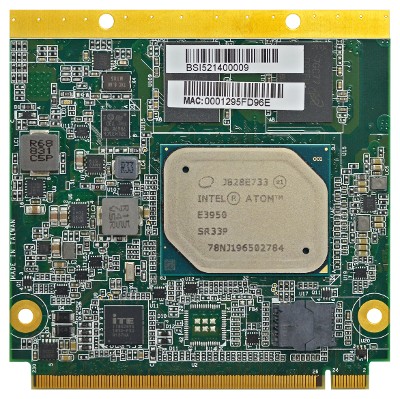

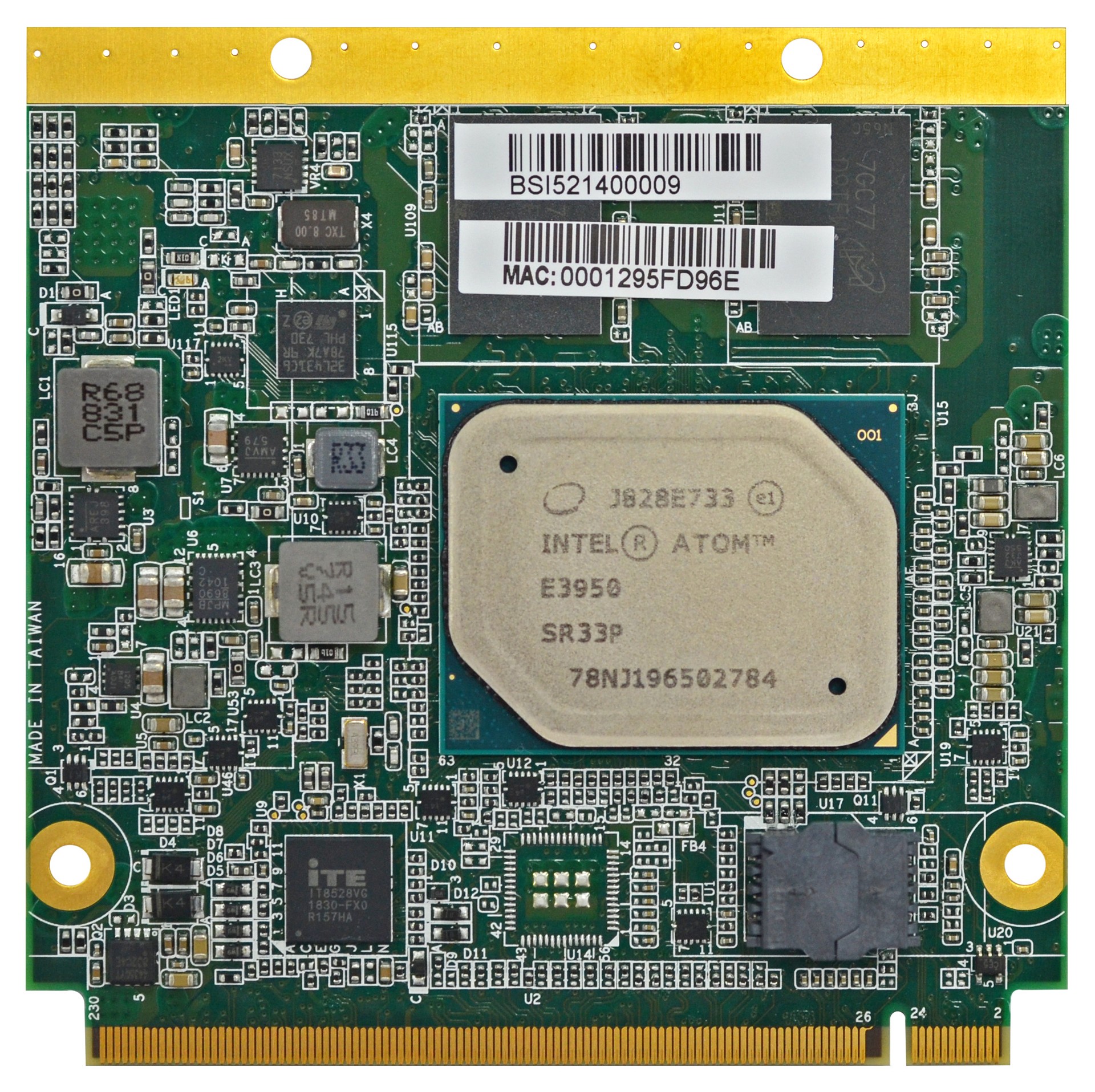

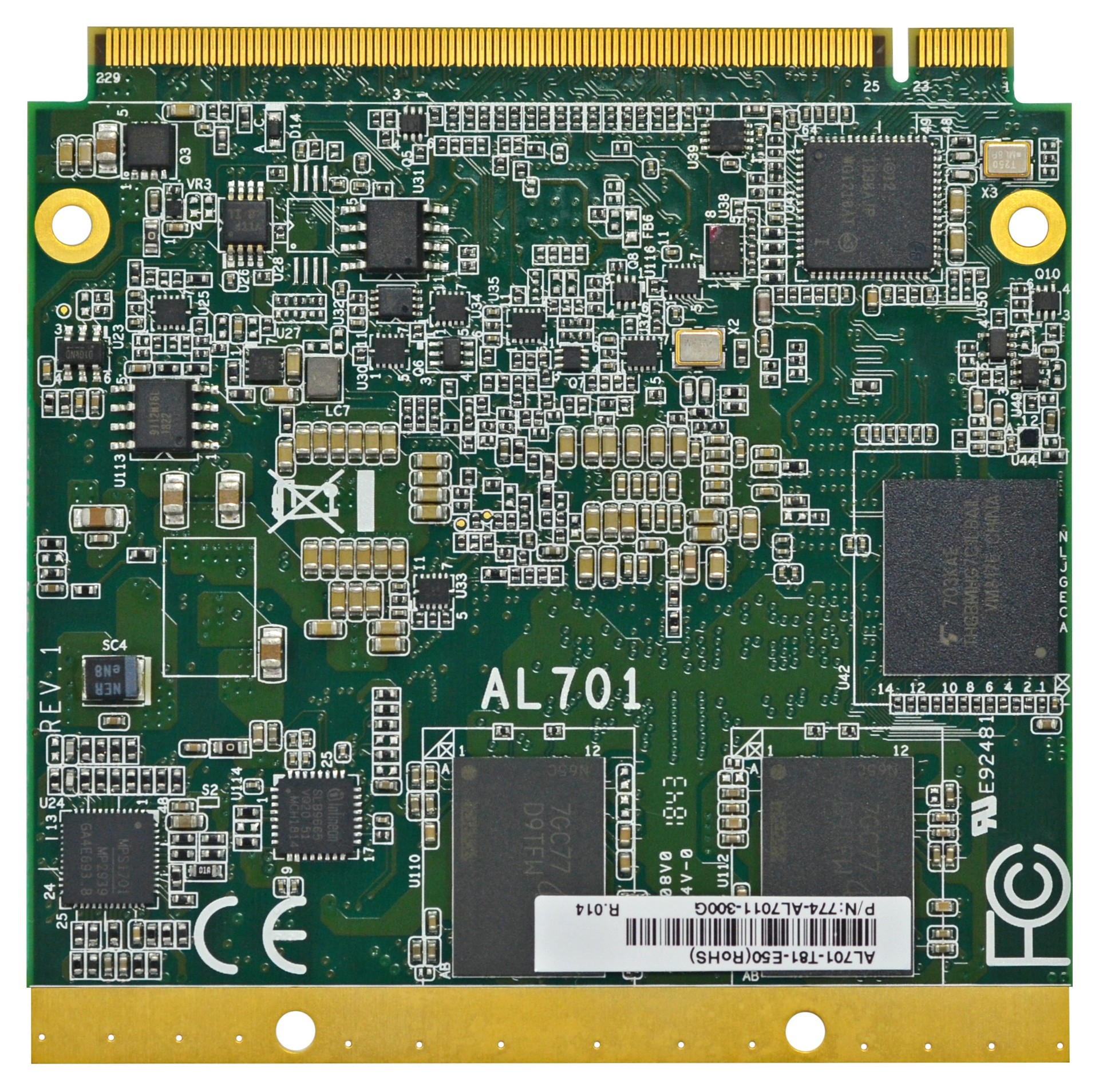

DFI AL701

AL701-B40-E30, AL701-B40-E40, AL701-T80-E50

Qseven (Q7)

PRODUKT-FEATURES

// Qseven (Q7)
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950]
// [4 GB | 8 GB]
// LVDS|DDI
// 1 x G-LAN
// 4 x PCIe x1

KONFIGURATION

Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration Individualkonfiguration

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: DFI AL701

Allgemein
SKU / ArtikelnummerAL701AL701-B40-E40, 770-AL7011-200G, AL701-T80-E50, 770-AL7011-300G, AL701-B40-E30, 770-AL7011-100G
Produktgrunddaten
HerstellerDFI
Produkt-ID770-AL7011-100G, 770-AL7011-200G, 770-AL7011-300G
System
ProzessorVertikales SegmentEmbedded
SerieIntel Apollo Lake
NummerIntel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950
CPU Kerne2 St, 4 St
Threads2 St, 4 St
SockelBGA 1296
Basis Frequenz1,3 GHz, 1,6 GHz
Cache2 MB
Thermal Design Power (TDP)6,5 W, 9,5 W, 12 W
SpeicherMemory TypeDDR4
Frequenz3200 MHz
Maximaler Ausbau8 GB
Speicher onBoard4 GB, 8 GB
BIOSAMI UEFI 128 Mbit SPI
Grafik
ProzessorIntel HD Graphics Generation 9
LeistungsmerkmalUnterstützungDirectX 12, OpenCL 2.1, OpenGL 5.0
HW DecodeAVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, MVC, VC1 / WMV9, VP 8, VP 9
HW EncodeAVC / H.264, HEVC / H265, JPEG, VP 8, VP 9
Bildschirme (Multidisplay)2 Displays
LVDSMaximale Auflösung1920 x 1200 bei 60 Hz
Bits24 Bit
BridgeNXP PTN3460
DDI (Digital Display Interfaces)DP++Maximale Auflösung4096 x 2160 bei 60 Hz
HDMIMaximale Auflösung3840 x 2160 bei 30 Hz
Erweiterung
PCIe x1Generation2
x1 Signal (Interface)4 St
PCIe Schnittstellen4x PCIe x1
Netzwerk
G-LANControllerChipsatzIntel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps)
Anzahl1 St
Netzwerk1x G-LAN
Externe I/O
EthernetInterface1 St
Interne I/O
AnzeigeLVDSDual Channel
LVDS Interface1 St
DDI Interface1 St
SMBus1 St
LPC1 St
I²C1 St
UARTTx/Rx/CTS/RTS1 St
Serial-ATAS-ATA R3.0 (Interface)2 St
Sicherheit
Trusted Platform Modul (TPM)fTPM 2.0 (Firmware Simulation)
Stromversorgung
Typ (Eingang)DCBereichVCC_RTC (3V), Standby (5V), 5V
AnschlussCOM Express Anschluss (220 Pins, Row A +B)
Stromversorgung - EingangDC: VCC_RTC (3V), Standby (5V), 5V
Betriebssysteme / Software
Windows EmbeddedWindows 10 Enterprise IoT LTSB (2016)wird unterstützt
Unterstützte BSWindows Embedded
Mechanik / Umgebung
TemperaturBetrieb0° bis 60°C, -40° bis 85°C
Lagerung-40° bis 85°C
Relative LuftfeuchtigkeitBetrieb5 bis 90%, nicht kondensierend
Lagerung5 bis 90%, nicht kondensierend
AbmaßeFormfaktorQseven (Q7)
Breite70 mm
Tiefe70 mm
Zertifikate / Konformitäten
CEJa
FCCClass BJa
Weitere Zertifikate / KonformitätenUKCA
KompatibilitätQseven (Q7) Spezifikation Revision 2.1
RoHS konformJa
Lebenszyklus
ProduktionsstartQ3/2020
Voraussichtlich bisQ1/2032
Herstellergarantie
Herstellergarantie2 Jahre
