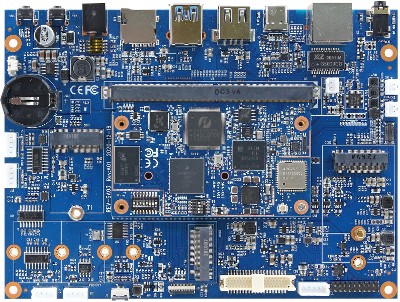

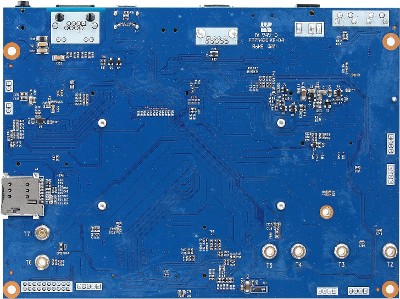

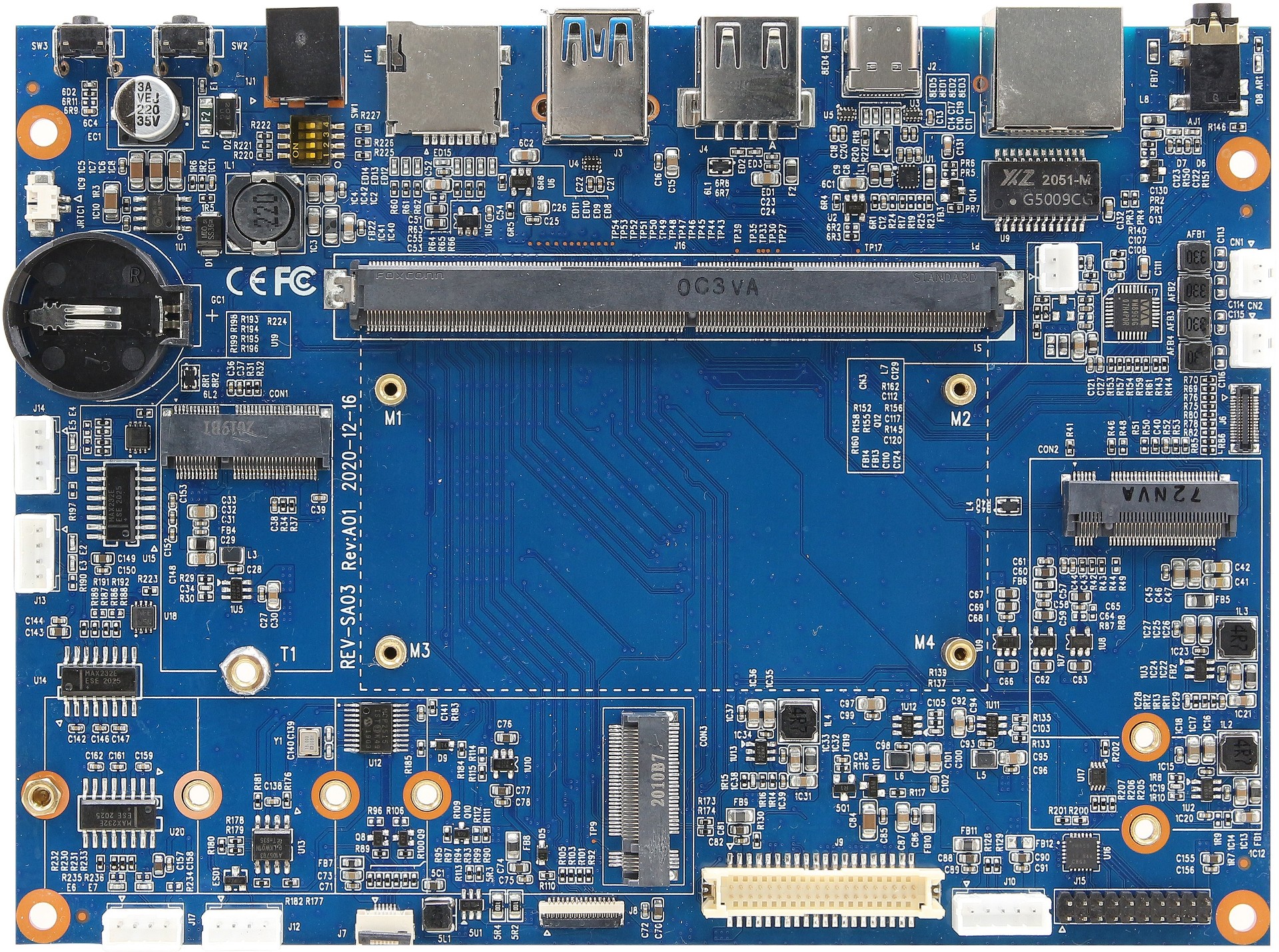

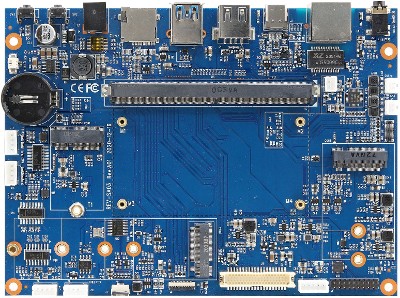

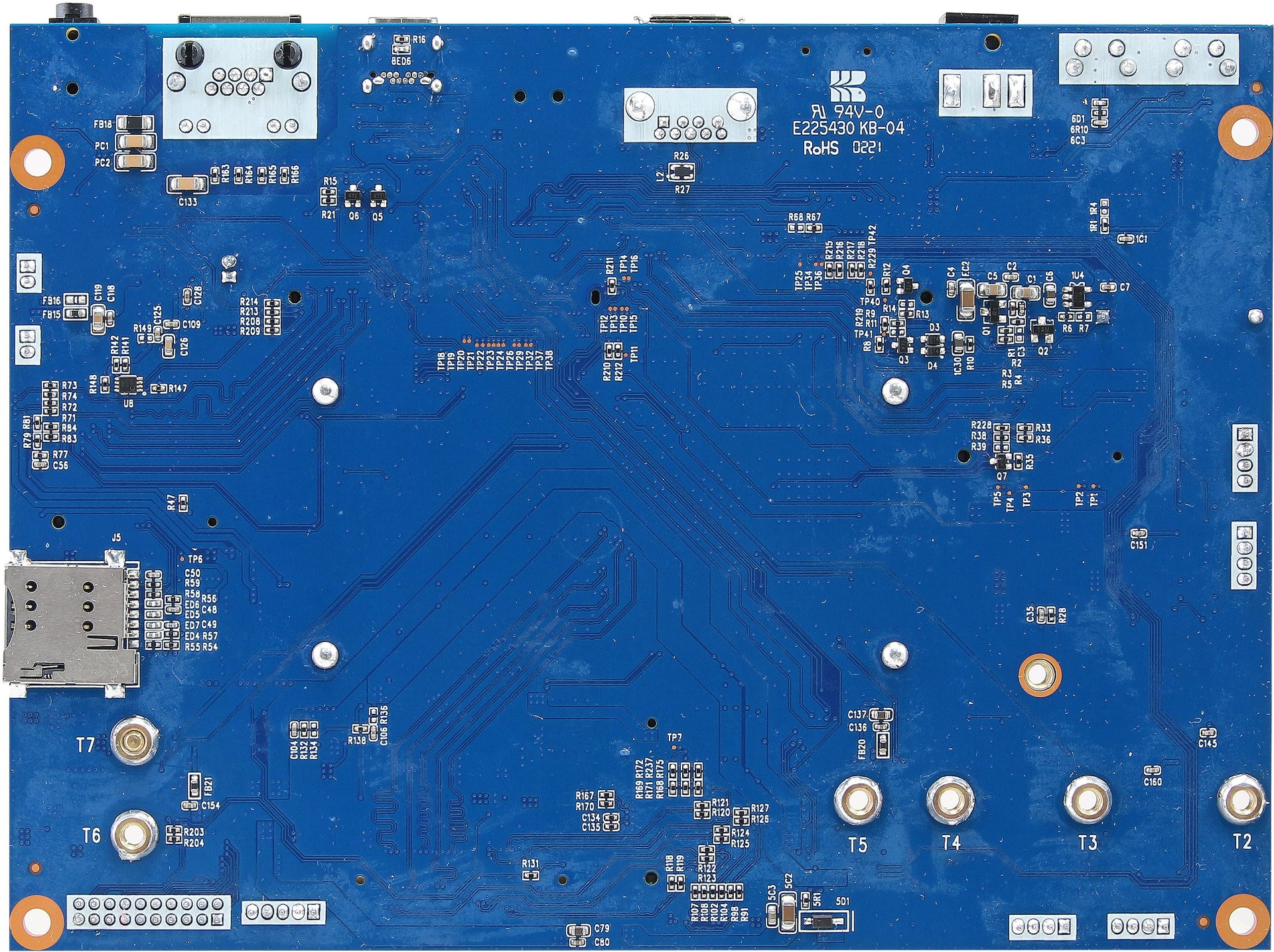

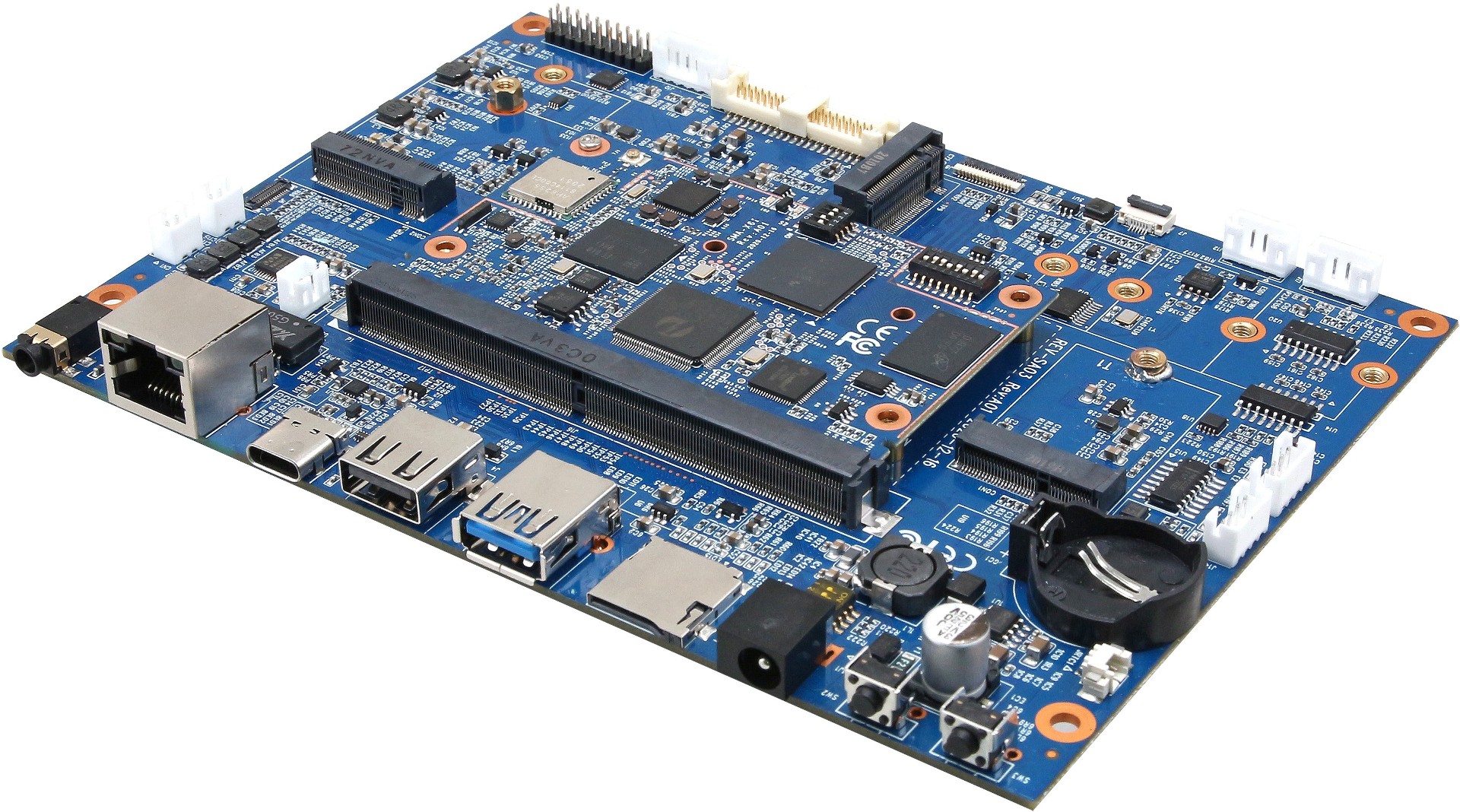

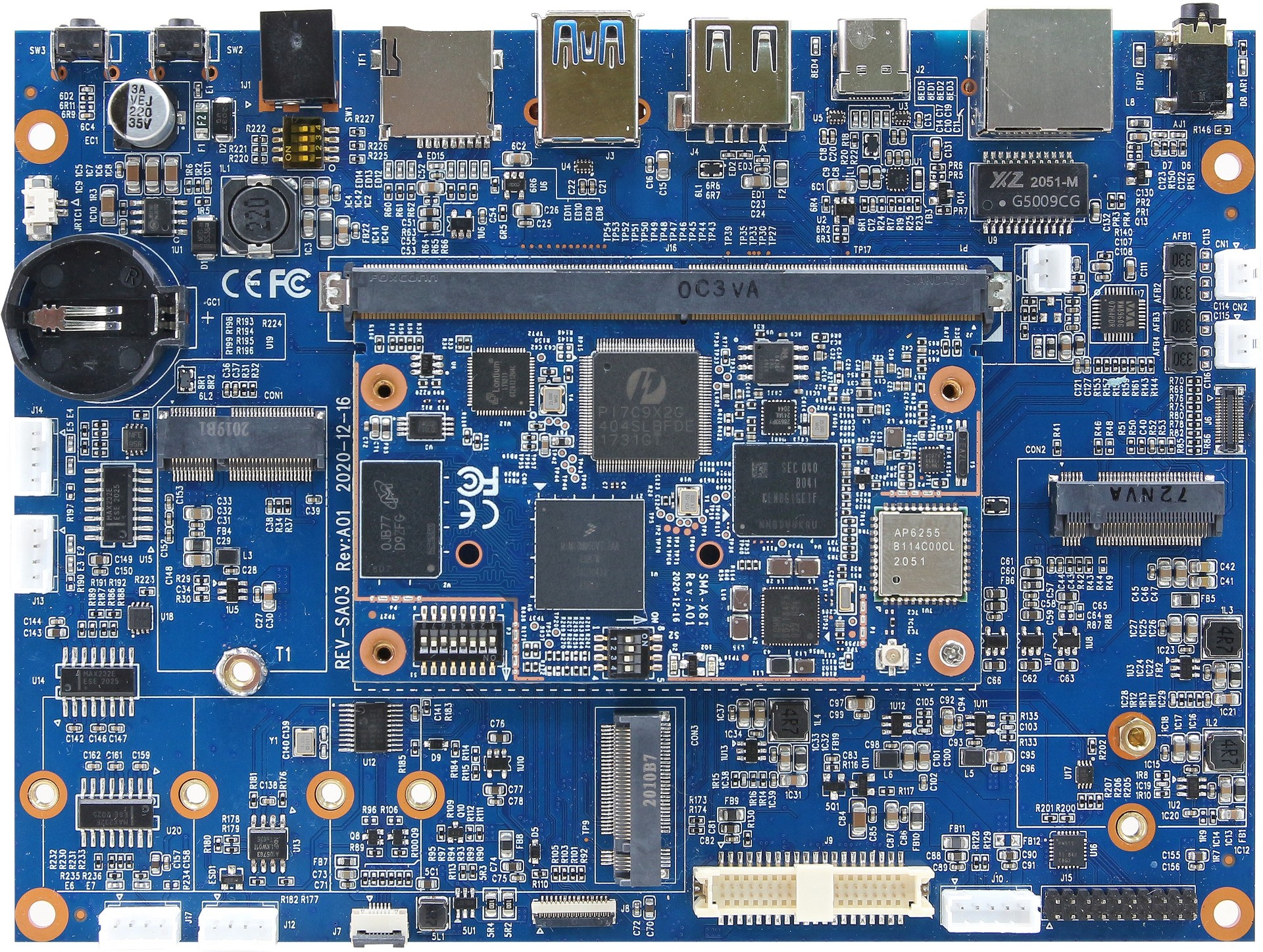

SMARC Carrier Board
// SMARC Carrier Board
// 1 x G-LAN
// 3 x USB
// 1 x CAN Bus
// Digital I/O (16-Bit)
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: BCM REV-SA03
Allgemein | ||||
SKU / Artikelnummer | REV-SA03 | |||
Produktgrunddaten | ||||
Hersteller | BCM | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 2230, 2242 | |||
Slot 3 | Key ID | M | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 2230, 2242, 2260, 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Formfaktor (Slot) | Micro SIM | ||
Storage | Micro-SD | |||
Audio | ||||
Chipsatz | Wolfson WM8960 | |||
Netzwerk | ||||
G-LAN | Controller | Anzahl | 1 St | |
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 1 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.0 | 1 St | |||
USB v3.0 (Type C) | 1 St | |||
Audio | Line-Out | 1 St | ||
Interne I/O | ||||
Anzeige | LVDS Interface | 1 St | ||
Digital I/O | Bits | 16-Bit | 1 St | |
I²C | 1 St | |||
UART | Tx/Rx/CTS/RTS | 3 St | ||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
MIPI-DSI (Display Serial Interface) | 1 St | |||
CAN Bus | Version 2.0B (Interface) | 1 St | ||
Audio | Line-Out | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Breite | 165 mm | ||
Tiefe | 120 mm | |||
Gewicht | 130 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
