SMARC
// SMARC
// NXP i.MX 8M Quad Plus Lite
// 3 GB
// LVDS
// 2 x USB (internal)
// 2 x CAN Bus [CAN-FD]
// 16 GB eMMC
// Digital I/O (12-Bit)
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

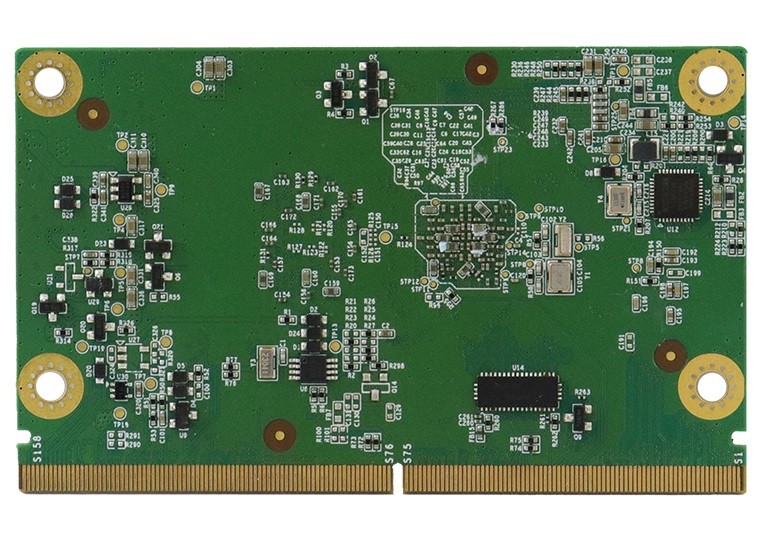

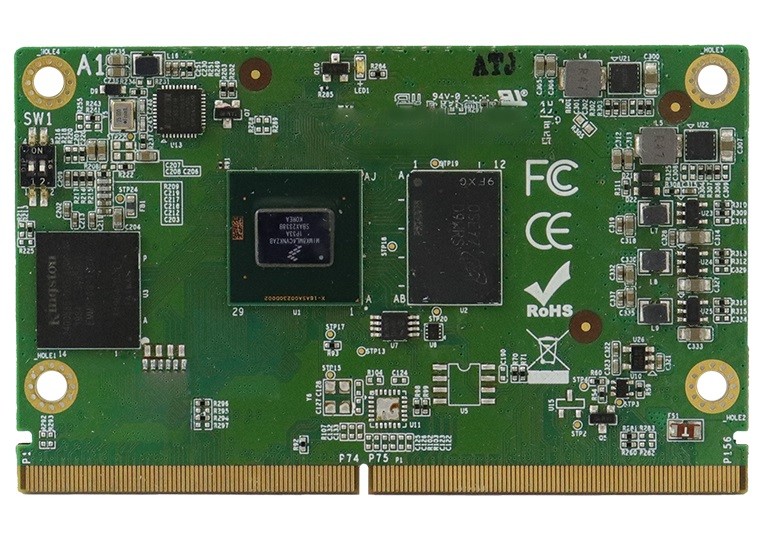

Basismodul: IBASE RM-N8MPL
Allgemein | ||||
SKU / Artikelnummer | RM-N8MPL | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Serie | ARM Cortex-A53 | ||
Nummer | NXP i.MX 8M Quad Plus Lite | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 3 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
Grafik | ||||
Prozessor | Vivante GC7000UL | |||
HDMI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Interne I/O | ||||
USB | USBOTG (USB On-The-Go) | Interface | 2 St | |
Digital I/O | Bits | 12-Bit | 1 St | |
Serial Peripheral Interface (SPI) | 2 St | |||
I²C | 4 St | |||
UART | Tx/Rx | 4 St | ||
Image Capture Interfaces | MIPI-DSI (Display Serial Interface) | 4 St | ||
CAN Bus | Version 2.0B (Interface) | 2 St | ||
Protokoll | CAN-FD | |||
Audio | I²S | 1 St | ||
Betriebssysteme / Software | ||||
Linux | Distribution | Yocto 4.0 | ||
Android | Release | 11 | ||
Unterstützte BS | Linux, Android | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | SMARC | ||
Breite | 82 mm | |||
Tiefe | 50 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Kompatibilität | SMARC Spezifikation Revision 2.1 | |||
RoHS konform | Ja |
