SMARC
// SMARC
// Qualcomm QCS610
// 4 GB
// 1 x G-LAN
// 4 x USB (internal)
// 32 GB eMMC
// Digital I/O (12-Bit)
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

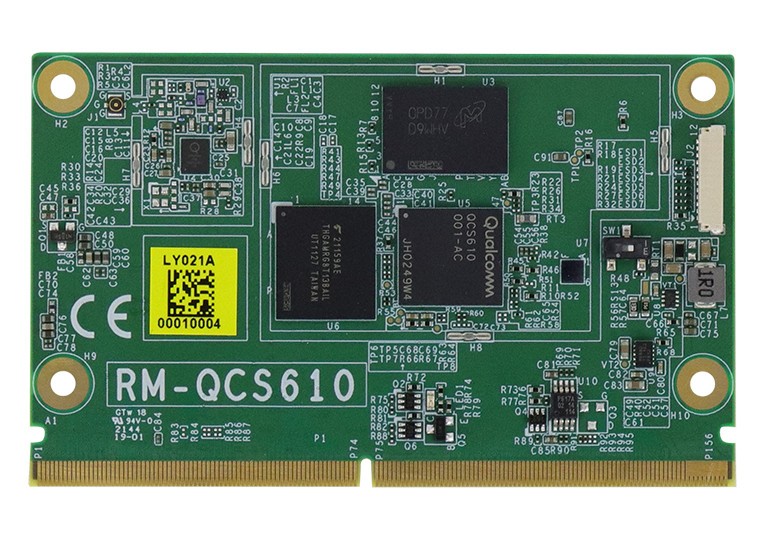

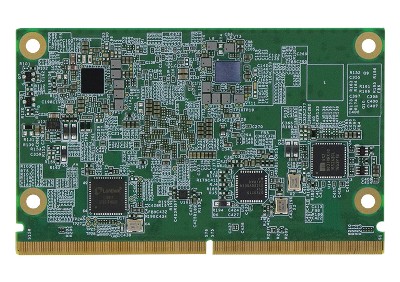

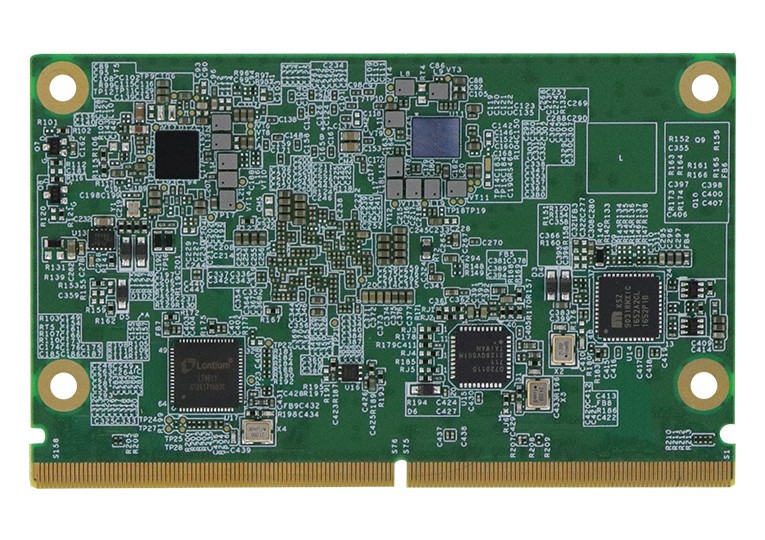

Basismodul: IBASE RM-QCS610
Allgemein | ||||
SKU / Artikelnummer | RM-QCS610 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Nummer | Qualcomm QCS610 | ||
CPU Kerne | 10 St | |||
Basis Frequenz | 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 2,2 GHz | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Grafik | ||||
Prozessor | Qualcomm Adreno 612 | |||
Leistungsmerkmal | HW Decode | AVC / H.264, HEVC / H.265, VP 8, VP 9 | ||
HW Encode | AVC / H.264, HEVC / H265, VP 8, VP 9 | |||
Performance | TOPS (INT8) | 3,15 | ||
HDMI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Externe I/O | ||||
Ethernet | Interface | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 3 St | |
USB v3.0 | Interface | 1 St | ||
Digital I/O | Bits | 12-Bit | 1 St | |
Serial Peripheral Interface (SPI) | 2 St | |||
I²C | 4 St | |||
UART | Tx/Rx | 4 St | ||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Lanes | 2 St | |||
Kamera Eingang 2 | MIPI-CSI (Camera Serial Interface) | 1 St | ||
Lanes | 4 St | |||
MIPI-DSI (Display Serial Interface) | 1 St | |||
Audio | I²S | 1 St | ||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 14.04 | ||
Android | Release | 10 | ||
Unterstützte BS | Linux, Android | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -30° bis 80°C | ||
Lagerung | -30° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | SMARC | ||
Breite | 82 mm | |||
Tiefe | 50 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Kompatibilität | SMARC Spezifikation Revision 2.1 | |||
RoHS konform | Ja |
