Smart Display Module (SDM)
// SDM
// [Intel Celeron G4930E | Intel Core i3-8100H | Intel Core i5-8400H]
// 260 Pin SO-DIMM DDR4
// 1 x G-LAN
// 4 x USB
// 1 x USB (internal)
// 1 x Seriell I/O
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

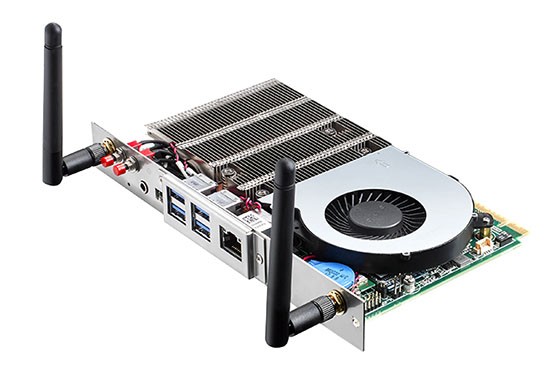

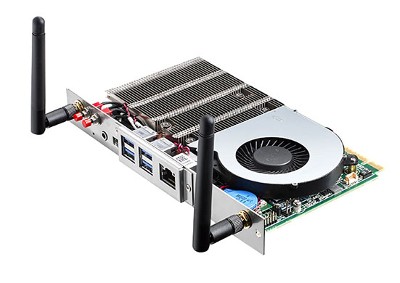

Basismodul: Advantech DS-200
Allgemein | ||||
SKU / Artikelnummer | DS-200 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Nummer | Intel Celeron G4930E, Intel Core i3-8100H, Intel Core i5-8400H | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St, 8 St | |||
Sockel | BGA 1440 | |||
Basis Frequenz | 2,4 GHz, 2,5 GHz, - | |||
Max. Turbo-Taktfrequenz | 2,4 GHz, 3 GHz, 4,2 GHz | |||
Cache | 2 MB, 6 MB, 8 MB | |||
Thermal Design Power (TDP) | 35 W, 45 W | |||
Chipsatz | Intel QM370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | AMI UEFI 128 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 630 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Version | 1.2 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Externe I/O | ||||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.1 Gen. 2 | 4 St | ||
Anzeige | Mini-DP++ | 1 St | ||
Audio | Combo Jack | 1 St | ||
Interne I/O | ||||
USB | USB v3.1 | Interface | 1 St | |
Seriell | RS-232 | Interface | 1 St | |
Anzeige | Display Port Interface | 1 St | ||
HDMI Interface | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 1 St | |
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 55°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | SDM | ||
Interface | PCI Express x 8 | |||
Breite | 175 mm | |||
Tiefe | 100 mm | |||
Höhe | 20 mm | |||
Gewicht | 1000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Antennenlöcher | 2 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
