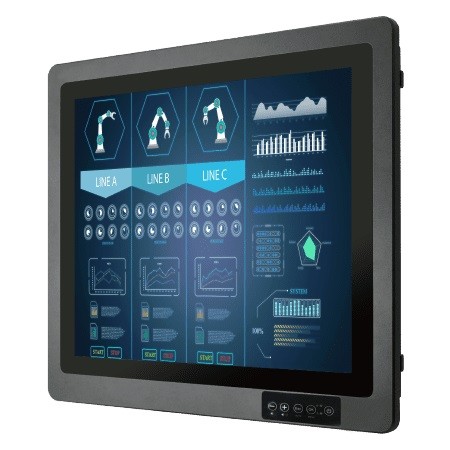

Industrial Panel Mount Display
// 19" TFT-LCD
// Touchscreen (Kapazitiv)
// IP67
// 1 x USB (Back side)
// Power Supply DC Wide range 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate R19L100-67FTP(HB)
Allgemein | ||||
SKU / Artikelnummer | R19L100-67FTP(HB) | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
Display | ||||
Display Type | 19" TFT-LCD | |||
Max. Auflösung | 1280 x 1024 | |||
Seitenverhältnis | 5 : 4 | |||
Max. Farben | 16,7M | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 80 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Interface | RS-232 / USB | |||
Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
USB | USB v2.0 (M12) | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | M12 | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 19" | ||
Breite | 474 mm | |||
Tiefe | 111 mm | |||
Höhe | 410 mm | |||
Schutzart (IP) | IP67 | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Gewicht | 9800 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
System Status | 1 St | |||
Farbe | Dunkel Grau | |||
Material | Aluminium | |||
Montageoption | Panelmontage, VESA | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
