ATX Mainboards
// ATX Industrie-Mainboards
// LGA 1151 (H4)
// Intel Q370
// 288 Pin DIMM DDR4
// 2 x G-LAN (Back side)
// 8 x USB (Back side)
// 4 x USB (internal)
// 5 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCI
// 4 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

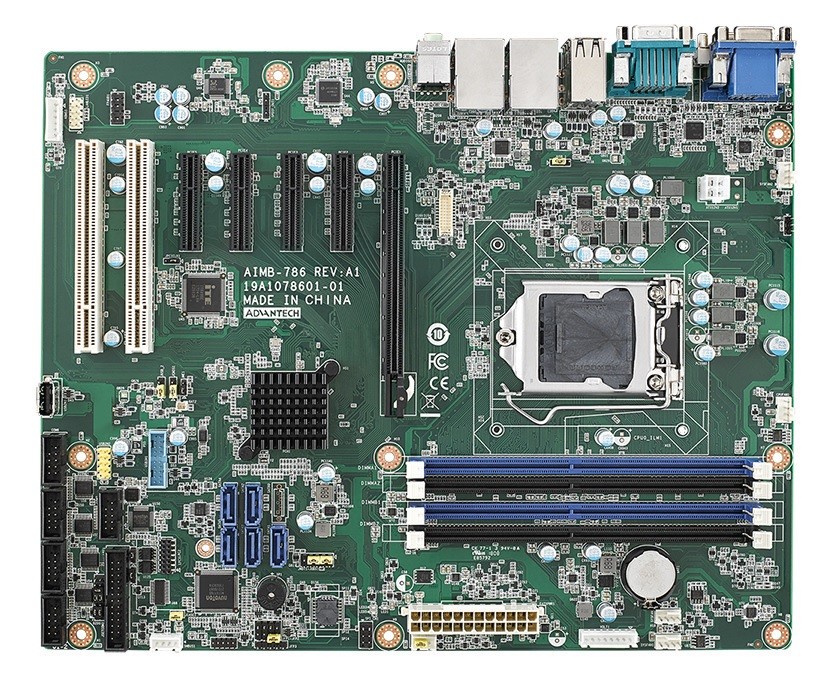

Basismodul: Advantech AIMB-786
Allgemein | ||||
SKU / Artikelnummer | AIMB-786 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | AIMB-786G2-00A3 | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel Q370 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI SPI 256 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6776D | |
Controller 2 | I/O Controller | Nuvoton NCT5114D | ||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCI | Anzahl | 2 St | ||
PCI Schnittstellen | 2x PCI | |||
PCIe x4 | Generation | 3 | ||
x4 Signal | 4 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 4x PCIe x4, 1x PCIe x16 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

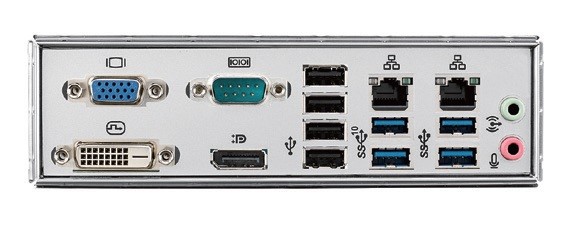

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
DVI | DVI-D Signal | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 4 St | ||
USB v3.1 Gen. 1 | 2 St | |||
USB v3.1 Gen. 2 | 2 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.1 | Key-A Header (20-Pin) | 1 St | ||
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | ||
Anzeige | Display Port (Golden Finger) | 1 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 5 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Intel PTT (wie TPM 2.0) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC), 24-Pin ATX | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | ATX | ||
Breite | 304,8 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
