ATX Mainboards
Produkt ist EOL (End Of Life)!
// ATX Industrie-Mainboards
// LGA 1200 (H5)
// Intel W480E
// 288 Pin DIMM DDR4
// 3 x G-LAN (Back side)
// 8 x USB (Back side)
// 6 x USB (internal)
// 9 x Seriell I/O
// Digital I/O (16-Bit)
// 4 x PCIe x4
// 2 x PCIe x16
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

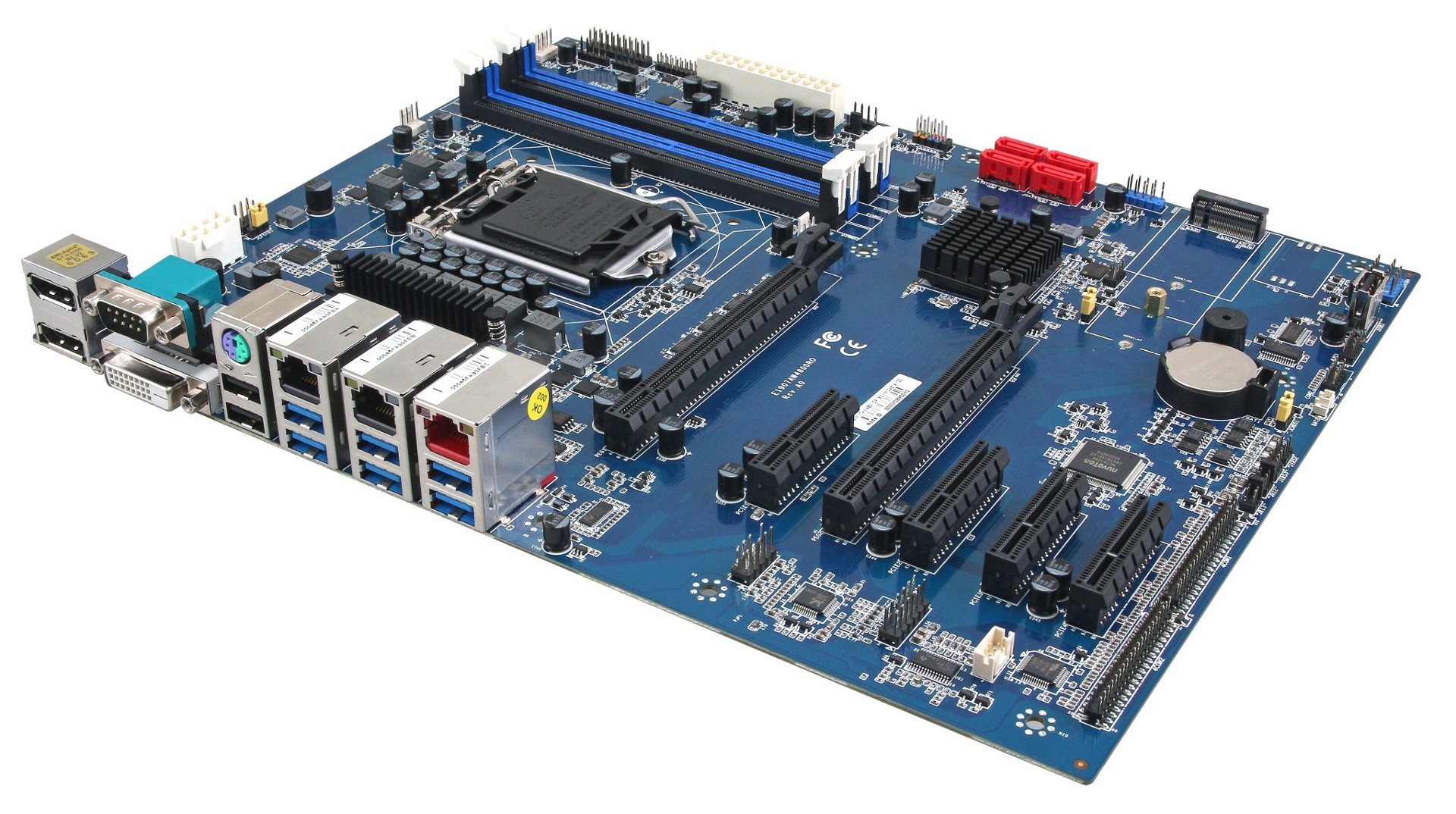

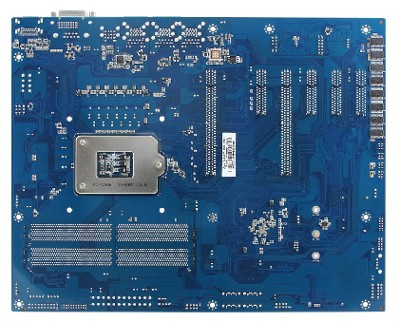

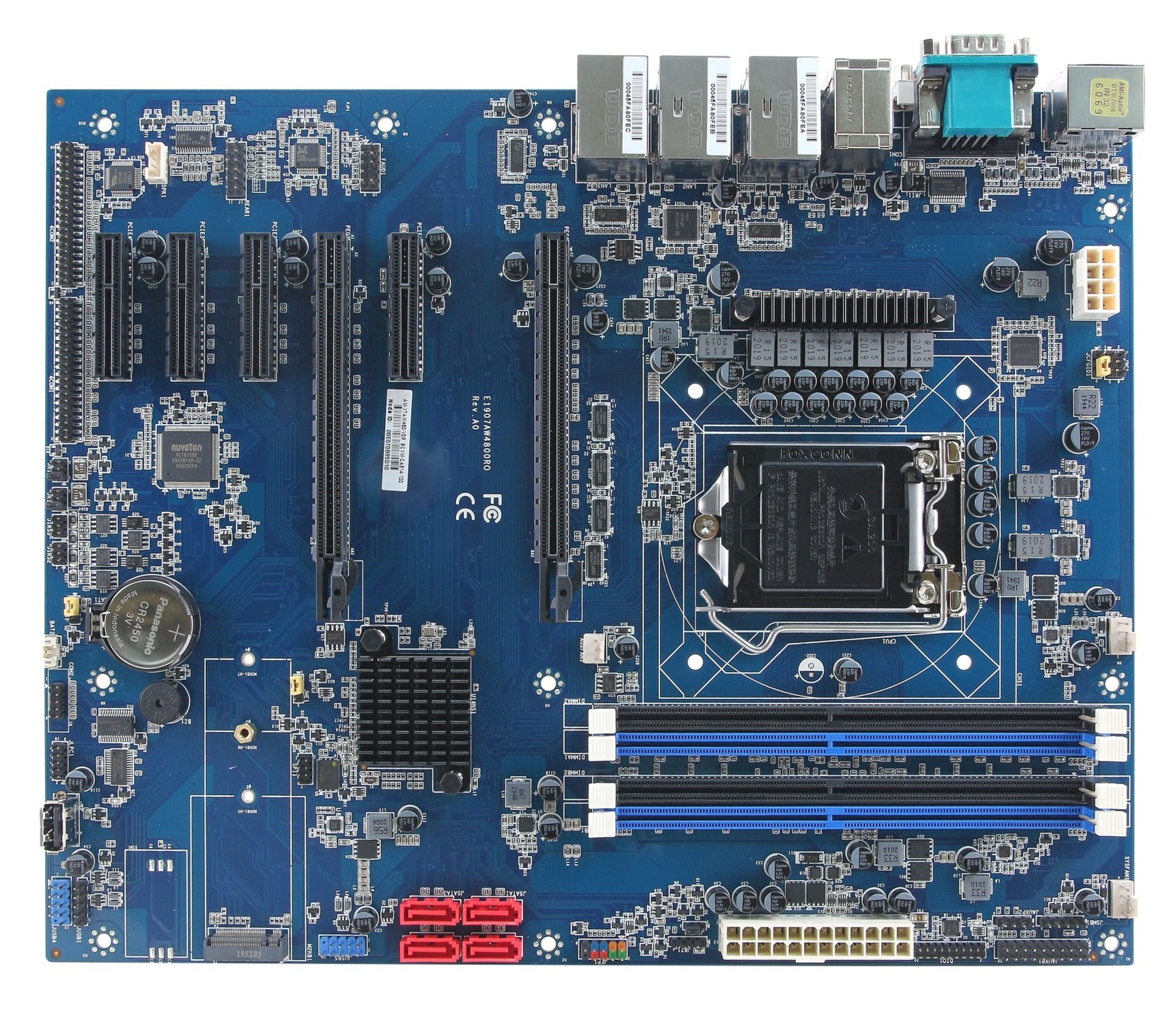

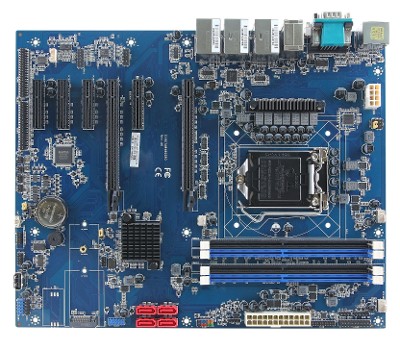

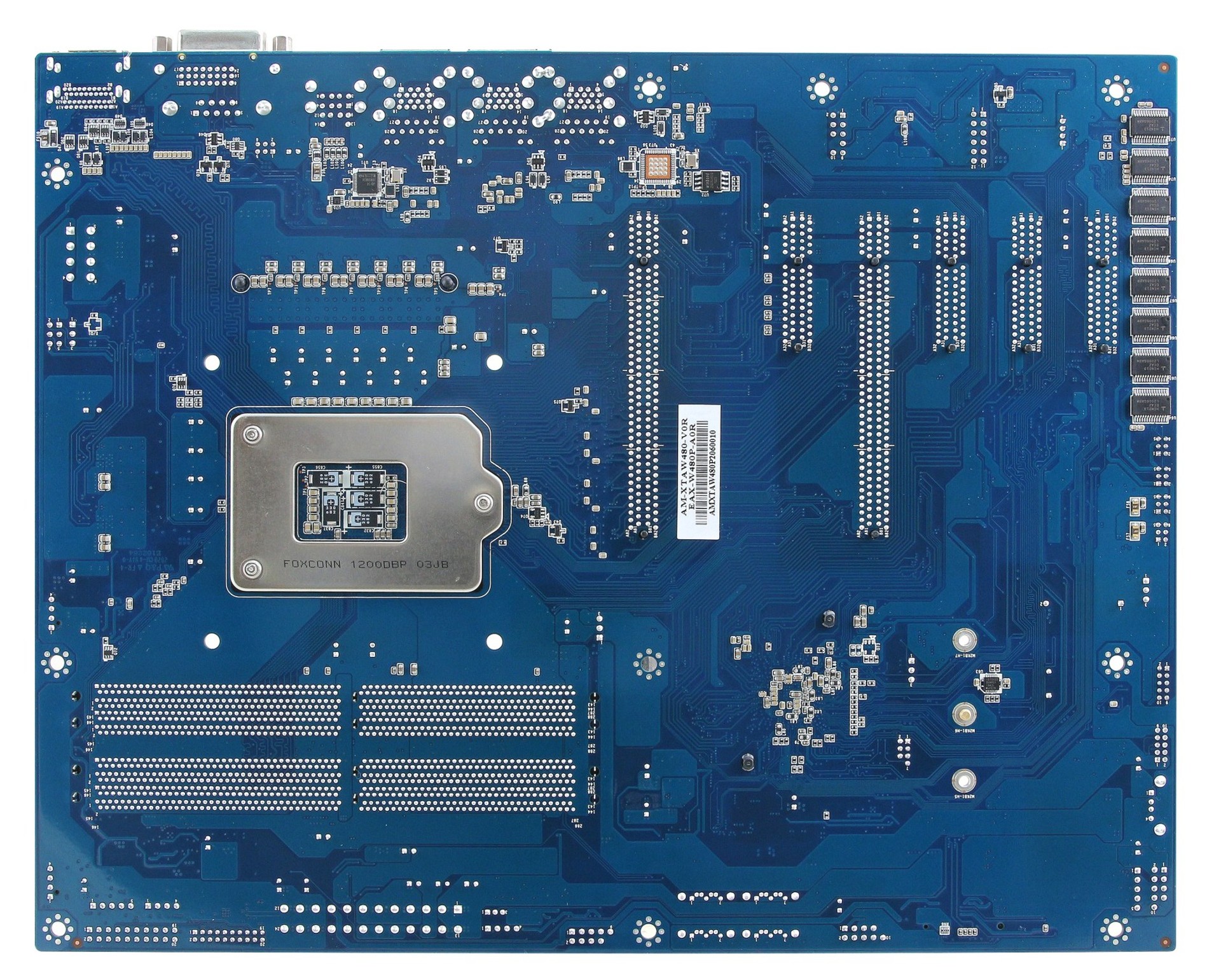

Basismodul: Avalue EAX-W480P-A1R
Allgemein | ||||
SKU / Artikelnummer | EAX-W480P-A1R | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Comet Lake | ||
Sockel | LGA 1200 (H5) | |||
Thermal Design Power (TDP) | 125 W | |||
Chipsatz | Intel W480E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 2666 / 2933 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6106D | |
Controller 2 | I/O Controller | Fintek F81216AD | ||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
DVI | Maximale Auflösung | 2048 x 1536 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | x4 Signal | 4 St | ||
PCIe x16 | x8 Signal | Anzahl | 2 St | |
PCIe Schnittstellen | 4x PCIe x4, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 3) | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I225V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||

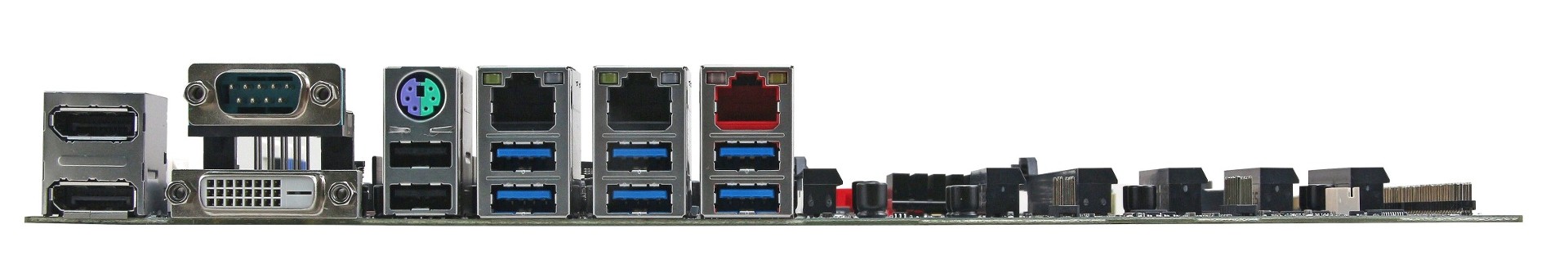

Externe I/O (Rückseite) | ||||
Anzeige | DVI | DVI-D Signal | 1 St | |
DP++ | 2 St | |||
Ethernet | RJ-45 | 3 St | ||
PS/2 | mini-DIN-6 | 1 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USB v3.1 Gen. 2 | 6 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 5 St | |
Ports (Typ-A-Buchse) | 1 St | |||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 7 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | ATX | ||
Breite | 304,8 mm | |||
Tiefe | 243,84 mm | |||
Gewicht | 600 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
