ATX Mainboards
// ATX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel H310 | Intel Q370]
// 288 Pin DIMM DDR4
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// [4 | 6] x USB (internal)
// 5 x Seriell I/O
// Digital I/O (16-Bit)
// 5 x PCI
// 1 x PCIe x4
// 1 x PCIe x16
// [0 | 1] x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

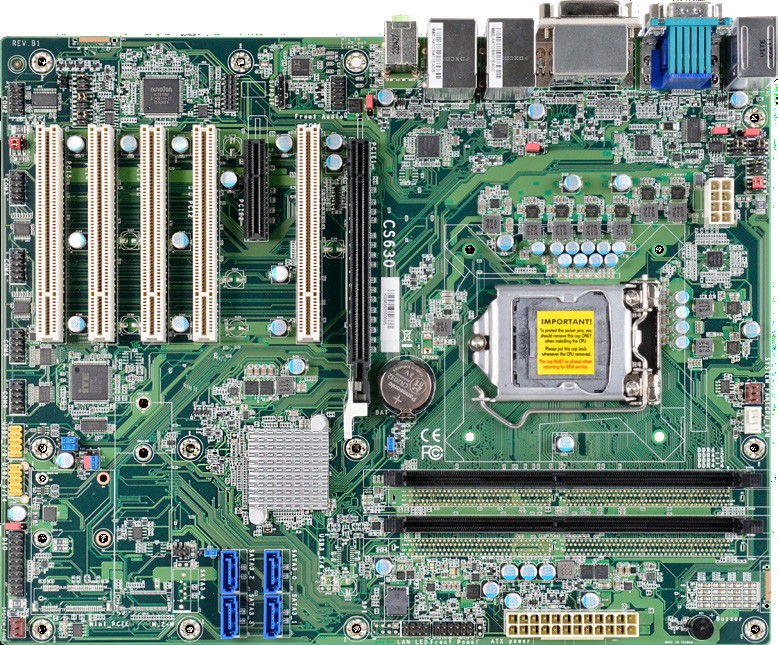

Basismodul: DFI CS630
Allgemein | ||||
SKU / Artikelnummer | CS630 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-CS6305-000G, 770-CS6305-100G, 770-CS6305-200G, 770-CS6305-300G | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 95 W | |||
Chipsatz | Intel H310, Intel Q370 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St, 4 St | |||
Maximaler Ausbau | 64 GB, 128 GB | |||
BIOS | AMI SPI 128 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT88892/8209 | |
Grafik | ||||
Prozessor | Intel HD Graphics Generation 9 | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 2 Displays, 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCI | Anzahl | 5 St | ||
PCI Schnittstellen | 5x PCI | |||
PCIe x4 | Generation | 2, 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St, - | |
mSATA Unterstützung | -, Ja | |||
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2260, 2280 | |||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 12.0, - | |||
Netzwerk | 2x G-LAN | |||

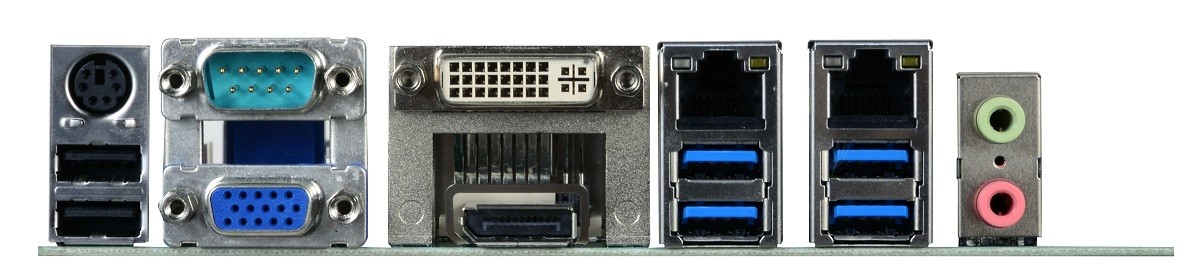

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
DVI | DVI-D Signal | 1 St | ||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
PS/2 | mini-DIN-6 | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USB v3.1 Gen. 1 | 4 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
USB v3.1 | Ports (2.00 mm Pitch) | 2 St, - | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | ||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St, 5 St | ||
Raid Unterstützung | RAID 0/1/5/10 | -, wird unterstützt | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | -, dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -30° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | ATX | ||
Breite | 305 mm | |||
Tiefe | 244 mm | |||
MTBF | MTBF 25°C | 534.806 h | ||
Berechnungsmodell | Telcordia Issue 4 | |||
Umgebung | GB, GC – Ground Benign, Controlled | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | KC, UKCA | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q2/2019 | |||
Voraussichtlich bis | Q1/2033 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
