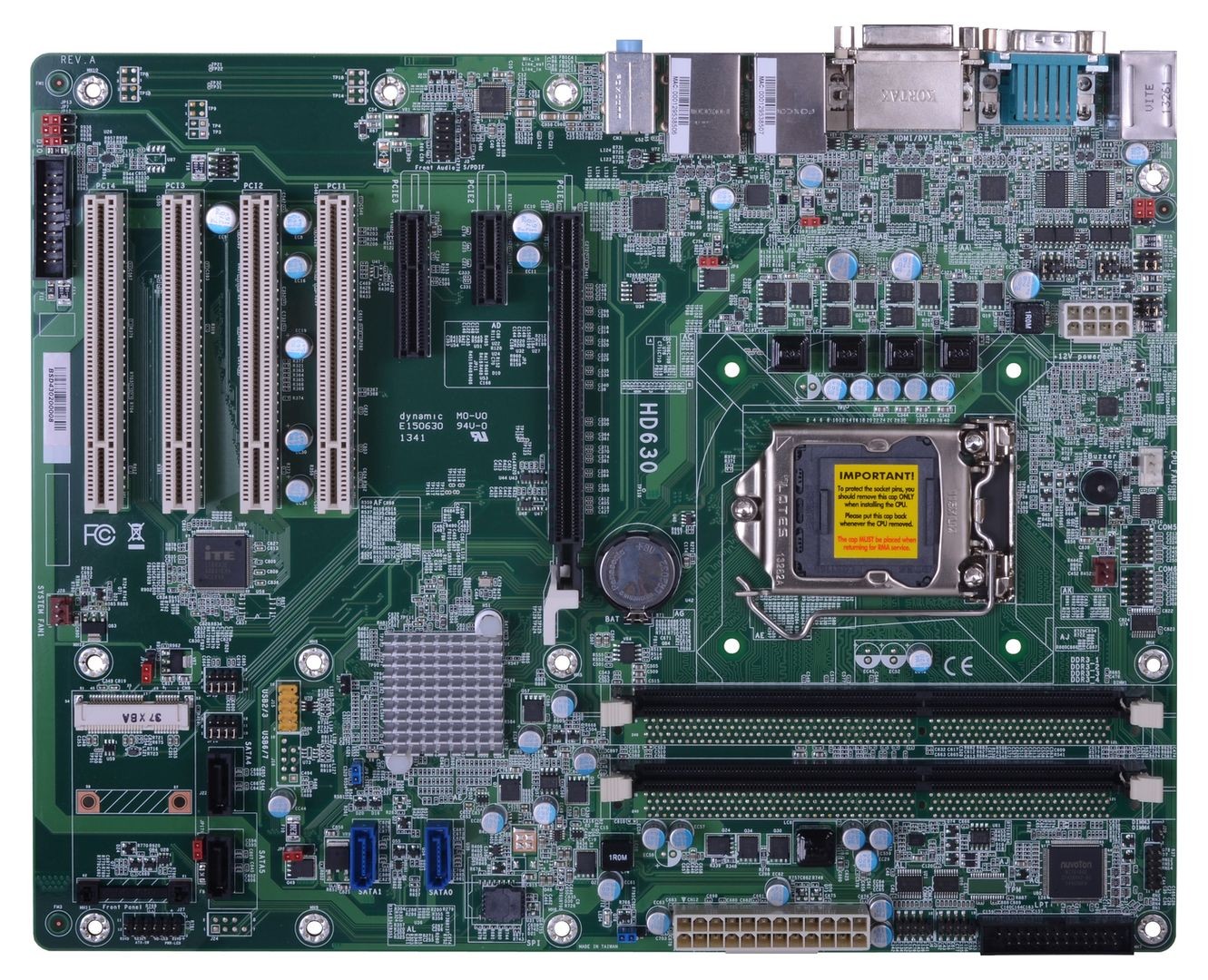

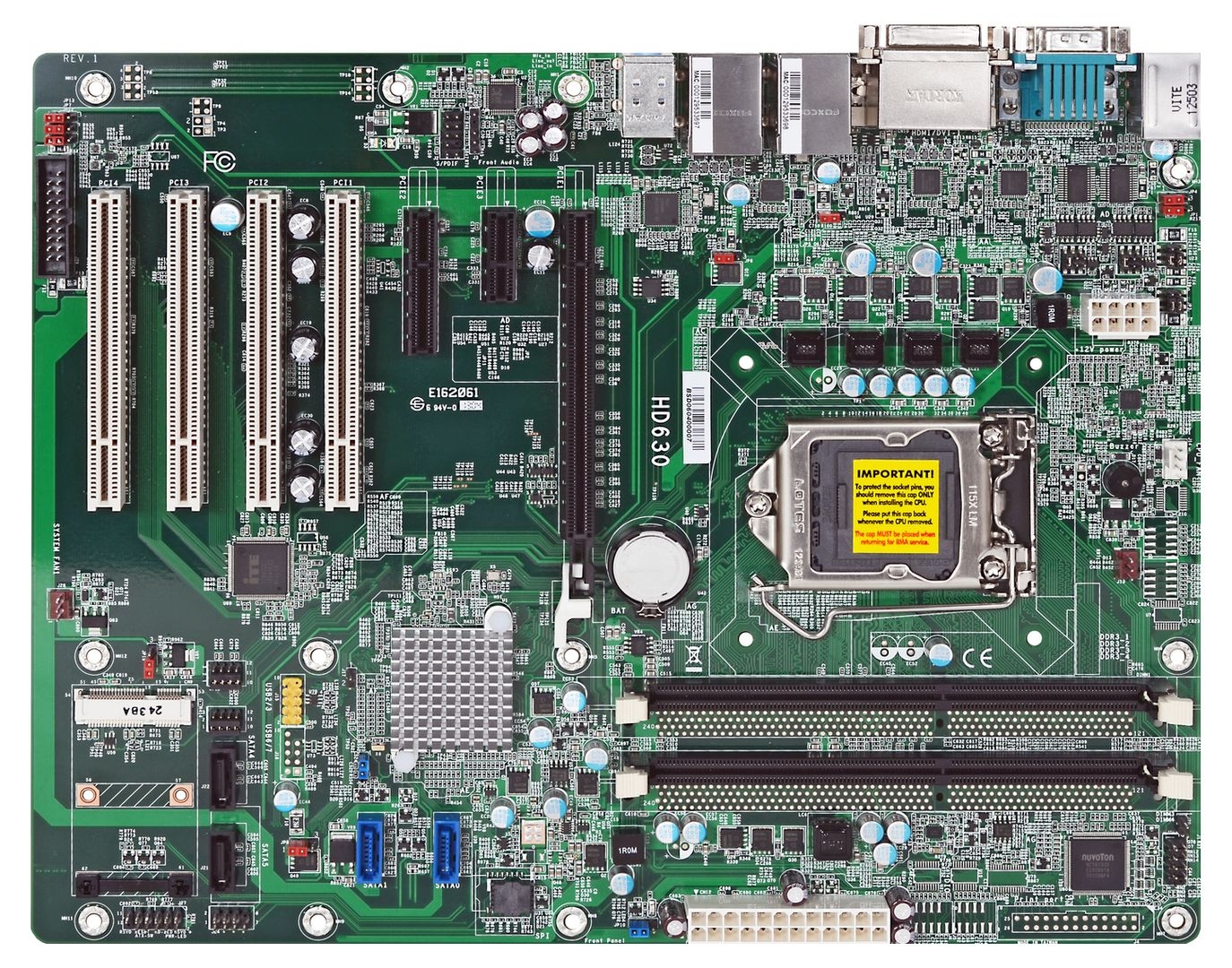

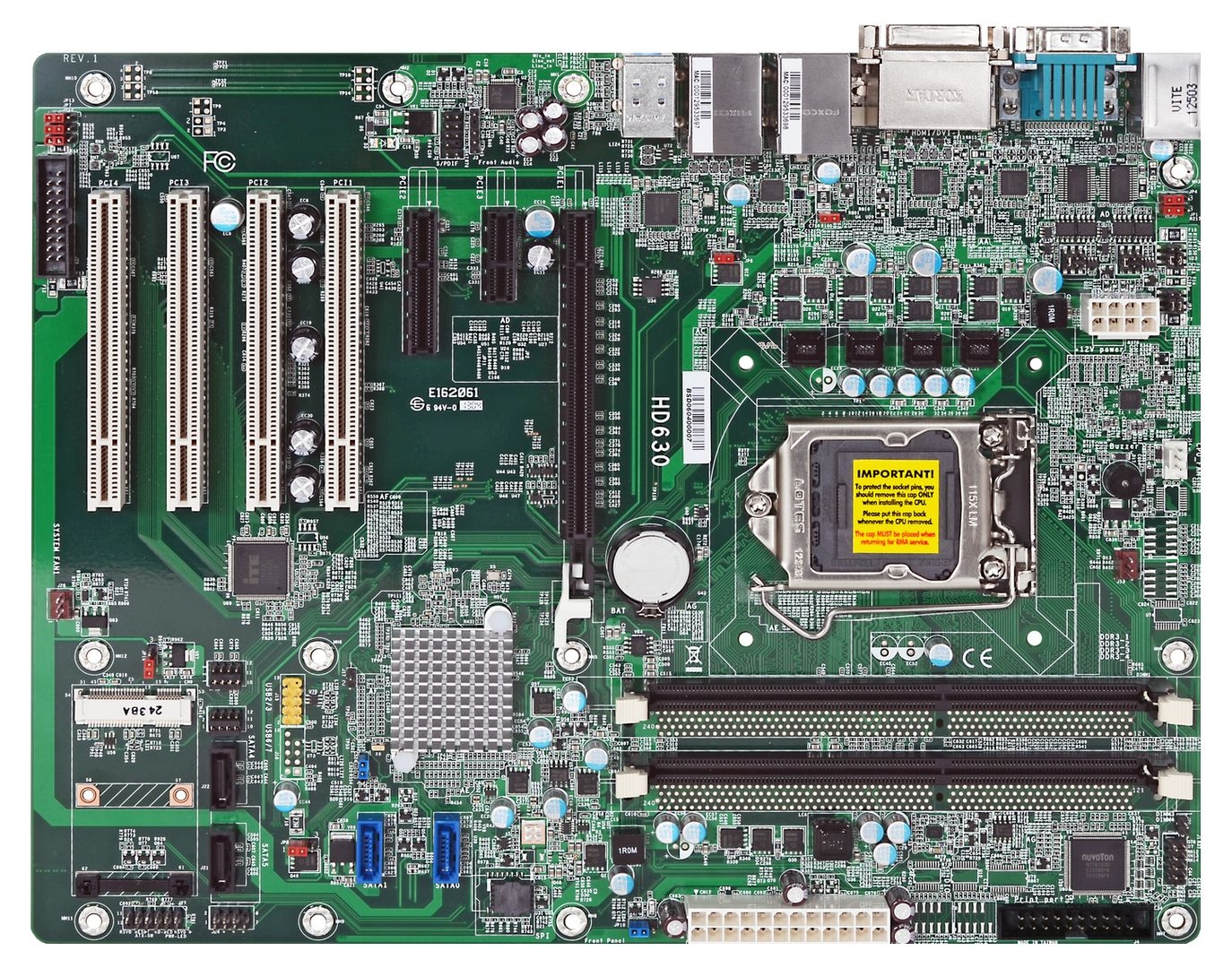

DFI HD630

HD630-H81B, HD630-H81C, HD630-H81D

ATX Mainboards

Produkt ist EOL (End Of Life)!

PRODUKT-FEATURES

// ATX Industrie-Mainboards
// [- | Intel Celeron G1820 | Intel Celeron G1820TE | Intel Core i3-4330 | Intel Core i3-4330TE | Intel Core i3-4340TE | Intel Core i3-4350T | Intel Core i3-4360 | Intel Core i5-4570S | Intel Core i5-4570TE | Intel Core i5-4590S | Intel Core i5-4590T | Intel Core i7-4770S | Intel Core i7-4770TE | Intel Core i7-4790S | Intel Pentium G3320TE | Intel Pentium G3420]
// Intel H81
// 240 Pin DIMM DDR3
// 1 x HDMI
// 1 x DVI-I
// [1 | 2] x G-LAN
// 6 x USB
// [1 | 2] x USB (intern)
// [2 | 6] x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCI
// 1 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// 1 x Mini-PCIe
// Stromversorgung ATX

KONFIGURATION

Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration Individualkonfiguration

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: DFI HD630

Allgemein
SKU / ArtikelnummerHD630HD630-H81B, HD630-H81B-USB, HD630-H81C, HD630-H81C-USB, HD630-H81D, HD630-H81D-USB, HD630-H81B-4330, HD630-H81B-4330TE, HD630-H81B-4340TE, HD630-H81B-4350T, HD630-H81B-4360, HD630-H81B-4570S, HD630-H81B-4570TE, HD630-H81B-4590S, HD630-H81B-4590T, HD630-H81B-4770S, HD630-H81B-4770TE, HD630-H81B-4790S, HD630-H81B-G1820, HD630-H81B-G1820TE, HD630-H81B-G3320TE, HD630-H81B-G3420, HD630-H81B-USB-4330, HD630-H81B-USB-4330TE, HD630-H81B-USB-4340TE, HD630-H81B-USB-4350T, HD630-H81B-USB-4360, HD630-H81B-USB-4570S, HD630-H81B-USB-4570TE, HD630-H81B-USB-4590S, HD630-H81B-USB-4590T, HD630-H81B-USB-4770S, HD630-H81B-USB-4770TE, HD630-H81B-USB-4790S, HD630-H81B-USB-G1820, HD630-H81B-USB-G1820TE, HD630-H81B-USB-G3320TE, HD630-H81B-USB-G3420, HD630-H81C-4330, HD630-H81C-4330TE, HD630-H81C-4340TE, HD630-H81C-4350T, HD630-H81C-4360, HD630-H81C-4570S, HD630-H81C-4570TE, HD630-H81C-4590S, HD630-H81C-4590T, HD630-H81C-4770S, HD630-H81C-4770TE, HD630-H81C-4790S, HD630-H81C-G1820, HD630-H81C-G1820TE, HD630-H81C-G3320TE, HD630-H81C-G3420, HD630-H81C-USB-4330, HD630-H81C-USB-4330TE, HD630-H81C-USB-4340TE, HD630-H81C-USB-4350T, HD630-H81C-USB-4360, HD630-H81C-USB-4570S, HD630-H81C-USB-4570TE, HD630-H81C-USB-4590S, HD630-H81C-USB-4590T, HD630-H81C-USB-4770S, HD630-H81C-USB-4770TE, HD630-H81C-USB-4790S, HD630-H81C-USB-G1820, HD630-H81C-USB-G1820TE, HD630-H81C-USB-G3320TE, HD630-H81C-USB-G3420, HD630-H81D-4330, HD630-H81D-4330TE, HD630-H81D-4340TE, HD630-H81D-4350T, HD630-H81D-4360, HD630-H81D-4570S, HD630-H81D-4570TE, HD630-H81D-4590S, HD630-H81D-4590T, HD630-H81D-4770S, HD630-H81D-4770TE, HD630-H81D-4790S, HD630-H81D-G1820, HD630-H81D-G1820TE, HD630-H81D-G3320TE, HD630-H81D-G3420, HD630-H81D-USB-4330, HD630-H81D-USB-4330TE, HD630-H81D-USB-4340TE, HD630-H81D-USB-4350T, HD630-H81D-USB-4360, HD630-H81D-USB-4570S, HD630-H81D-USB-4570TE, HD630-H81D-USB-4590S, HD630-H81D-USB-4590T, HD630-H81D-USB-4770S, HD630-H81D-USB-4770TE, HD630-H81D-USB-4790S, HD630-H81D-USB-G1820, HD630-H81D-USB-G1820TE, HD630-H81D-USB-G3320TE, HD630-H81D-USB-G3420
Produktgrunddaten
HerstellerDFI
System
ProzessorSerieIntel Haswell
Nummer-, Intel Celeron G1820, Intel Celeron G1820TE, Intel Core i3-4330, Intel Core i3-4330TE, Intel Core i3-4340TE, Intel Core i3-4350T, Intel Core i3-4360, Intel Core i5-4570S, Intel Core i5-4570TE, Intel Core i5-4590S, Intel Core i5-4590T, Intel Core i7-4770S, Intel Core i7-4770TE, Intel Core i7-4790S, Intel Pentium G3320TE, Intel Pentium G3420
CPU Kerne2 St, 4 St, -
Threads2 St, 4 St, 8 St, -
SockelLGA 1150 (H3)
Basis Frequenz2 GHz, 2,2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz, 2,7 GHz, 2,9 GHz, 3 GHz, 3,1 GHz, 3,2 GHz, 3,5 GHz, 3,7 GHz, -
Cache2 MB, 3 MB, 4 MB, 6 MB, 8 MB, -
Thermal Design Power (TDP)35 W, 45 W, 53 W, 54 W, 65 W, -
ChipsatzIntel H81
SpeicherAufbau240 Pin DIMM DDR3
Frequenz1333 / 1600 MHz
Steckplätze2 St
Maximaler Ausbau16 GB
BIOSAMI UEFI 64 Mbit SPI
I/O ControllerController 1I/O ControllerNuvoton NCT6102D, Nuvoton NCT6106D
Grafik
ProzessorIntel HD Graphics
Bildschirme (Multidisplay)2 Displays
VGAMaximale Auflösung1920 x 1200 bei 60 Hz
DVIMaximale Auflösung1920 x 1200 bei 60 Hz
HDMIMaximale Auflösung4096 x 2304 bei 24 Hz
Erweiterung
PCIVersion2.3
Anzahl4 St
PCI Schnittstellen4x PCI
PCIe x1Generation2
x1 Signal1 St
PCIe x4Generation2
x1 Signal1 St
PCIe x16x16 SignalGeneration3
Anzahl1 St
Mini-PCIeVolle BautiefeAnzahl1 St
USB UnterstützungJa
mSATA UnterstützungJa
PCIe Schnittstellen1x Mini-PCIe, 1x PCIe x1, 1x PCIe x4, 1x PCIe x16
StoragemSATA
Audio
ChipsatzRealtek ALC886
Netzwerk
G-LANControllerChipsatzIntel I210 PCIe (10/100/1000 Mbps)
Anzahl1 St
ControllerChipsatz-, Intel I217 (10/100/1000 Mbps)
Anzahl1 St, -
Netzwerk1x G-LAN, 2x G-LAN

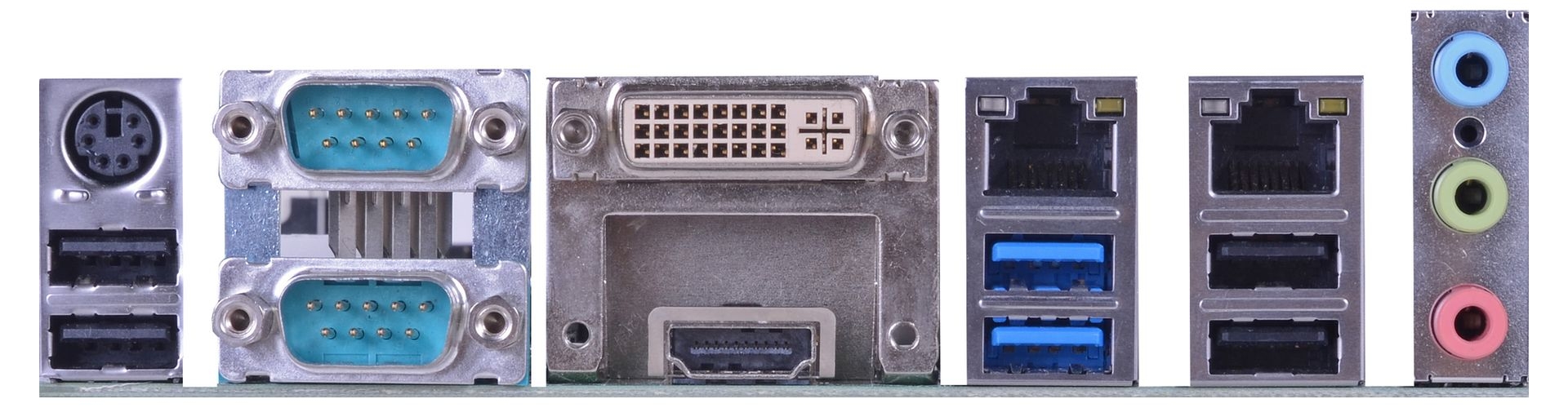

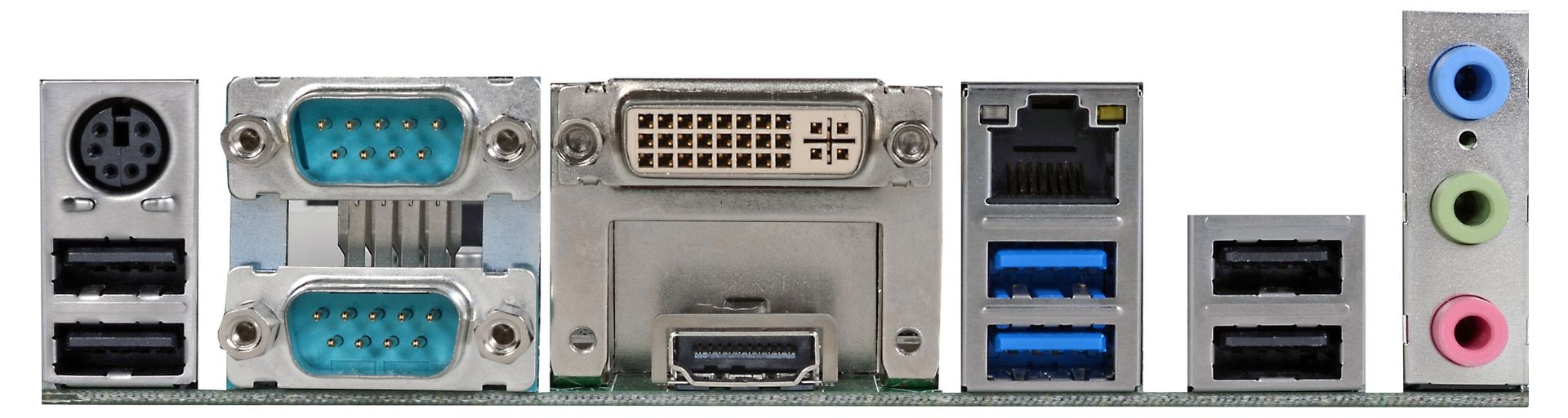

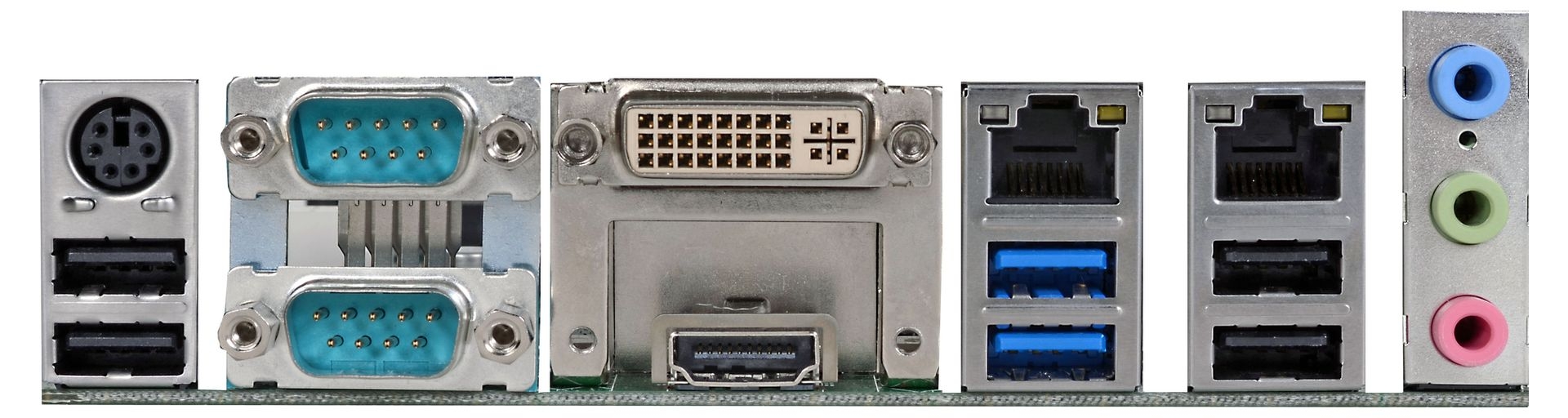

Externe I/O
EthernetRJ-451 St, 2 St
USBUSB v2.04 St
USB v3.02 St
SeriellRS-232 / 422 / 485DB-92 St
PS/2mini-DIN-61 St
AnzeigeHDMI1 St
DVIDVI-I Signal1 St
AudioLine-In1 St
Line-Out1 St
Mic-In1 St
Interne I/O
USBUSB v2.0Ports (2.00 mm Pitch)2 St, -
Ports (Typ-A-Buchse)1 St, -
SeriellRS-232Ports (2.00 mm Pitch)4 St, -
ParallelPorts (2.00 mm Pitch)1 St
Digital I/OBits8-Bit1 St
LPC1 St
AudioLine-Out1 St
Mic-In1 St
S/PDIFverfügbar
Serial-ATAS-ATA R2.0 (3 Gbit/s, 300 MB/s)2 St
S-ATA R3.0 (6 Gbit/s, 600 MB/s)2 St
Watchdog Zeitgeber
Watchdog ZeitgeberJa
Watchdog Zeitgeber (Intervall)Über Software programmierbar (1 - 255 Sekunden)
Sicherheit
Trusted Platform Modul (TPM)Auf Anfrage
Stromversorgung
Typ (Eingang)ATXAnschluss8-Pin ATX (12V DC), 24-Pin ATX
Stromversorgung - EingangATX: 8-Pin ATX (12V DC), 24-Pin ATX
Real-Time Clock (RTC) BatterieCR2032 Knopfbatterie
Betriebssysteme / Software
WindowsWindows XP (32/64-bit)wird teilweise unterstützt
Windows 7 (32/64-bit)wird unterstützt
Windows 8 (32-bit)wird unterstützt
Windows 8 (64-bit)wird unterstützt
Unterstützte BSWindows
Kühlung
UmsetzungAktiv (Lüfterkühlung)
Mechanik / Umgebung
TemperaturBetrieb0° bis 60°C
Lagerung-20° bis 85°C
Relative LuftfeuchtigkeitLagerung5 bis 90%, nicht kondensierend
AbmaßeFormfaktorATX
Breite244 mm
Tiefe305 mm
MTBFMTBF 25°C452,333 h
MTBF 45°C255,169 h
BerechnungsmodellTelcordia Issue 2, Method I Case 3
UmgebungGB, GC – Ground Benign, Controlled
Zertifikate / Konformitäten
CEJa
FCCClass BJa
RoHS konformJa
Lebenszyklus
ProduktionsstartQ1/2014
Voraussichtlich bisQ4/2019
Herstellergarantie
Herstellergarantie2 Jahre
