ATX Mainboards
// ATX Industrie-Mainboards
// LGA 2011 (R3)
// Intel C612
// 288 Pin DIMM DDR4
// 2 x G-LAN
// 6 x USB
// 7 x USB (internal)
// 1 x Seriell I/O
// 3 x PCIe x8
// 4 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

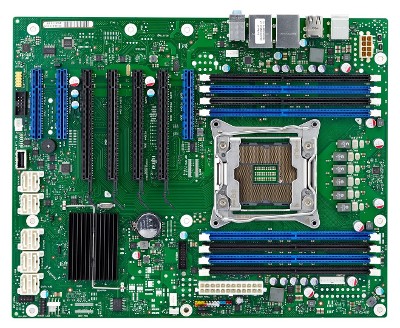

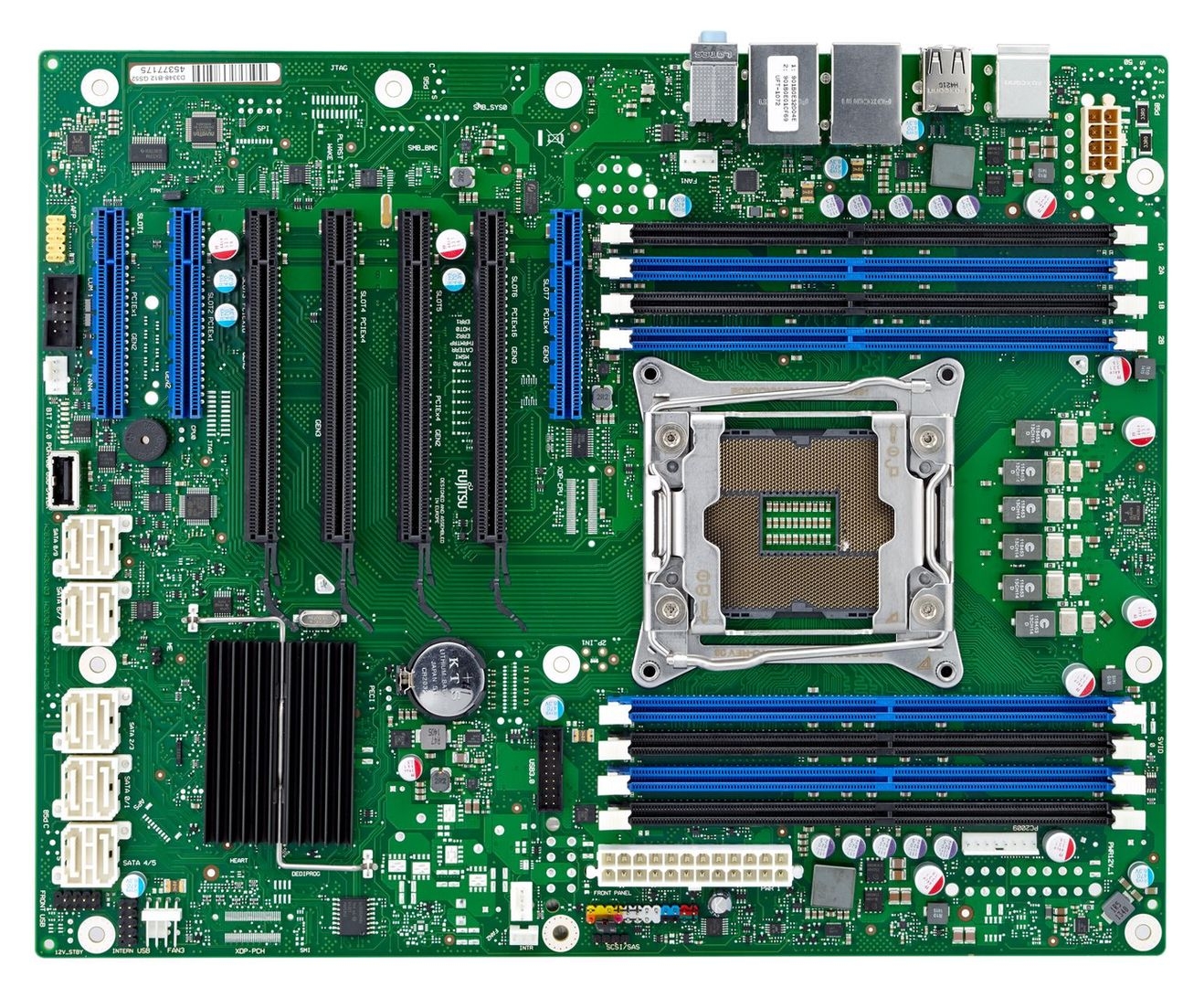

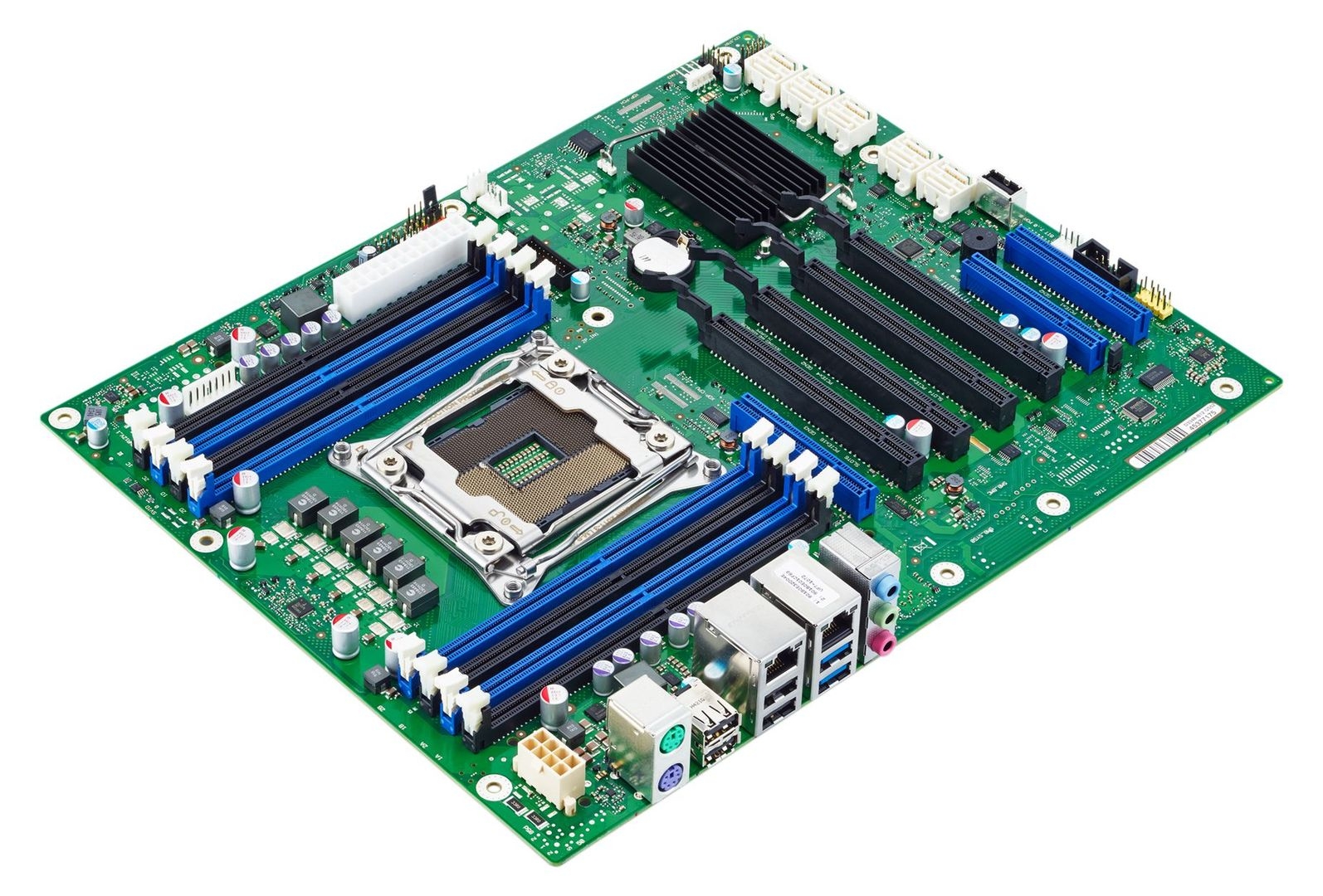

Basismodul: Kontron D3348-B
Allgemein | ||||
SKU / Artikelnummer | D3348-B | |||
Produktgrunddaten | ||||
Hersteller | Kontron | |||
System | ||||
Prozessor | Serie | Intel Broadwell | ||
Sockel | LGA 2011 (R3) | |||
Chipsatz | Intel C612 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 8 St | |||
Maximaler Ausbau | 512 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI Aptio 5.x | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT67920 | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Erweiterung | ||||
PCIe x8 | x1 Signal | 2 St | ||
x4 Signal | 1 St | |||
PCIe x16 | x4 Signal | Generation | 3 | |
Anzahl | 2 St | |||
x16 Signal | Generation | 3 | ||
Anzahl | 2 St | |||
PCIe Schnittstellen | 3x PCIe x8, 4x PCIe x16 | |||
Audio | ||||
Chipsatz | Realtek ALC671 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I217LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 9.1 | |||
Netzwerk | 2x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 4 St | ||
USB v3.0 | 2 St | |||
PS/2 | mini-DIN-6 | 2 St | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.0 | Ports (2.54 mm Pitch) | 2 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 10 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8 (32-bit) | wird unterstützt | |||
Windows 8 (64-bit) | wird unterstützt | |||
Windows 10 (64-bit) | wird unterstützt | |||
Unterstützte BS | Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 50°C | ||
Abmaße | Formfaktor | ATX | ||
Breite | 244 mm | |||
Tiefe | 305 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q2/2016 | |||
Voraussichtlich bis | Q4/2018 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
