ATX Mainboards
// ATX Industrie-Mainboards
// LGA 2066 (R4)
// [Intel C422 | Intel X299]
// 288 Pin DIMM DDR4
// 2 x G-LAN
// 8 x USB
// 8 x USB (internal)
// 5 x PCIe x8
// 2 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

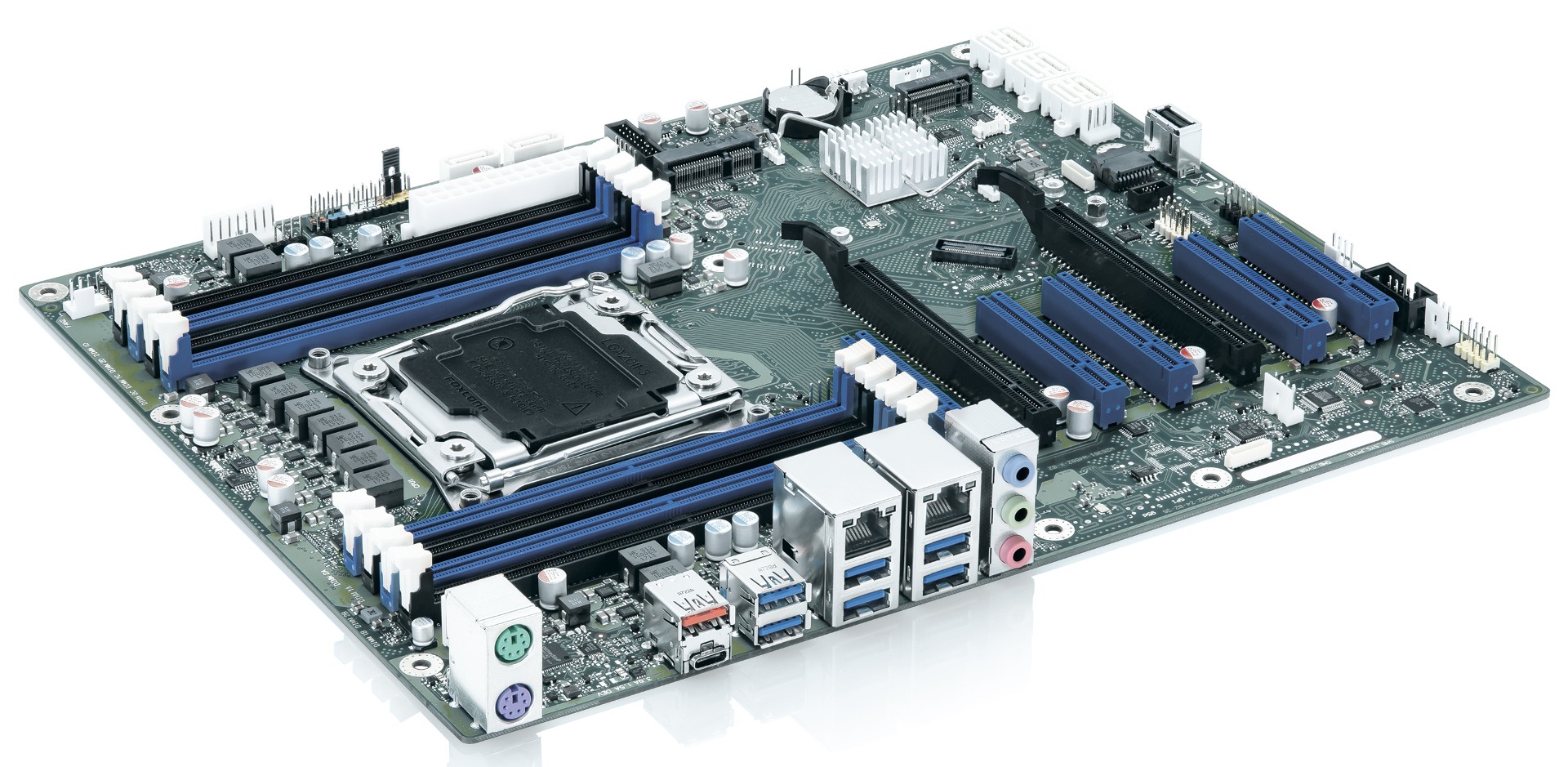

Basismodul: Kontron D3598
| Allgemein | ||||
| SKU / Artikelnummer | D3598 | |||
| Produktgrunddaten | ||||
| Hersteller | Kontron | |||
| System | ||||
| Prozessor | Serie | Intel Skylake | ||
| Sockel | LGA 2066 (R4) | |||
| Chipsatz | Intel C422, Intel X299 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| DIMM Type | Registered DIMM, Unbuffered DIMM | |||
| Frequenz | 2400 / 2666 MHz | |||
| Steckplätze | 8 St | |||
| Maximaler Ausbau | 128 GB, 512 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI UEFI Aptio 5.x | |||
| Erweiterung | ||||
| PCIe x8 | Generation | 3 | ||
| x1 Signal | 2 St | |||
| x4 Signal | 2 St | |||
| x8 Signal | 1 St | |||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 2 St | |||
| PCIe Schnittstellen | 2x PCIe x16, 5x PCIe x8 | |||
| M.2 | Slot 1 | Interface | PCIe ×4 | |
| Unterstütze Abmaße | 2260, 2280 | |||
| Audio | ||||
| Chipsatz | Realtek ALC671 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Active Management Technology (AMT) Version | 11.6, - | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.1 Gen. 1 | 7 St | ||
| USB v3.1 (Gen 2, Type C) | 1 St | |||
| PS/2 | mini-DIN-6 | 2 St | ||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| Interface | 1 St | |||
| USB v3.0 | Ports (2.54 mm Pitch) | 4 St | ||
| SMBus | 1 St, - | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
| Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 7 (32/64-bit) | -, wird unterstützt | ||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Abmaße | Formfaktor | ATX | ||
| Breite | 305 mm | |||
| Tiefe | 244 mm | |||
| Zertifikate / Konformitäten | ||||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
| Lebenszyklus | ||||
| Produktionsstart | -, Q1/2018 | |||
| Voraussichtlich bis | -, Q4/2020 | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
