ATX Mainboards
// ATX Industrie-Mainboards
// LGA 1200 (H5)
// [Intel Q470E | Intel W480E]
// 288 Pin DIMM DDR4
// [2 | 4] x G-LAN (Back side)
// 8 x USB (Back side)
// 5 x USB (internal)
// [5 | 9] x Seriell I/O
// Digital I/O (16-Bit)
// 2 x PCI
// 3 x PCIe x4
// 2 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

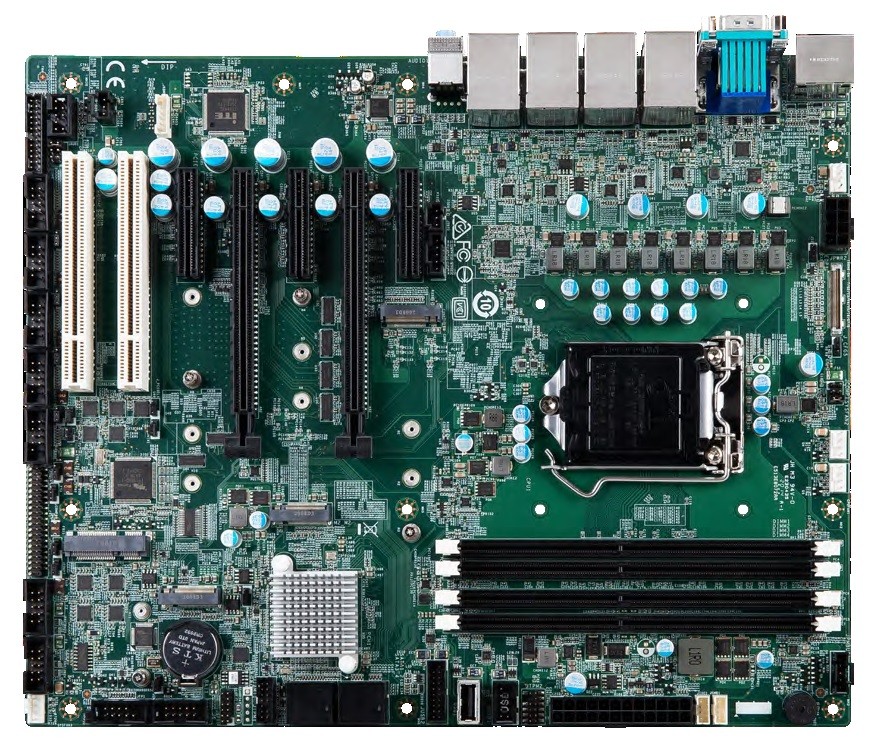

Basismodul: MSI MS-98N9
| Allgemein | ||||
| SKU / Artikelnummer | MS-98N9 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| System | ||||
| Prozessor | Vertikales Segment | Desktop | ||
| Serie | Intel Comet Lake | |||
| Sockel | LGA 1200 (H5) | |||
| Thermal Design Power (TDP) | 125 W | |||
| Chipsatz | Intel Q470E, Intel W480E | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequenz | 2933 MHz | |||
| Steckplätze | 4 St | |||
| Maximaler Ausbau | 128 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI UEFI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81866D-I | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Erweiterung | ||||
| PCI | Anzahl | 2 St | ||
| PCI Schnittstellen | 2x PCI | |||
| PCIe x4 | x4 Signal | 3 St | ||
| PCIe x16 | x8 Signal | Anzahl | 2 St | |
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| PCIe Schnittstellen | 1x Mini-PCIe, 2x PCIe x16, 3x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 | |||
| Unterstütze Abmaße | 2242, 2260, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 | |||
| Unterstütze Abmaße | 2242, 2260, 2280 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 | |||
| Unterstütze Abmaße | 2242, 2260, 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St, 3 St | |||
| Active Management Technology (AMT) Version | 14.0 | |||
| Netzwerk | 1x G-LAN | |||

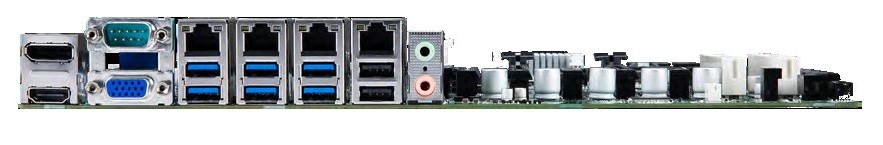

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| HDMI | 1 St | |||
| Displayport | 1 St | |||
| Ethernet | RJ-45 | 2 St, 4 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 2) | 6 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 4 St, - | |
| RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 5 St | ||
| Parallel | Ports (2.54 mm Pitch) | 1 St | ||
| Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
| Digital I/O | Bits | 16-Bit | 1 St | |
| SMBus | 1 St | |||
| I²C | 1 St | |||
| Audio | S/PDIF | verfügbar | ||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9670 VQ 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | |||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -10° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | ATX | ||
| Breite | 305 mm | |||
| Tiefe | 244 mm | |||
| Gewicht | 735 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | BSMI, RCM, VCCI | |||
| RoHS konform | Ja | |||
