E-ATX Mainboards
Produkt ist EOL (End Of Life)!
// E-ATX Industrie-Mainboards
// LGA 2011 (R3)
// Intel C612
// 288 Pin DIMM DDR4
// 1 x VGA
// 3 x G-LAN
// 2 x USB
// 3 x USB (internal)
// 2 x Seriell I/O
// 1 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

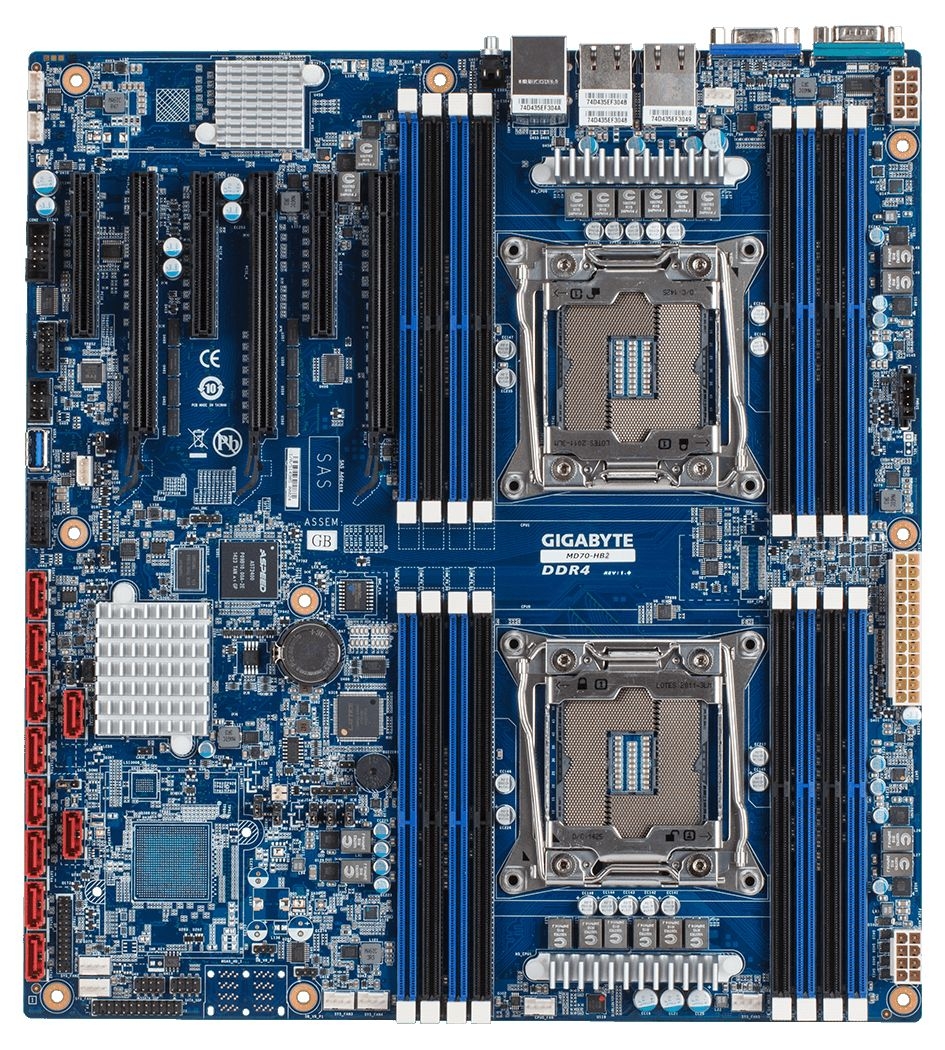

Basismodul: GIGAIPC MD70-HB
Allgemein | ||||
SKU / Artikelnummer | MD70-HB | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Broadwell | |||
Sockel | LGA 2011 (R3) | |||
Mehrprozessorsystem | Dual-Prozessor | |||
Max. CPU-Bestückung | 2 St | |||
Chipsatz | Intel C612 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Aspeed AST2400 BMC | |
Grafik | ||||
Prozessor | Aspeed AST2400 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 2, 3 | ||
x4 Signal | 1 St, - | |||
x8 Signal | 1 St, - | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 3 St | |||
PCIe Schnittstellen | 3x PCIe x16 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I350-AM2 Dual Port PCIe (10/100/1000 Mbps), Intel X540 Dual Port (10 Gbps), Intel X550-BT2 (10 Gbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 3 St | ||
USB | USB v3.0 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
Anzeige | VGA | 1 St | ||
Interne I/O | ||||
USB | USB v3.0 | Ports (2.00 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 1 St | |||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 10 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
Serial Attached SCSI (SAS) | SAS Controller | -, LSI SAS3008 | ||
Raid Unterstützung | RAID 0/1/5/10 | -, wird unterstützt | ||
SAS Anschlüsse / Ports | 2 x Mini-SAS (2 x 4 Ports), - | |||
RAID Unterstützung | RAID 0/1/5/10 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | Ubuntu 12.04, Ubuntu 14.04 | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 35°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 305 mm | |||
Tiefe | 330 mm | |||
Zertifikate / Konformitäten | ||||
RoHS konform | Ja |
