E-ATX Mainboards
Produkt ist EOL (End Of Life)!
// E-ATX Industrie-Mainboards
// LGA 4094 (SP3)
// SoC (System-On-Chip)
// 288 Pin DIMM DDR4
// 1 x VGA
// 3 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 2 x Seriell I/O
// 2 x PCIe x8
// 5 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

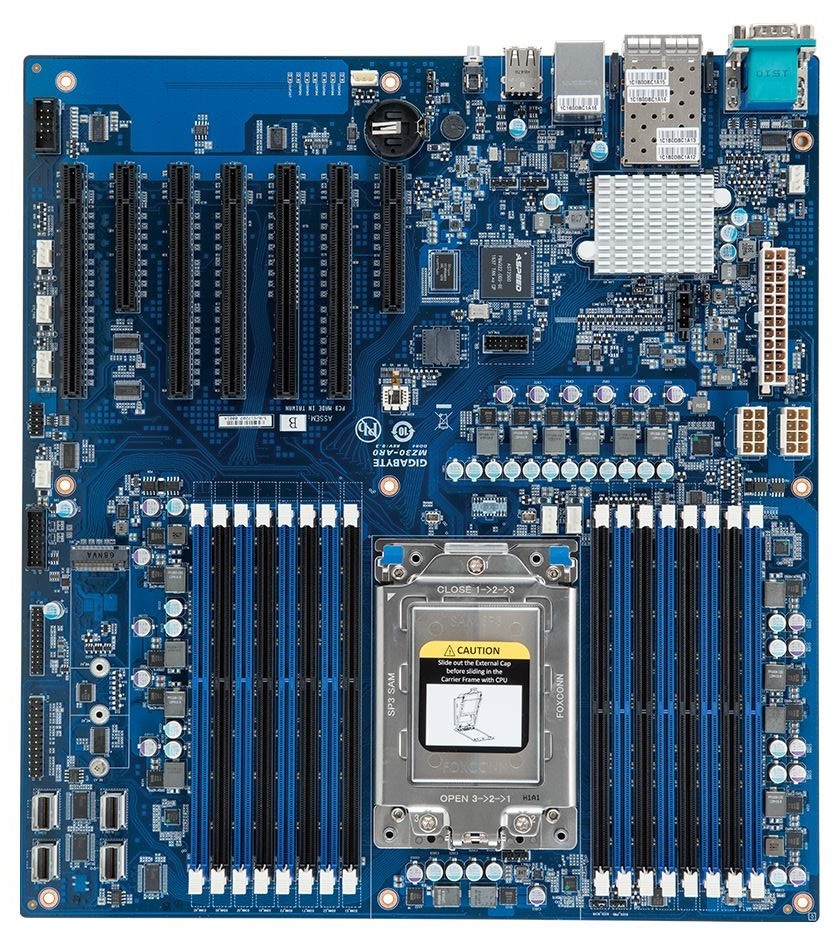

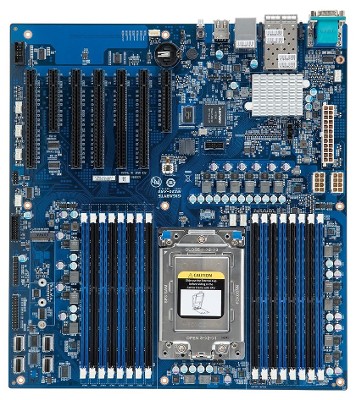

Basismodul: GIGAIPC MZ31-AR0
Allgemein | ||||
SKU / Artikelnummer | MZ31-AR0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD Snowy Owl | |||
Sockel | LGA 4094 (SP3) | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 128 GB | |||
Grafik | ||||
Prozessor | Aspeed AST2500 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 3 | ||
x8 Signal | 2 St | |||
PCIe x16 | x8 Signal | Generation | 3 | |
Anzahl | 1 St | |||
x16 Signal | Generation | 3 | ||
Anzahl | 4 St | |||
PCIe Schnittstellen | 2x PCIe x8, 5x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Broadcom BCM57810S (10 Gbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 1 St | ||
SFP+ (enhanced small form-factor pluggable) | 2 St | |||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 2 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
Anzeige | VGA | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
USB v3.0 | Ports (2.54 mm Pitch) | 2 St | ||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
Serial Attached SCSI (SAS) | SAS | 4 St | ||
SAS Anschlüsse / Ports | SlimSAS | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | Ubuntu 16.04, Ubuntu 17.04 | ||
Unterstützte BS | Windows, Linux | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 305 mm | |||
Tiefe | 330 mm | |||
Statusanzeigen | System Status | 1 St |
