Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1151 (H4)
// Intel H110
// 288 Pin DIMM DDR4
// [1 | 2] x G-LAN (Back side)
// [2 | 4] x USB (Back side)
// [2 | 6] x USB (internal)
// [1 | 8] x Seriell I/O
// Digital I/O (8-Bit)
// [0 | 1] x PCI
// 2 x PCIe x1
// 1 x PCIe x16
// [0 | 1] x Mini-PCIe
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

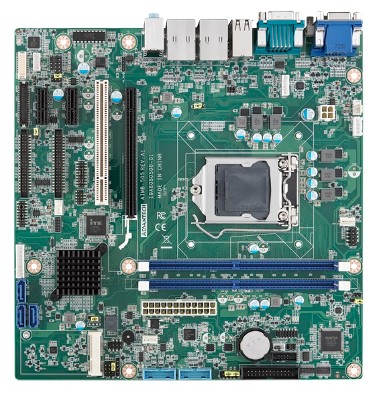

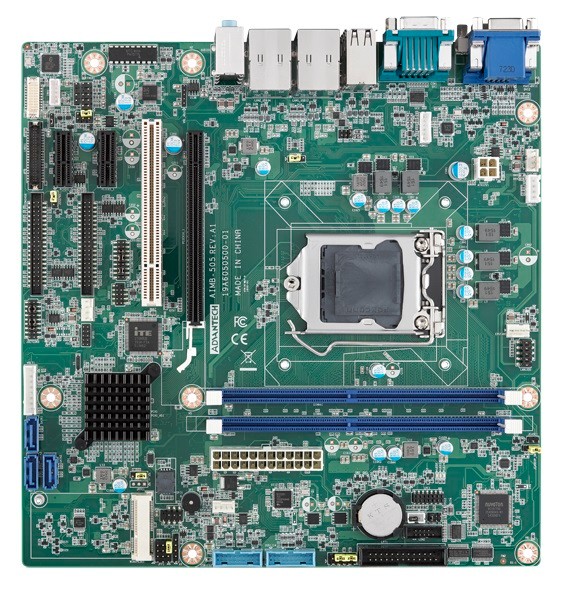

Basismodul: Advantech AIMB-505
| Allgemein | ||||
| SKU / Artikelnummer | AIMB-505 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Serie | Intel Skylake / Kaby Lake | ||
| Sockel | LGA 1151 (H4) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipsatz | Intel H110 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Datarate | 2666 MT/s | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81216HD | |
| Grafik | ||||
| Prozessor | Intel HD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
| Erweiterung | ||||
| PCI | Anzahl | 1 St, - | ||
| PCIe x1 | Generation | 2 | ||
| x1 Signal | 2 St | |||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 1 St | |||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St, - | |
| mSATA Unterstützung | -, Ja | |||
| PCIe Schnittstellen | 1x PCIe x16, 2x PCIe x1 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Realtek RTL8119I (10/100/1000 Mbps) | |
| Anzahl | 1 St, 2 St | |||

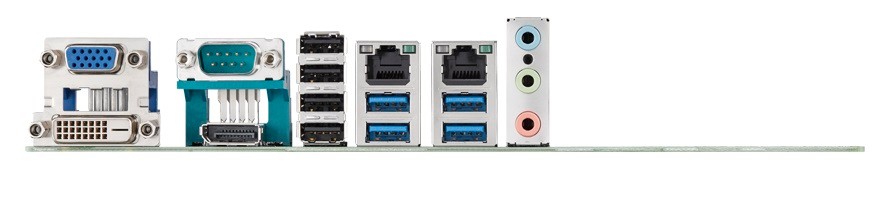

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| DVI | DVI-D Signal | 1 St | ||
| Displayport | 1 St | |||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Ethernet | RJ-45 | 1 St, 2 St | ||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v3.0 | 2 St, 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| USB v3.0 | Ports (2.54 mm Pitch) | 4 St, - | ||
| Seriell | RS-232 | Ports (Sonderanschluss) | 7 St, - | |
| RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | ||
| Parallel | Ports (2.54 mm Pitch) | 1 St | ||
| Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 3 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | -, Infineon SLB 9660 | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | Micro-ATX | ||
| Breite | 244 mm | |||
| Tiefe | 244 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
