Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1700 (H6)
// Intel H610E
// 288 Pin DIMM DDR4
// [1 | 2] x G-LAN (Back side)
// 8 x USB (Back side)
// [2 | 6] x USB (internal)
// [4 | 5 | 9] x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCI
// 1 x PCIe x4
// 1 x PCIe x16
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

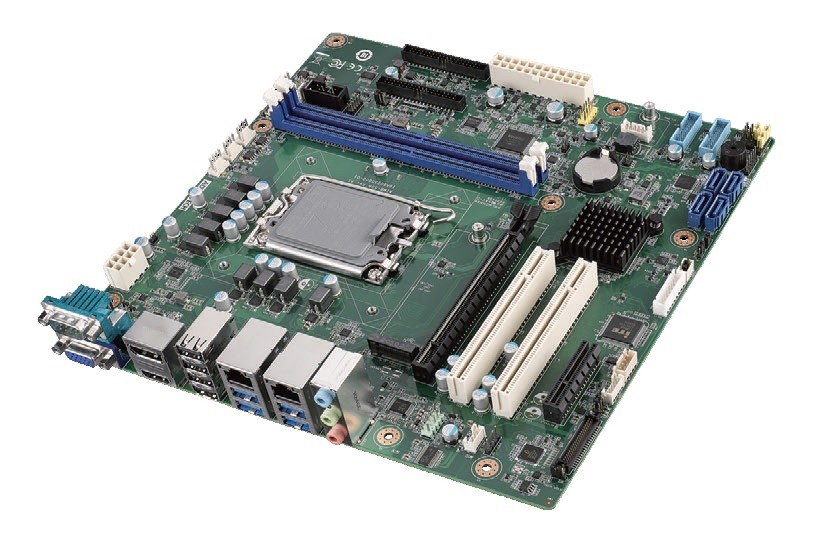

Basismodul: Advantech AIMB-508
Allgemein | ||||
SKU / Artikelnummer | AIMB-508 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Controller 2 | I/O Controller | Nuvoton NCT5124D | ||
Grafik | ||||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCI | Anzahl | 2 St | ||
PCI Schnittstellen | 2x PCI | |||
PCIe x4 | Generation | 3 | ||
x1 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 4 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×2 (Gen. 3) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St, - | |||
Netzwerk | 1x G-LAN | |||

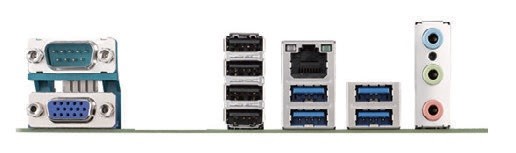

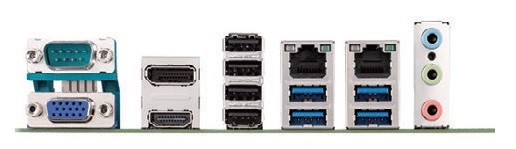

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St, - | |||
Displayport | 1 St, - | |||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St, 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 4 St | ||
USB v3.2 (Gen 1) | 4 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
USB v3.2 | Key-A Header (20-Pin) | 4 St, - | ||
Seriell | RS-232 | Ports (Sonderanschluss) | 4 St, 5 St, 9 St | |
Anzeige | LVDS Anschlüsse | 1 St, - | ||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
