Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C246 | Intel H310 | Intel Q370]
// 288 Pin DIMM DDR4
// [1 | 2] x G-LAN (Back side)
// 8 x USB (Back side)
// [2 | 4] x USB (internal)
// [2 | 6] x Seriell I/O
// Digital I/O (16-Bit)
// [0 | 1] x PCIe x1
// 1 x PCIe x4
// [0 | 1] x PCIe x8
// 1 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

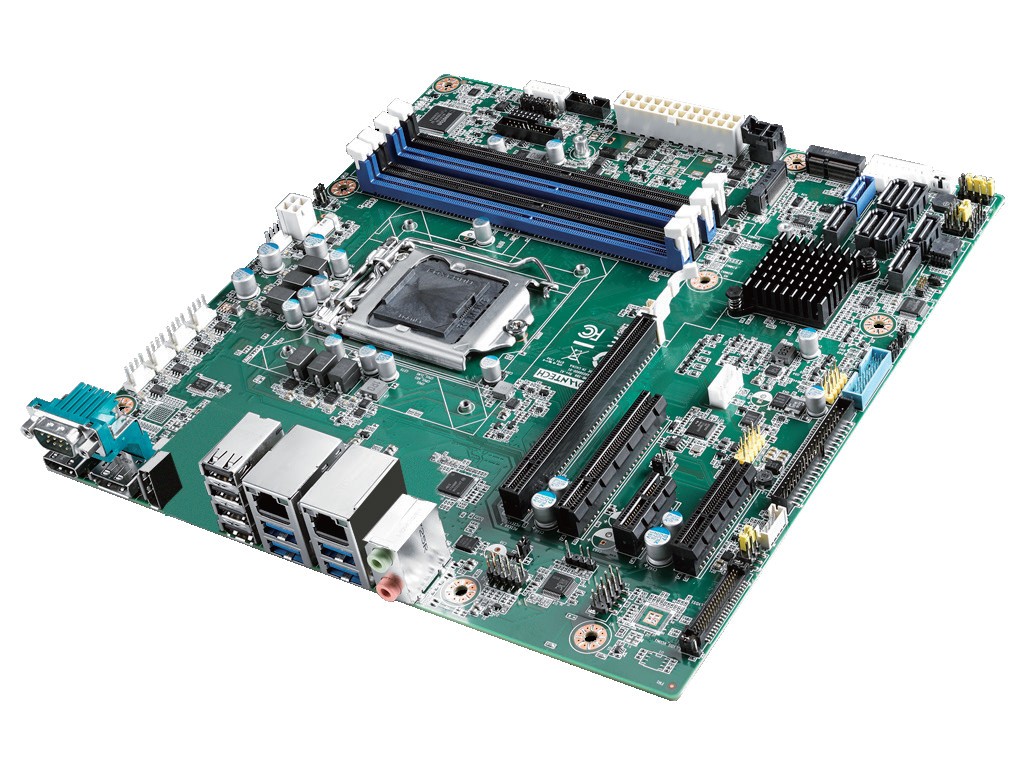

Basismodul: Advantech AIMB-586
| Allgemein | ||||
| SKU / Artikelnummer | AIMB-586 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Desktop | ||
| Serie | Intel Coffee Lake | |||
| Sockel | LGA 1151 (H4) | |||
| Chipsatz | Intel C246, Intel H310, Intel Q370 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequenz | 2400 / 2666 MHz | |||
| Steckplätze | 2 St, 4 St | |||
| Maximaler Ausbau | 64 GB, 128 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6776D | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays, 3 Displays | |||
| HDMI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Version | 1.2 | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Dual Mode | Ja (DP++) | |||
| eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x1 | Generation | 3, - | ||
| x1 Signal | 1 St, - | |||
| PCIe x4 | Generation | 3 | ||
| x4 Signal | 1 St | |||
| PCIe x8 | Generation | 3, - | ||
| x8 Signal | 1 St, - | |||
| PCIe x16 | x8 Signal | Generation | 3, - | |
| Anzahl | 1 St, - | |||
| x16 Signal | Generation | 3, - | ||
| Anzahl | 1 St, - | |||
| PCIe Schnittstellen | 1x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | -, Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St, - | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||

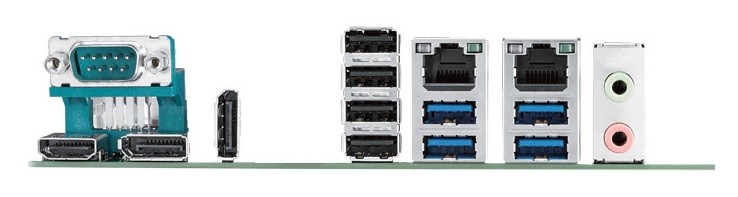

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP++ | 2 St | |||
| Audio | Line-Out | 1 St, - | ||
| Mic-In | 1 St, - | |||
| Ethernet | RJ-45 | 1 St, 2 St | ||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v2.0 | 4 St | ||
| USB v3.0 | 4 St, - | |||
| USB v3.1 Gen. 1 | 4 St, - | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| USB v3.0 | Ports (2.54 mm Pitch) | 2 St, - | ||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St, 4 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St, 2 St | ||
| Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
| Digital I/O | Bits | 16-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St, 6 St, 8 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC), 24-Pin ATX | |||
| Mechanik / Umgebung | ||||
| Abmaße | Formfaktor | Micro-ATX | ||
| Breite | 244 mm | |||
| Tiefe | 244 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
