Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1200 (H5)
// [Intel H420E | Intel Q470E | Intel W480E]
// 288 Pin DIMM DDR4
// [1 | 2 | 4] x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// [5 | 7 | 9] x USB (intern)
// [2 | 6] x Seriell I/O
// Digital I/O (16-Bit)
// [0 | 1] x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

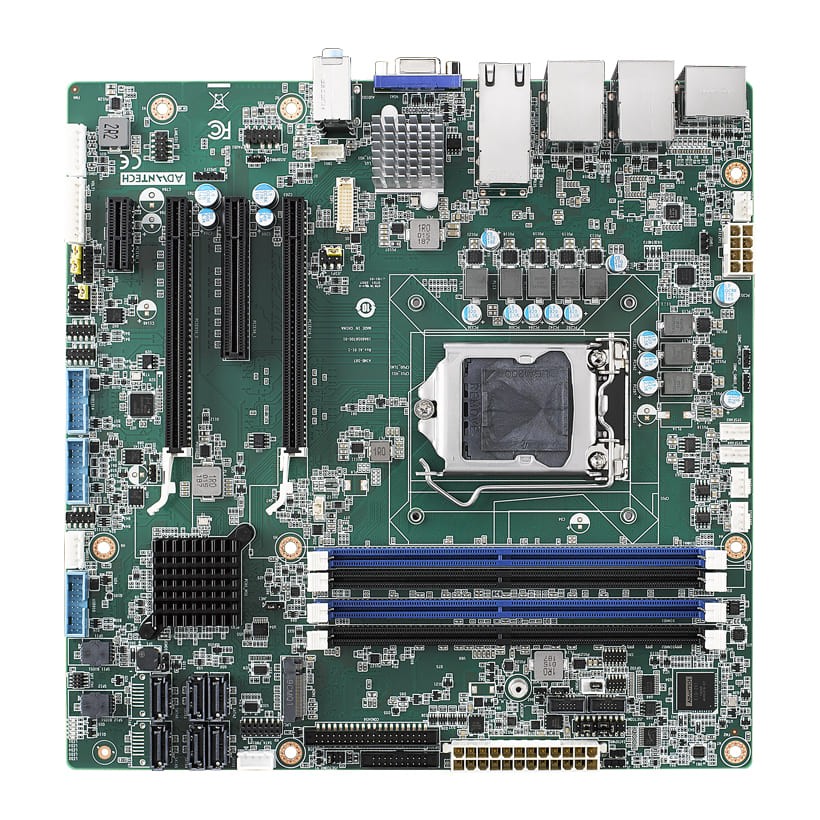

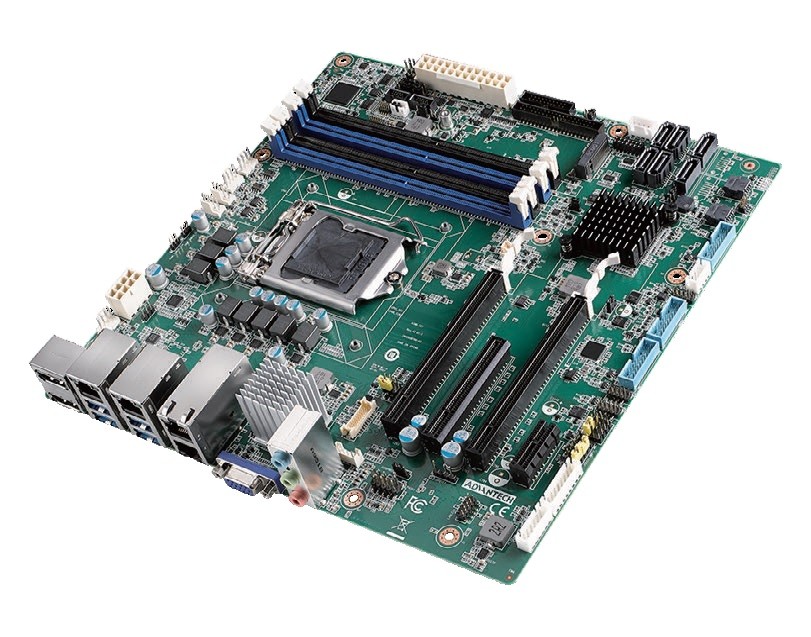

Basismodul: Advantech AIMB-587
Allgemein | ||||
SKU / Artikelnummer | AIMB-587 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Comet Lake | ||
Sockel | LGA 1200 (H5) | |||
Thermal Design Power (TDP) | 95 W | |||
Chipsatz | Intel H420E, Intel Q470E, Intel W480E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 2933 MHz | |||
Steckplätze | 2 St, 4 St | |||
Maximaler Ausbau | 64 GB, 128 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT5124D | |
Grafik | ||||
Bildschirme (Multidisplay) | 2 Displays, 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | x1 Signal | 1 St, - | ||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x1, 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel I211AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St, - | |||
Controller | Chipsatz | -, Intel X550-AT2 (10 Gbps) | ||
Anzahl | 1 St, - | |||
Netzwerk | 1x G-LAN, 2x G-LAN, 3x G-LAN | |||

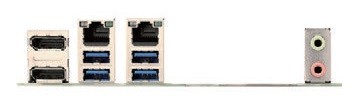

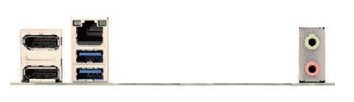

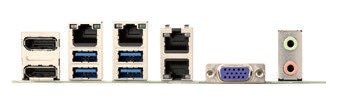

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St, - | ||
DP++ | 2 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St, 2 St, 4 St | ||
USB | USB v3.2 (Gen 2) | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St, 6 St | |
USB v3.2 | Key-A Header (20-Pin) | 1 St, 3 St | ||
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
Ports (Sonderanschluss) | 4 St, - | |||
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | ||
Anzeige | eDP (embedded Display Port) Lanes | 1 St, - | ||
Digital I/O | Bits | 16-Bit | 1 St | |
Audio | Anschluss | 2.00 mm Pitch | ||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St, 6 St, 8 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage, Infineon SLB 9670 VQ 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
