Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1851
// [Intel Q870 | Intel W880]
// 288 Pin DIMM DDR5
// [2 | 4] x G-LAN (Rückseite)
// [9 | 10] x USB (Rückseite)
// 2 x USB (intern)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x4
// [1 | 2] x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

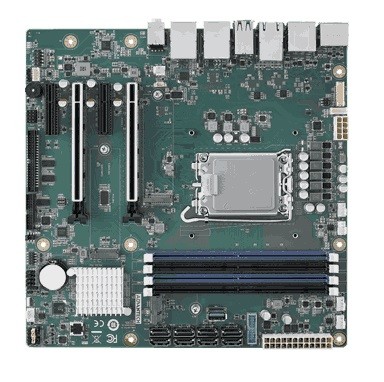

Basismodul: Advantech AIMB-589
Allgemein | ||||
SKU / Artikelnummer | AIMB-589 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Arrow Lake | ||
Sockel | LGA 1851 | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel Q870, Intel W880 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered DIMM/CUDIMM | |||
DIMM Datarate | 5600 MT/s | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 192 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5782VG | |
Controller 2 | I/O Controller | Nuvoton NCT5124D | ||
Grafik | ||||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.1 | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4 | |||
Dual Mode | Ja (DP++) | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x4 | Generation | 4 | ||
x4 Signal | 2 St | |||
PCIe x16 | x8 Signal | Generation | 5, - | |
Anzahl | 2 St, - | |||
x16 Signal | Generation | 5, - | ||
Anzahl | 1 St, - | |||
PCIe Schnittstellen | 1x PCIe x16, 2x PCIe x4, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | CNVi, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | E, M | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 2 St, - | |||
Netzwerk | 2x G-LAN, 4x G-LAN | |||

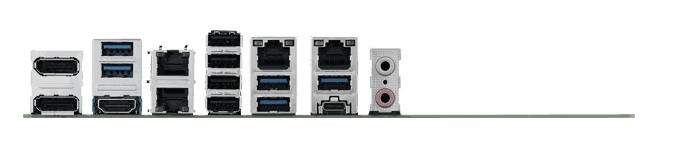

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP++ | 2 St | |||
DP USB-C | 1 St, - | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St, 4 St | ||
USB | USB v2.0 | 4 St | ||
USB v3.2 (Gen 2) | 5 St | |||
USB v3.2 (Gen 2, Type C) | 1 St, - | |||
Interne I/O | ||||
USB | USB v3.2 | Ports (Typ-A-Buchse) | 1 St | |
Key-A Header (20-Pin) | 1 St | |||
Seriell | RS-232 | Ports (Sonderanschluss) | 5 St | |
RS-232 / 422 / 485 | Ports (Sonderanschluss) | 1 St | ||
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | -, v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
