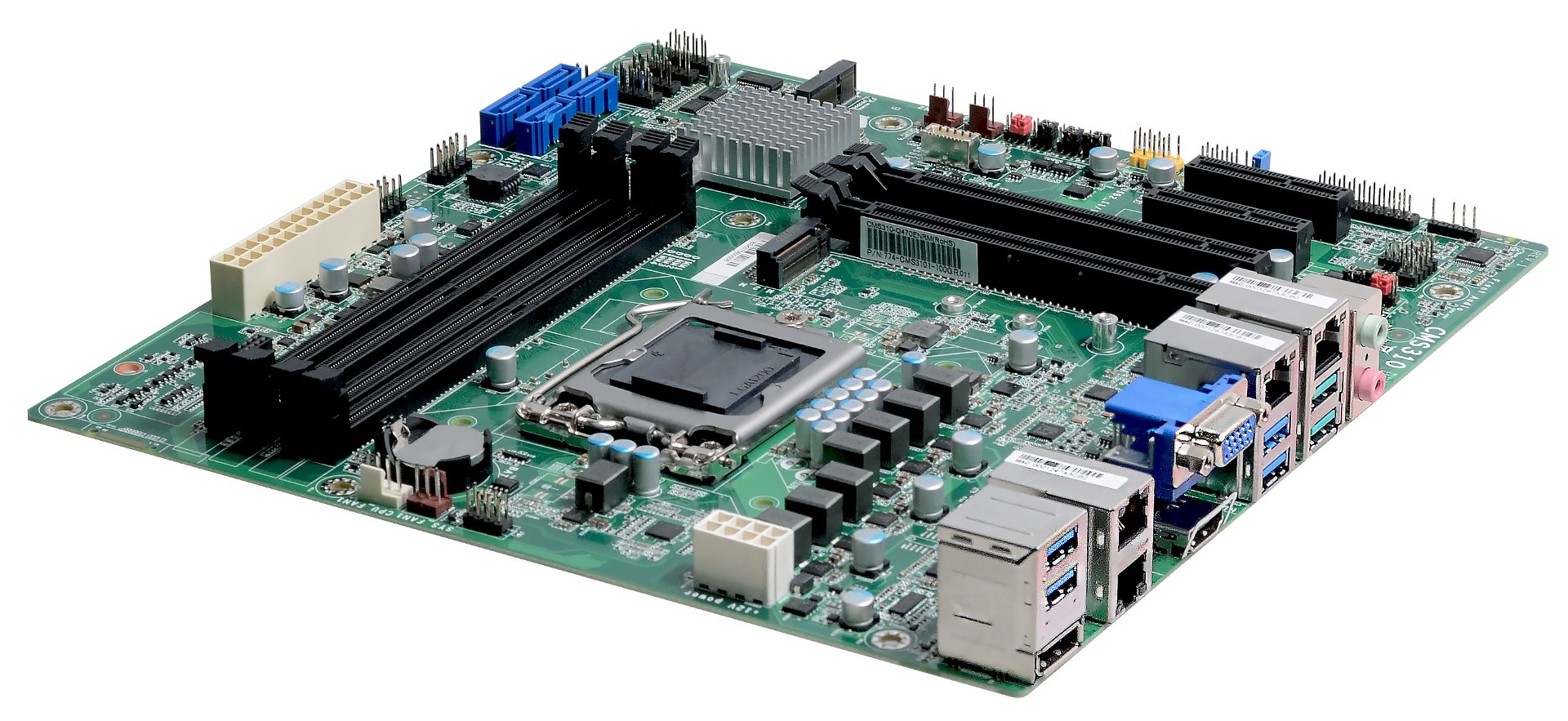

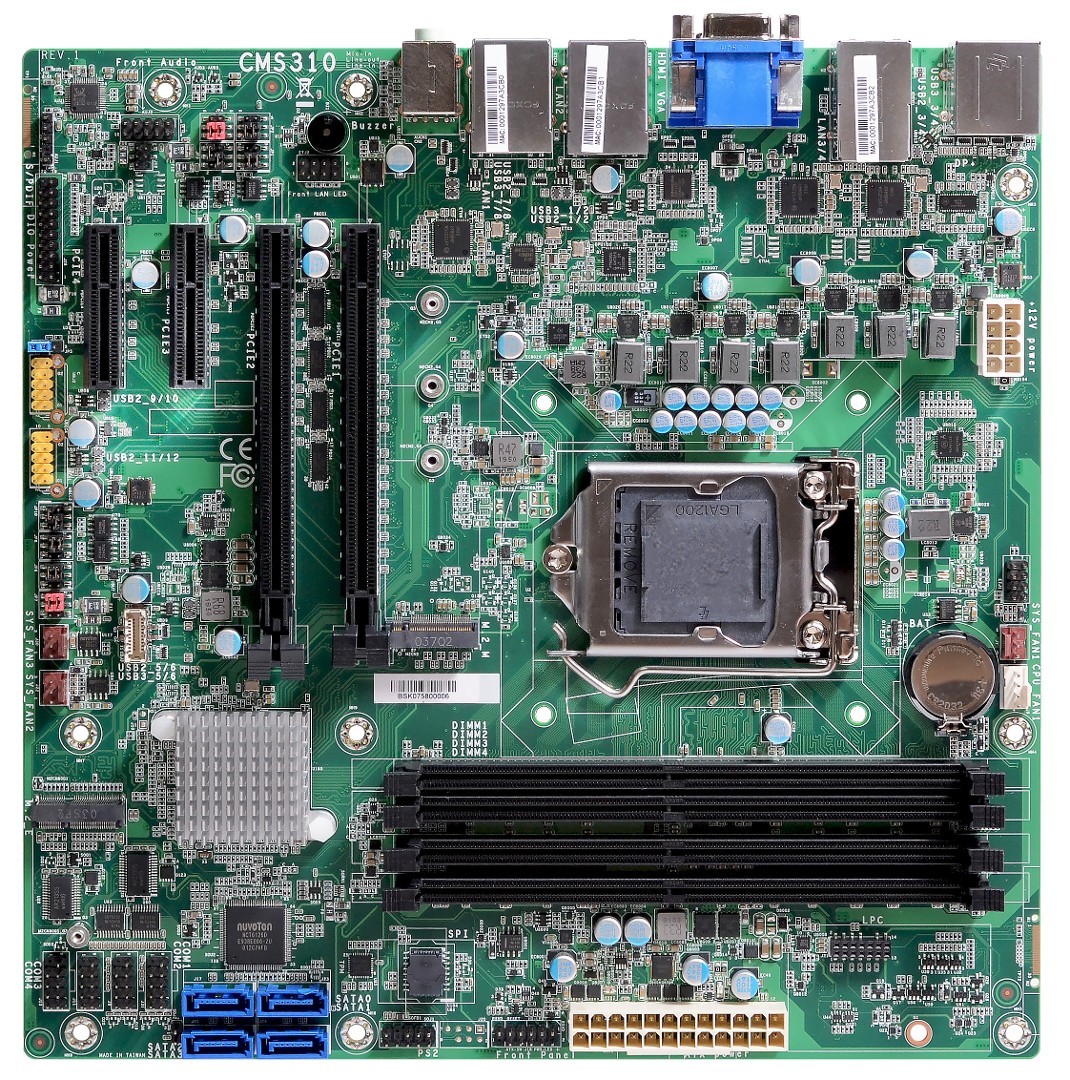

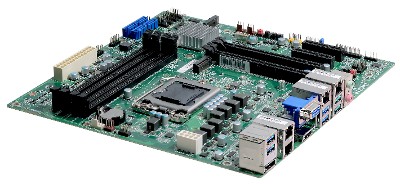

Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1200 (H5)
// [Intel Q470E | Intel W480E]
// 288 Pin DIMM DDR4
// [2 | 4] x G-LAN (Back side)
// 6 x USB (Back side)
// 6 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// 2 x PCIe x4
// 2 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI CMS310
Allgemein | ||||
SKU / Artikelnummer | CMS310 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-CMS3101-000G, 770-CMS3101-100G, 770-CMS3101-200G, 770-CMS3101-300G, 770-CMS3101-400G, 770-CMS3101-500G, 770-CMS3101-600G, 770-CMS3101-700G | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Comet Lake | |||
Sockel | LGA 1200 (H5) | |||
Thermal Design Power (TDP) | 125 W | |||
Chipsatz | Intel Q470E, Intel W480E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2666 / 2933 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics Generation 9 | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 4096 x 2160 bei 24 Hz | ||
Version | 1.4b | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 2 St | |||
PCIe x16 | x8 Signal | Generation | 3 | |
Anzahl | 2 St | |||
PCIe Schnittstellen | 2x PCIe x4, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, Optane Memory, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | E, M | |||
Audio | ||||
Chipsatz | Realtek ALC888 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St, 3 St | |||
Netzwerk | 1x G-LAN | |||

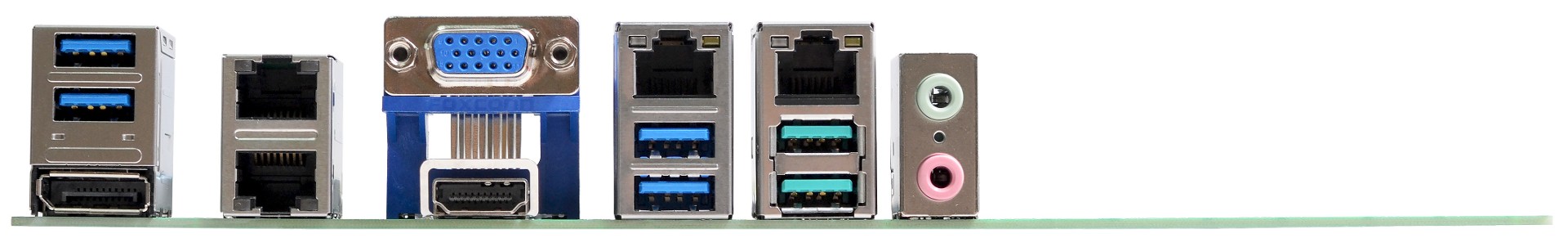

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St, 4 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
USB v3.2 (Gen 2) | 2 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
USB v3.2 | Key-B-Header | 2 St | ||
PS/2 | Stiftleiste | 1 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 2 St | |
RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | ||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | -, Infineon v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 65°C | ||
Lagerung | -30° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
MTBF | MTBF 25°C | 487.616 h | ||
Berechnungsmodell | Telcordia Issue 4 | |||
Umgebung | GB, GC - Ground Benign, Controlled | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
