Micro-ATX Mainboards
Produkt ist EOL (End Of Life)!
// Micro-ATX Industrie-Mainboards
// [- | Intel Celeron G1820 | Intel Celeron G1820TE | Intel Core i3-4330 | Intel Core i3-4330TE | Intel Core i3-4340TE | Intel Core i3-4350T | Intel Core i3-4360 | Intel Core i5-4570S | Intel Core i5-4570TE | Intel Core i5-4590S | Intel Core i5-4590T | Intel Core i7-4770S | Intel Core i7-4770TE | Intel Core i7-4790S | Intel Pentium G3320TE | Intel Pentium G3420]
// Intel H81
// 240 Pin DIMM DDR3
// [1 | 2] x VGA
// [1 | -] x DVI-D
// [1 | 2] x G-LAN
// 6 x USB
// [5 | 6 | 7] x USB (intern)
// [2 | 6 | 10] x Seriell I/O
// 1 x PCI
// 2 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

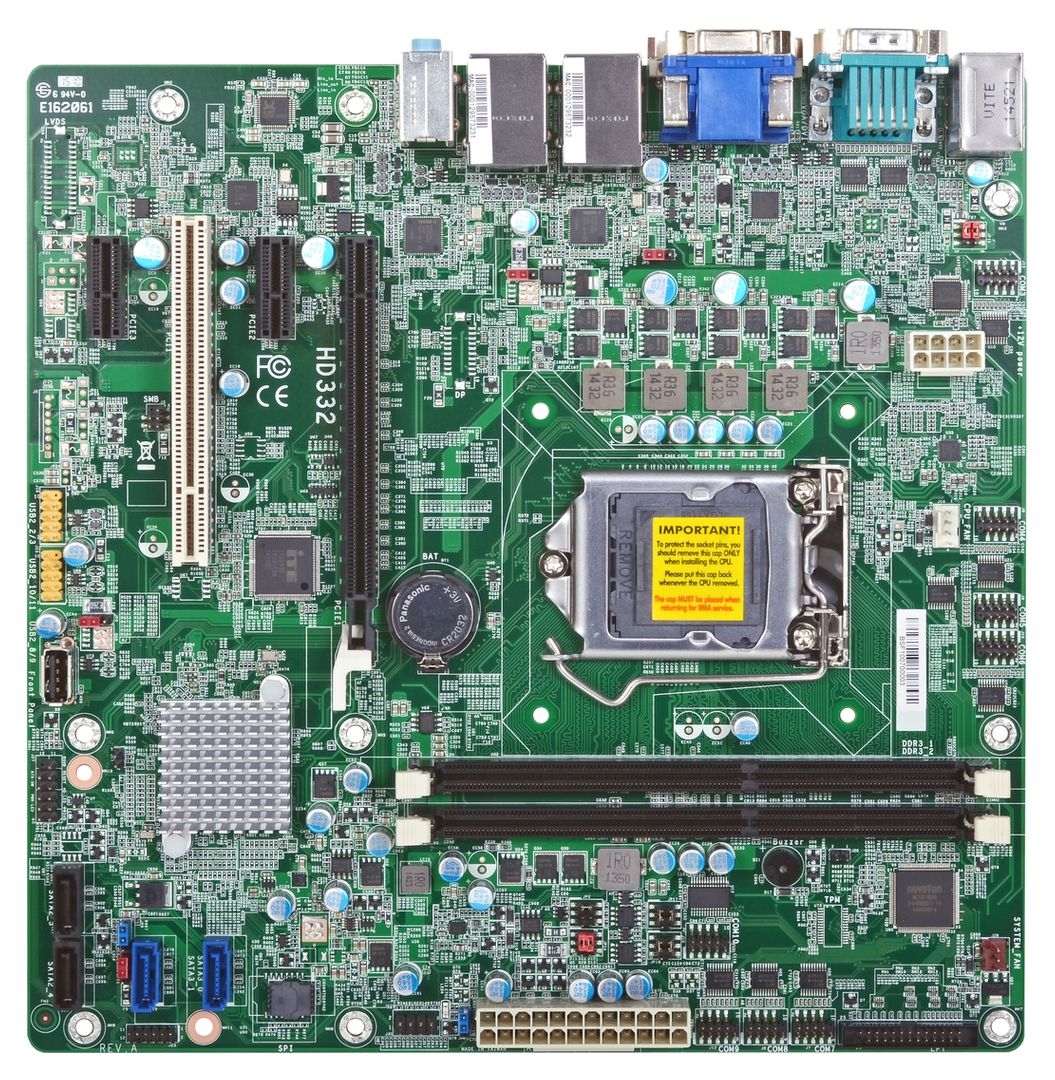

Basismodul: DFI HD332
Allgemein | ||||
SKU / Artikelnummer | HD332 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 934-HD3301 | |||
System | ||||
Prozessor | Serie | Intel Haswell | ||
Nummer | -, Intel Celeron G1820, Intel Celeron G1820TE, Intel Core i3-4330, Intel Core i3-4330TE, Intel Core i3-4340TE, Intel Core i3-4350T, Intel Core i3-4360, Intel Core i5-4570S, Intel Core i5-4570TE, Intel Core i5-4590S, Intel Core i5-4590T, Intel Core i7-4770S, Intel Core i7-4770TE, Intel Core i7-4790S, Intel Pentium G3320TE, Intel Pentium G3420 | |||
CPU Kerne | 2 St, 4 St, - | |||
Threads | 2 St, 4 St, 8 St, - | |||
Sockel | LGA 1150 (H3) | |||
Basis Frequenz | 2 GHz, 2,2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz, 2,7 GHz, 2,9 GHz, 3 GHz, 3,1 GHz, 3,2 GHz, 3,5 GHz, 3,7 GHz, - | |||
Cache | 2 MB, 3 MB, 4 MB, 6 MB, 8 MB, - | |||
Thermal Design Power (TDP) | 35 W, 45 W, 53 W, 54 W, 65 W, - | |||
Chipsatz | Intel H81 | |||
Speicher | Aufbau | 240 Pin DIMM DDR3 | ||
Frequenz | 1333 / 1600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI UEFI 64 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6106D | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCI | Version | 2.3 | ||
Anzahl | 1 St | |||
PCI Schnittstellen | 1x PCI | |||
PCIe x1 | Generation | 2 | ||
x1 Signal | 2 St | |||
PCIe x4 | Generation | 2 | ||
x1 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16, 2x PCIe x1 | |||
Audio | ||||
Chipsatz | Realtek ALC886 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel 82574L (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St, 2 St | |||
Netzwerk | 1x G-LAN, 2x G-LAN | |||

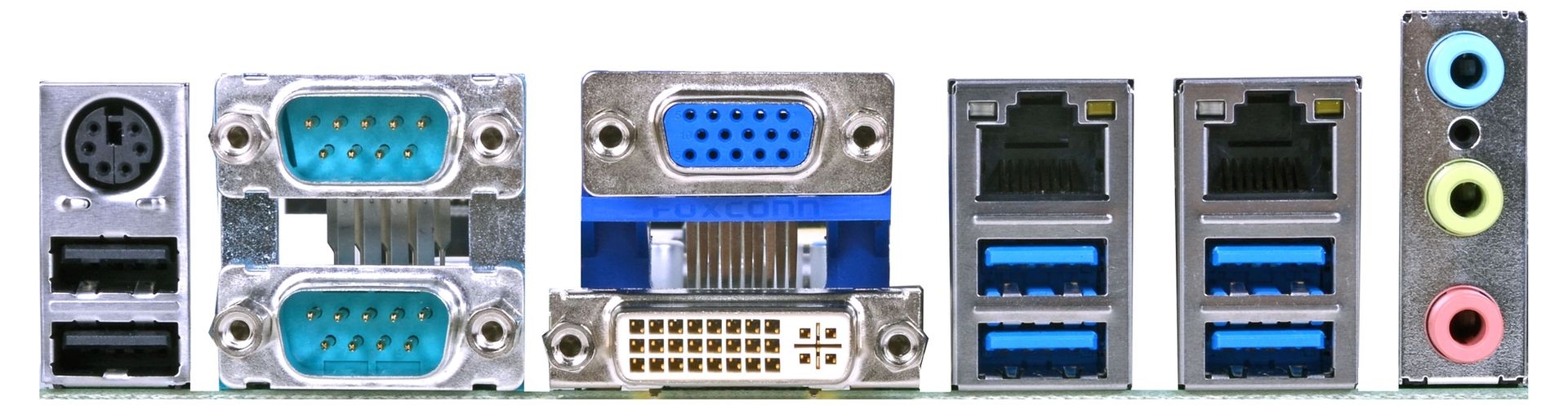

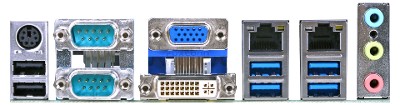

Externe I/O | ||||
Ethernet | RJ-45 | 1 St, 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 4 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
PS/2 | mini-DIN-6 | 1 St | ||
Anzeige | VGA | 1 St, 2 St | ||
DVI | DVI-D Signal | 1 St, - | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St, 6 St | |
Ports (Typ-A-Buchse) | 1 St, - | |||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St, 7 St, - | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St, - | ||
LPC | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R2.0 (3 Gbit/s, 300 MB/s) | 2 St | ||
S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows XP (32/64-bit) | wird teilweise unterstützt | ||
Windows 7 (32/64-bit) | wird unterstützt | |||
Windows 8 (32-bit) | wird unterstützt | |||
Windows 8 (64-bit) | wird unterstützt | |||
Unterstützte BS | Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 85°C | |||
Relative Luftfeuchtigkeit | Lagerung | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
MTBF | MTBF 25°C | 422,255 h | ||
MTBF 45°C | 248,638 h | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q2/2015 | |||
Voraussichtlich bis | Q4/2019 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
