Micro-ATX Mainboards
Produkt ist EOL (End Of Life)!
// Micro-ATX Industrie-Mainboards
// Intel H370
// 288 Pin DIMM DDR4
// 1 x VGA
// 1 x HDMI
// 1 x DVI-D
// 2 x G-LAN
// 4 x USB
// 6 x USB (internal)
// 4 x Seriell I/O
// 2 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

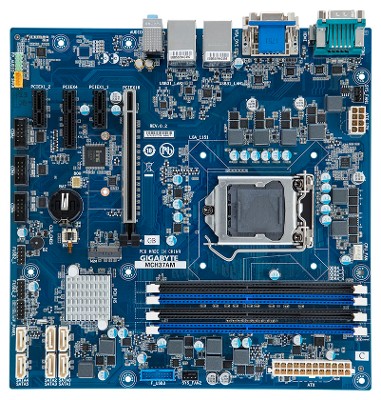

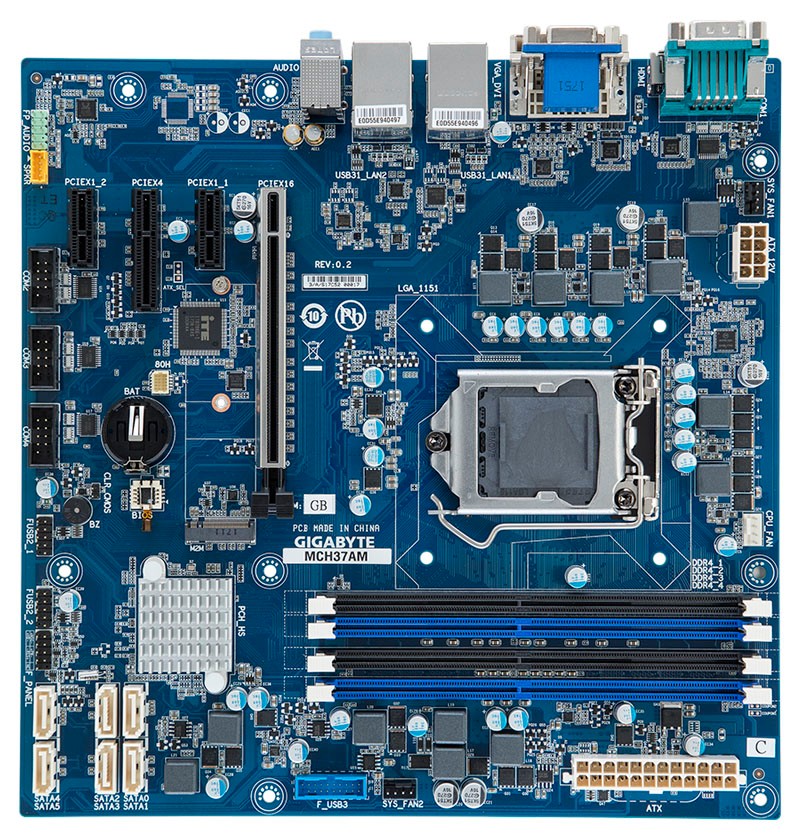

Basismodul: GIGAIPC uATX-H370A
| Allgemein | ||||
| SKU / Artikelnummer | uATX-H370A | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9MCH37AM-SI / MCH37AM-SI | |||
| System | ||||
| Prozessor | Vertikales Segment | Desktop | ||
| Serie | Intel Coffee Lake | |||
| Chipsatz | Intel H370 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 2400 / 2666 MHz | |||
| Steckplätze | 4 St | |||
| Maximaler Ausbau | 64 GB | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics | |||
| Erweiterung | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 2 St | |||
| PCIe x4 | Generation | 3 | ||
| x4 Signal | 1 St | |||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 2x PCIe x1, 1x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 | |||
| Unterstütze Abmaße | 2260, 2280 | |||
| M.2 Key IDs | M | |||
| Audio | ||||
| Chipsatz | Realtek ALC888 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8111HS (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

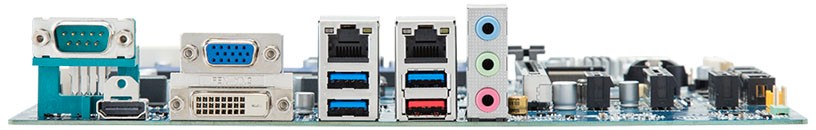

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.0 | 3 St | ||
| USB v3.1 Gen. 2 | 1 St | |||
| Seriell | RS-232 | DB-9 | 1 St | |
| Anzeige | VGA | 1 St | ||
| HDMI | 1 St | |||
| DVI | DVI-D Signal | 1 St | ||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
| USB v3.0 | Ports (2.54 mm Pitch) | 2 St | ||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 3 St | |
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Abmaße | Formfaktor | Micro-ATX | ||
| Breite | 244 mm | |||
| Tiefe | 244 mm | |||
