Micro-ATX Mainboards
Produkt ist EOL (End Of Life)!
// Micro-ATX Industrie-Mainboards
// LGA 1151 (H4)
// Intel Q370
// 288 Pin DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 6 x USB (internal)
// 3 x Seriell I/O
// 2 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: GIGAIPC uATX-Q370A
Allgemein | ||||
SKU / Artikelnummer | uATX-Q370A | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 95 W | |||
Chipsatz | Intel Q370 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Version | 1.4 | |||
Erweiterung | ||||
PCIe x1 | Generation | 3 | ||
x1 Signal | 2 St | |||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 2x PCIe x1, 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2260, 2280 | |||
M.2 Key IDs | M | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8111HS (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

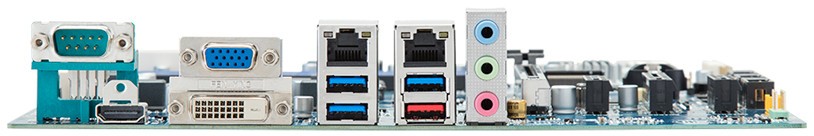

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
DVI | DVI-D Signal | 1 St | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 3 St | ||
USB v3.2 (Gen 2) | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 3 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9665 VQ 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Windows, Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Lagerung | 0 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
