Micro-ATX Mainboards
// Micro-ATX Industrie-Mainboards
// [Intel Core Ultra 5 Processor 225H | Intel Core Ultra 7 Processor 255H | Intel Core Ultra 7 Processor 255U]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 3 x G-LAN (Back side)
// 7 x USB (Back side)
// 2 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (12-Bit)
// 3 x PCIe x4
// 1 x PCIe x8
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

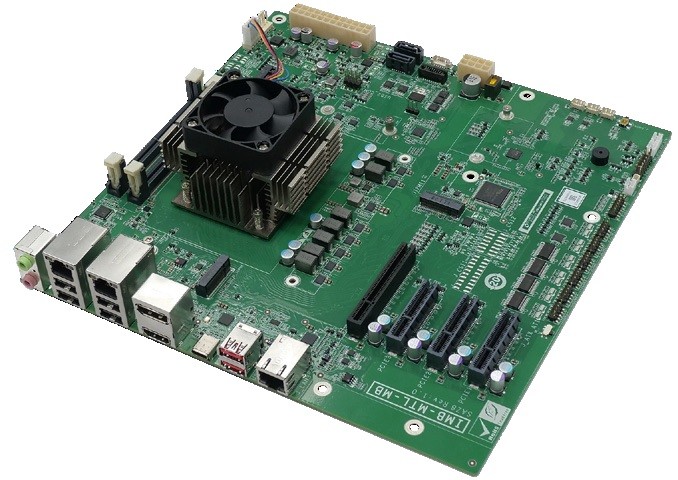

Basismodul: IEI IMB-ARL
Allgemein | ||||
SKU / Artikelnummer | IMB-ARL | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Serie | Intel Arrow Lake | ||
Nummer | Intel Core Ultra 5 Processor 225H, Intel Core Ultra 7 Processor 255H, Intel Core Ultra 7 Processor 255U | |||
CPU Kerne | 12 St, 14 St, 16 St | |||
Threads | 14 St, 16 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,7 GHz, 2 GHz | |||
Performance-core Max Turbo Frequenz | 4,9 GHz, 5,1 GHz, 5,2 GHz | |||
Efficient-core Grundtaktfrequenz | 1,3 GHz, 1,5 GHz, 1,7 GHz | |||
Efficient-core Max Turbo Frequenz | 4,2 GHz, 4,3 GHz, 4,4 GHz | |||
Cache | 12 MB, 18 MB, 24 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W, 28 W | |||
Maximale Turbo-Leistungsaufnahme | 57 W, 115 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 96 GB | |||
BIOS | AMI UEFI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81866D-I | |
Grafik | ||||
Prozessor | Intel Arc 130T, Intel Arc 140T, Intel Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Version | 1.4 | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4 | |||
Erweiterung | ||||
PCIe x4 | Generation | 4 | ||
x4 Signal | 3 St | |||
PCIe x8 | Generation | 5 | ||
x8 Signal | 1 St | |||
PCIe Schnittstellen | 1x PCIe x8, 3x PCIe x4 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | OOB | |||
Unterstütze Abmaße | 3080 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×2 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | B | ||
Interface | OOB, PCIe ×1 (Gen. 4) | |||
Unterstütze Abmaße | 3080 | |||
M.2 Key IDs | B, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

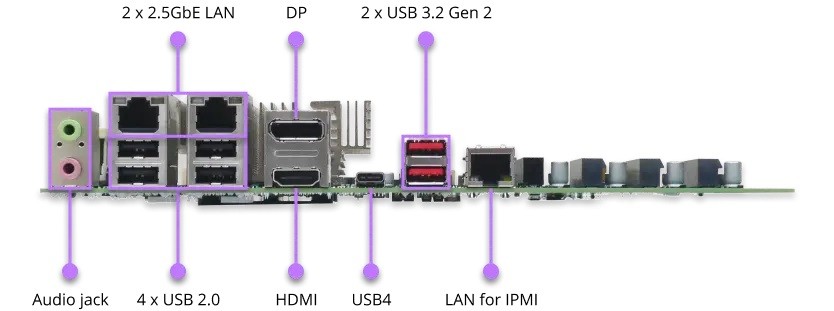

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
DP USB-C | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
USB | USB v2.0 | 4 St | ||
USB v3.2 (Gen 2, Type A) | 2 St | |||
USB v3.2 (Gen 2, Type C) | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Digital I/O | Bits | 12-Bit | 1 St | |
SMBus | 1 St | |||
I²C | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Gewicht | 700 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
