Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1700 (H6)
// Intel H610E
// 260 Pin SO-DIMM DDR4
// LVDS
// [1 | 2] x G-LAN (Rückseite)
// [6 | 8] x USB (Rückseite)
// 2 x USB (intern)
// [2 | 6] x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

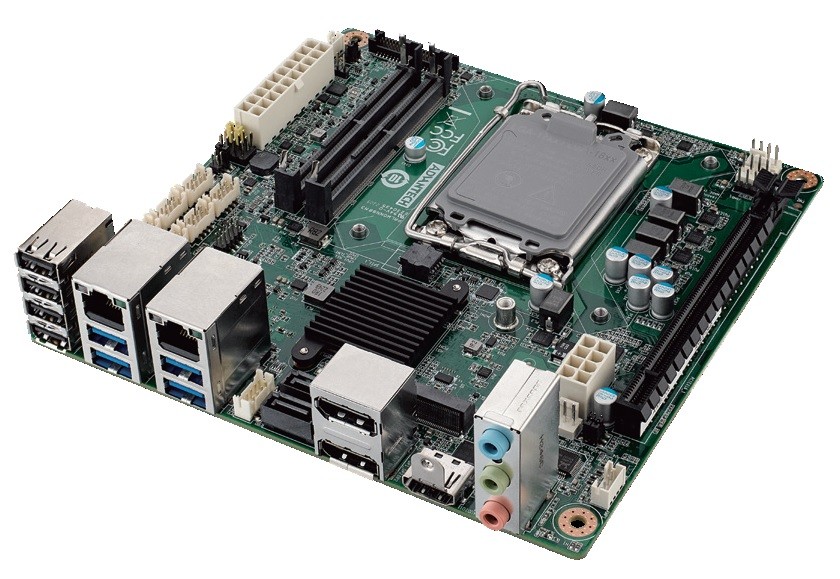

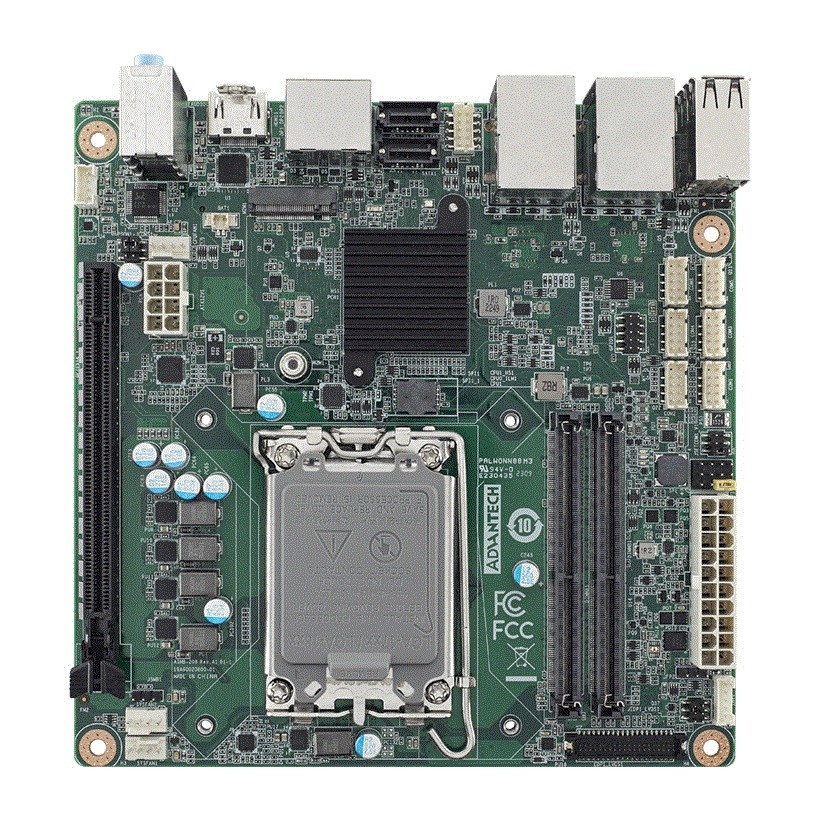

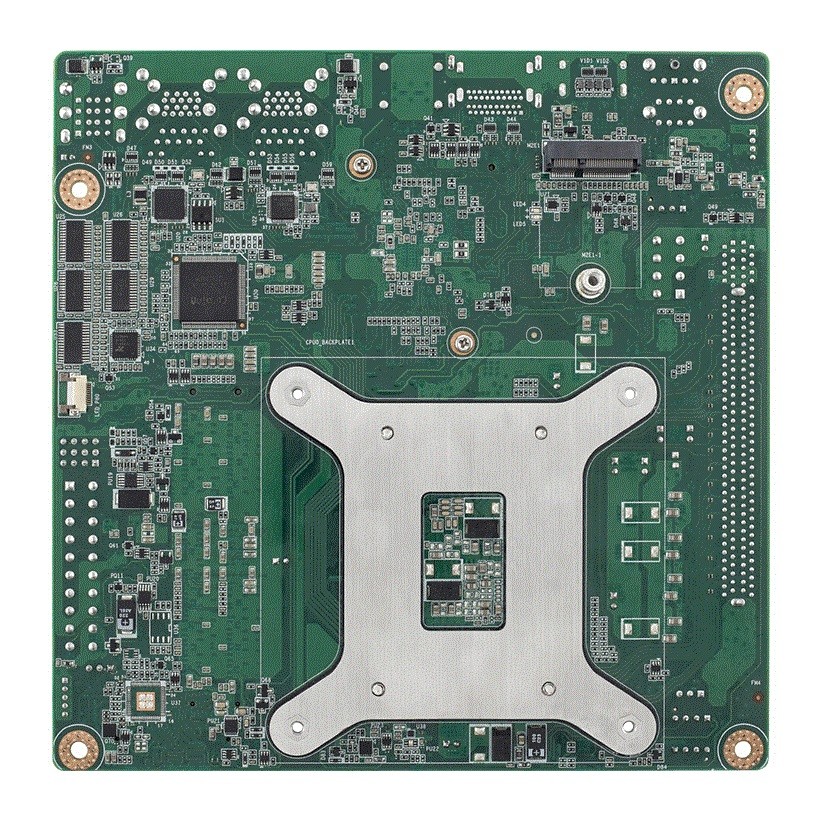

Basismodul: Advantech AIMB-208
Allgemein | ||||
SKU / Artikelnummer | AIMB-208 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Grafik | ||||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Version | 1.4b | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4a | |||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz, - | ||
Bits | 24 Bit, - | |||
Bridge | -, Chrontel CH7513A-BF | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz, - | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 4 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St, - | |||
Netzwerk | 1x G-LAN, 2x G-LAN | |||

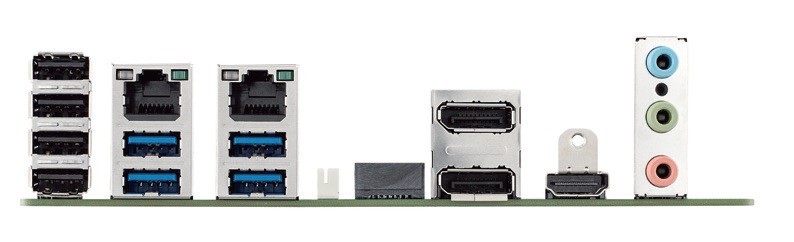

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP++ | 1 St, 2 St | |||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St, 2 St | ||
USB | USB v2.0 | 4 St | ||
USB v3.2 (Gen 1) | 2 St, 4 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St, 6 St | |
Anzeige | LVDS Anschlüsse | 1 St, - | ||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 20-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 20-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
