Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1151 (H4)
// Intel Q370
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Rückseite)
// [7 | 8] x USB (Rückseite)
// 1 x USB (intern)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Stromversorgung DC [12V | 12~24V]
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

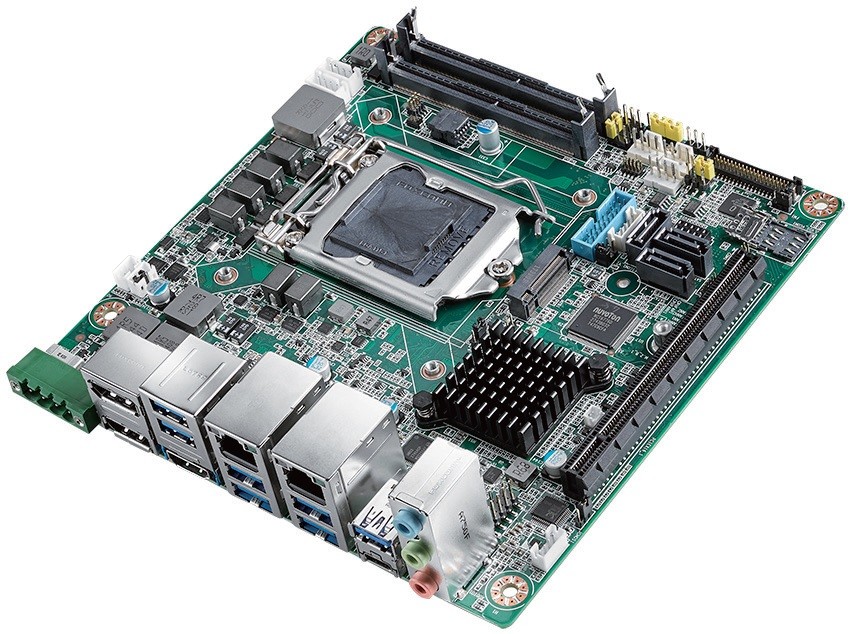

Basismodul: Advantech AIMB-276
Allgemein | ||||
SKU / Artikelnummer | AIMB-276 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel Q370 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 2666 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6776D | |
Grafik | ||||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0a | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.2 | |||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, PCIe ×2, SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242, 3042 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||

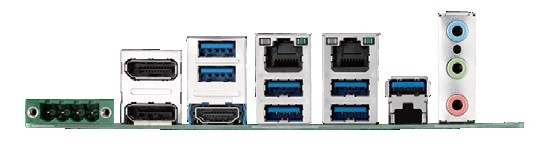

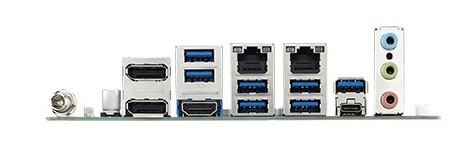

Anzeige | HDMI | 1 St | ||
DP++ | 2 St | |||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 1 St | ||
USB v3.1 Gen. 1 | 6 St | |||
USB v3.1 (Gen 2, Type C) | 1 St, - | |||
Interne I/O | ||||
USB | USB v3.1 | Key-A Header (20-Pin) | 1 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 3 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12V, 12~24V | |
Anschluss | 4 Pin Terminal Stecker, Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12V, DC: 12~24V | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
