Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel Q670E]
// 262 Pin SO-DIMM DDR5
// LVDS
// [1 | 2] x G-LAN (Rückseite)
// [4 | 6] x USB (Rückseite)
// 2 x USB (intern)
// 2 x Seriell I/O
// 1 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

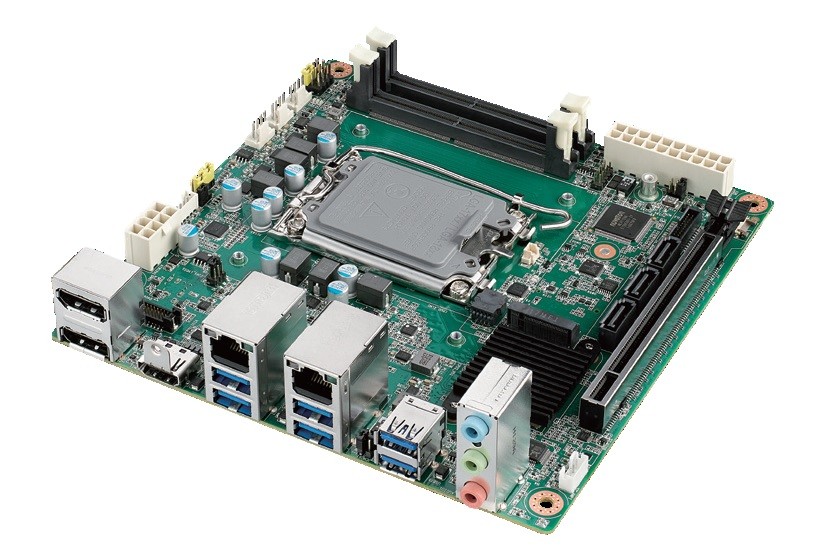

Basismodul: Advantech AIMB-278
Allgemein | ||||
SKU / Artikelnummer | AIMB-278 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E, Intel Q670E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 96 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz, - | ||
Version | 2.0b, - | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4a | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
eDP (embedded Display Port) | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | -, Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St, - | |||
Netzwerk | 1x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St, - | ||
Displayport | 2 St | |||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 1 St, 2 St | ||
USB | USB v2.0 | 2 St, - | ||
USB v3.2 (Gen 1) | 2 St, - | |||
USB v3.2 (Gen 2) | 6 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
Anzeige | LVDS Anschlüsse | 1 St, - | ||
eDP (embedded Display Port) Lanes | 1 St, - | |||
Digital I/O | Bits | 6-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 3 St | ||
Raid Unterstützung | RAID 0/1/5 | wird unterstützt | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage, v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
