Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel Q670E]
// 262 Pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x16
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

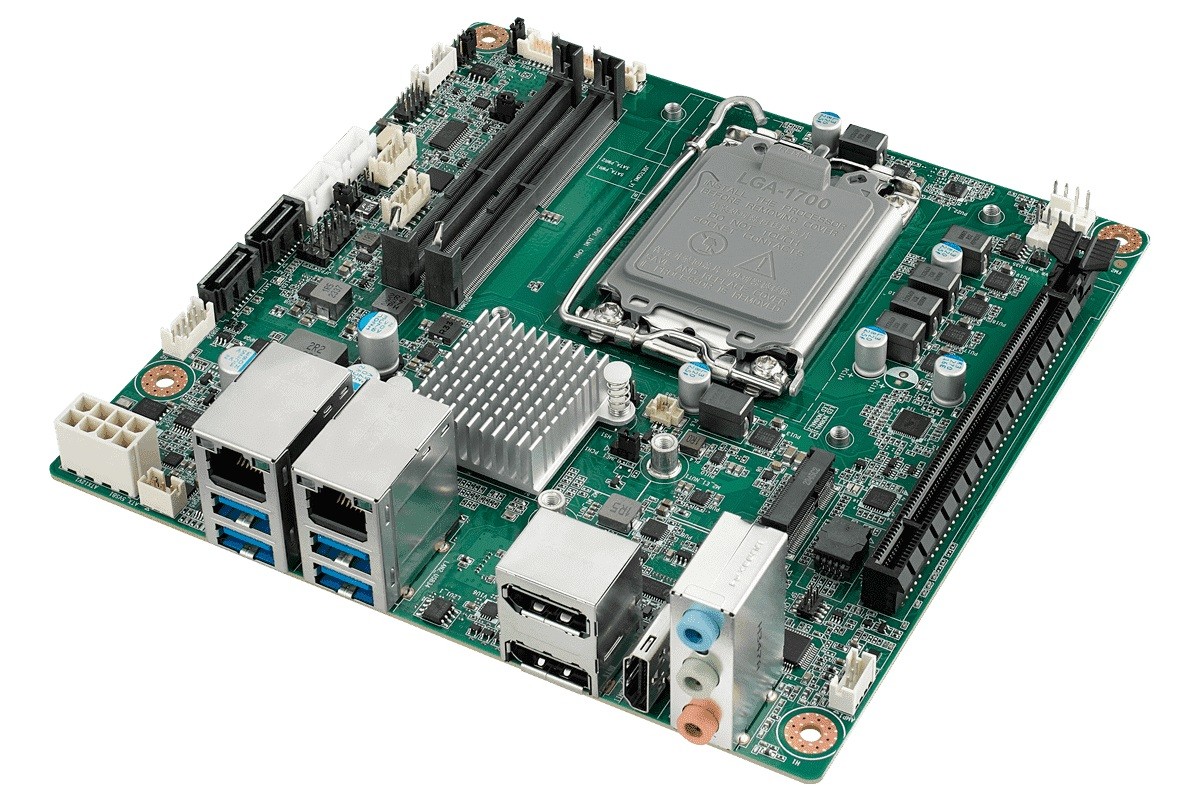

Basismodul: Advantech AIMB-279 B1
| Allgemein | ||||
| SKU / Artikelnummer | AIMB-279 B1 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Desktop | ||
| Serie | Intel Alder Lake / Raptor Lake | |||
| Sockel | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipsatz | Intel H610E, Intel Q670E | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 5600 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 96 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
| Grafik | ||||
| Bildschirme (Multidisplay) | 3 Displays, 4 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0b | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.4a | |||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 4 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 3), WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP++ | 1 St, 2 St | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 1) | 2 St | ||
| USB v3.2 (Gen 2) | 2 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Anzeige | LVDS Anschlüsse | 1 St, - | ||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware), Intel PTT (wie TPM 2.0) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | ATX Anschlussstecker | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
