Mini-ITX Mainboards
// [Mini-ITX | Thin Mini-ITX] Industrie-Mainboards
// [Intel Celeron 6305E | Intel Core i3-1115G4E | Intel Core i3-1115GRE | Intel Core i5-1145G7E | Intel Core i5-1145GRE | Intel Core i7-1185G7E | Intel Core i7-1185GRE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// [2 | 4] x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

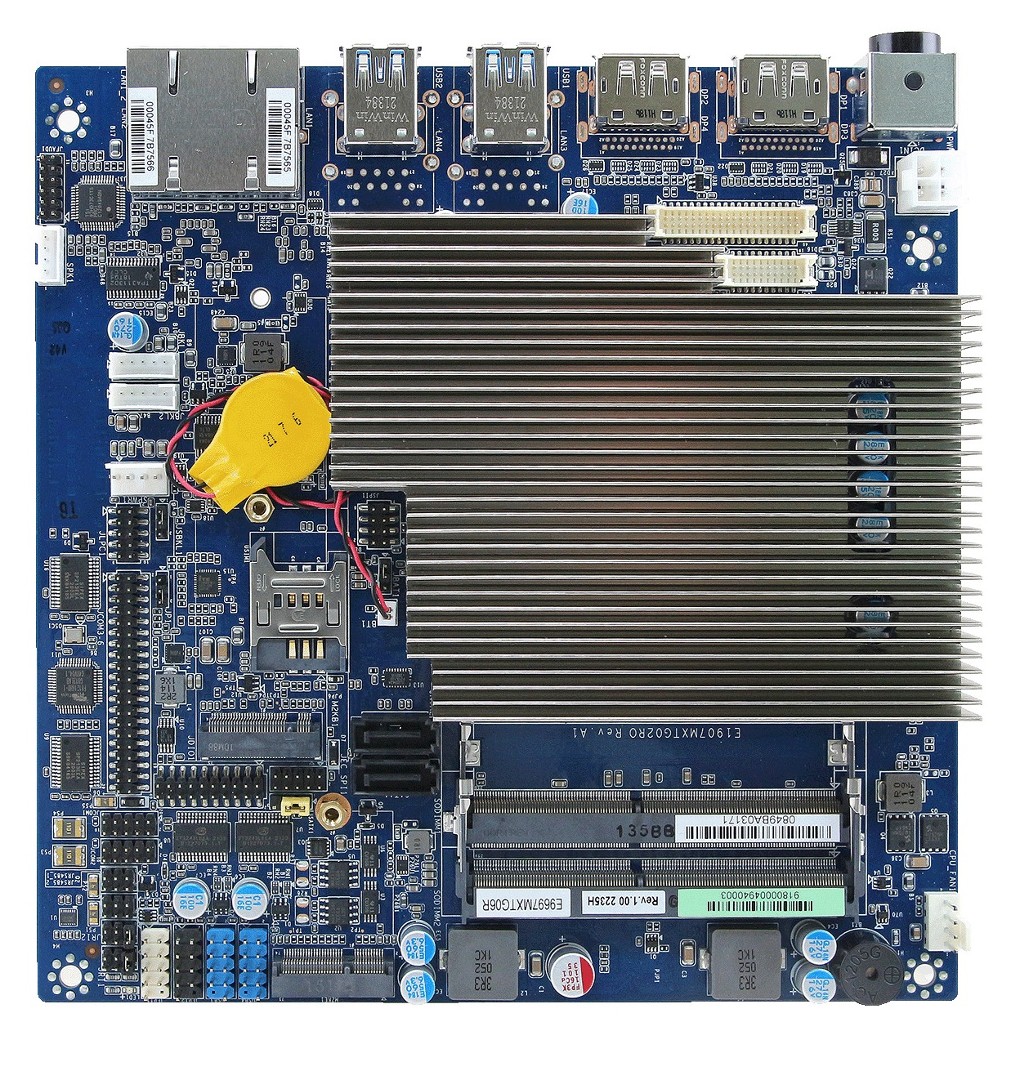

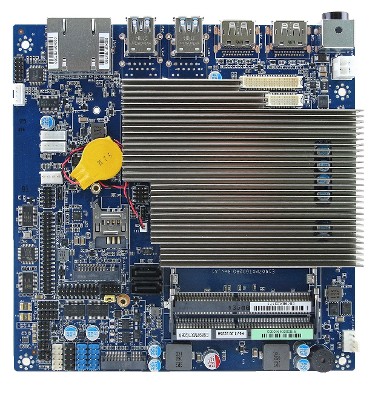

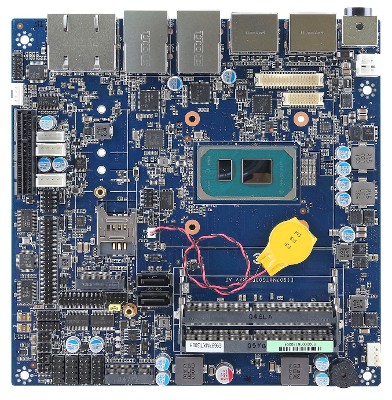

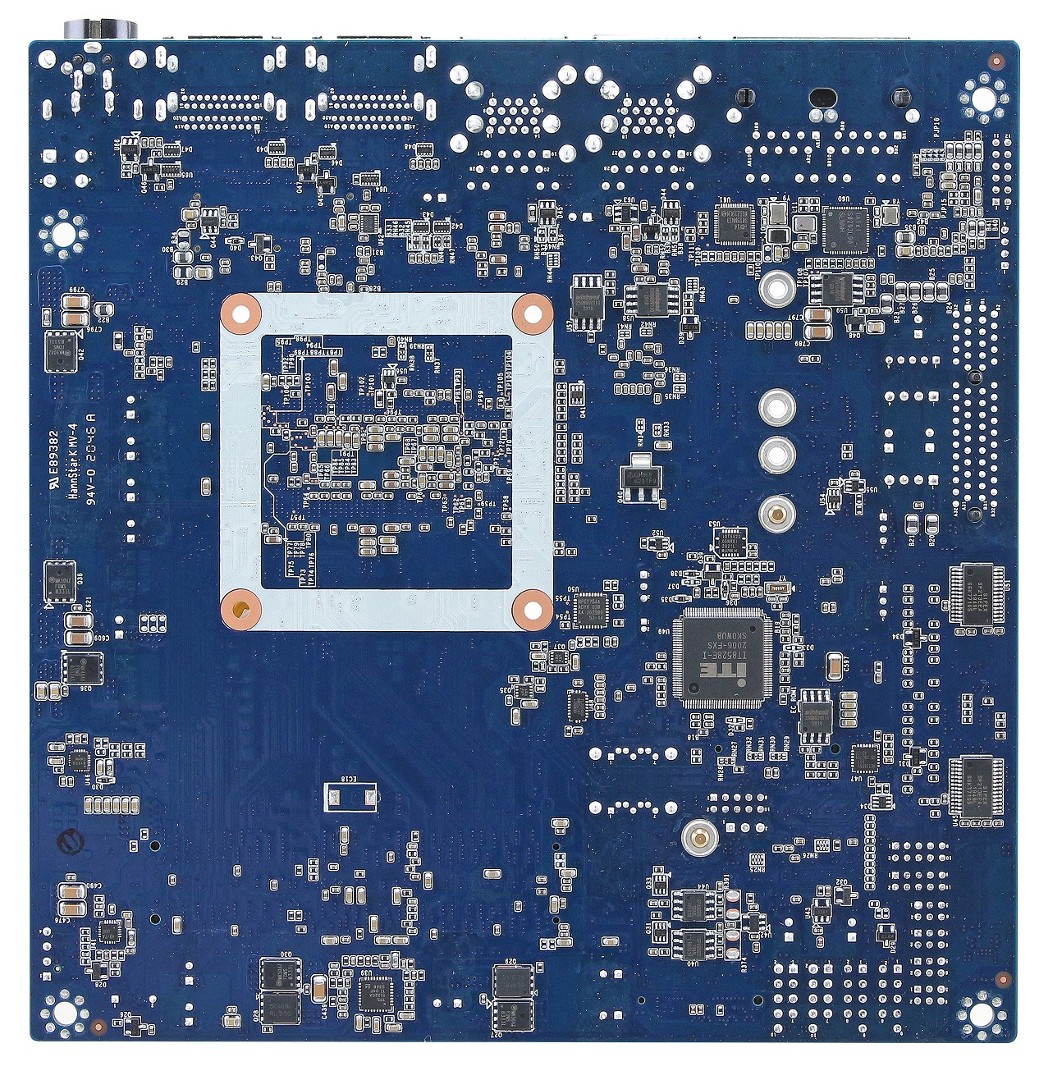

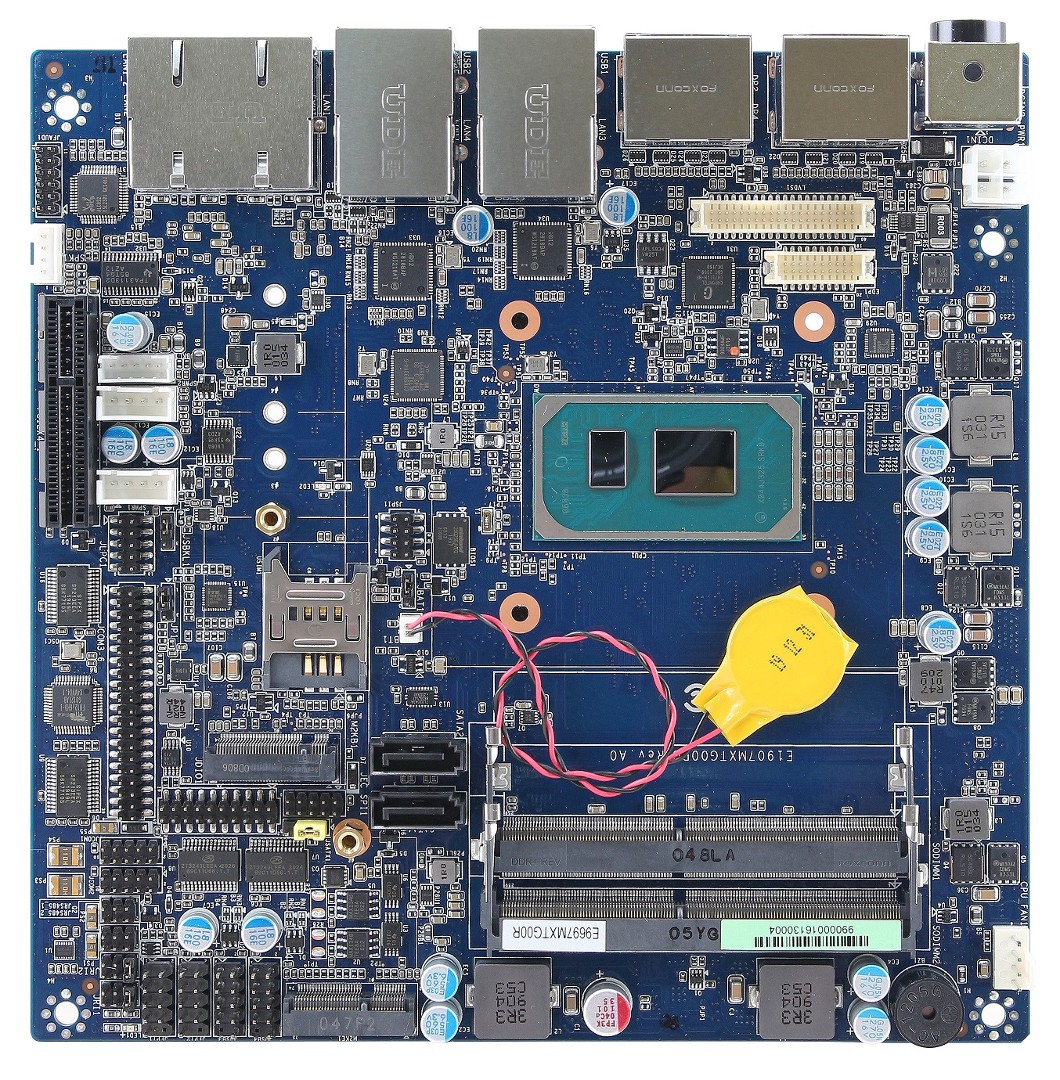

Basismodul: Avalue EMX-TGLP
Allgemein | ||||
SKU / Artikelnummer | EMX-TGLP | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Celeron 6305E, Intel Core i3-1115G4E, Intel Core i3-1115GRE, Intel Core i5-1145G7E, Intel Core i5-1145GRE, Intel Core i7-1185G7E, Intel Core i7-1185GRE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St, 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz, 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
Cache | 4 MB, 6 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W, 28 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX | |
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Gen 11 LP, Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 4 Displays, 6 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4 | |||
Dual Mode | Ja (DP++) | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | Chrontel CH7511B | |||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | NVMe, PCIe ×1 (Gen. 2), SATA III, UIM, USB 3.0 | |||
Unterstütze Abmaße | 2242, 2260, 2280, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 2), USB 2.0, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 2 St, - | |||
Netzwerk | 2x G-LAN | |||

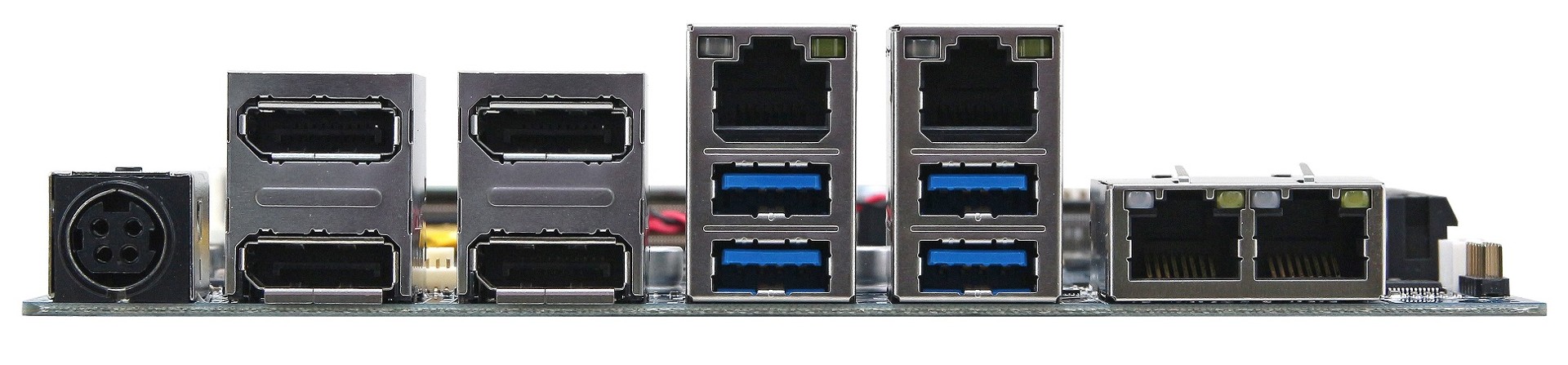

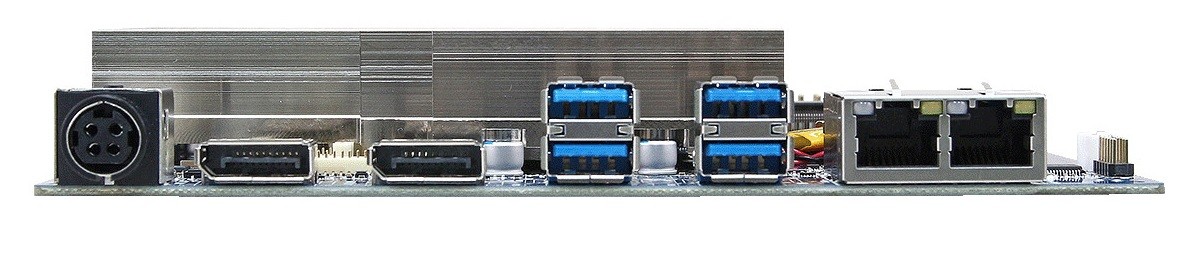

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 2 St, - | ||
DP++ | 2 St | |||
Ethernet | RJ-45 | 2 St, 4 St | ||
USB | USB v3.1 Gen. 1 | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
eDP (embedded Display Port) Lanes | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
Audio | Anschluss | 2.00 mm Pitch | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Amplifier | 2 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
Stromanschluss (onboard) | 1 St | |||
RAID Unterstützung | RAID 0/1 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT754AADYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
DC | Weitbereich | Ja | ||
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 12~24V,12~24V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Mini-ITX, Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Gewicht | 400 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
