Mini-ITX Mainboards
Produkt ist EOL (End Of Life)!
// Mini-ITX Industrie-Mainboards
// [Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// 204 Pin SO-DIMM DDR3L
// 1 x VGA
// 1 x HDMI
// LVDS
// 2 x G-LAN
// 4 x USB
// 5 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

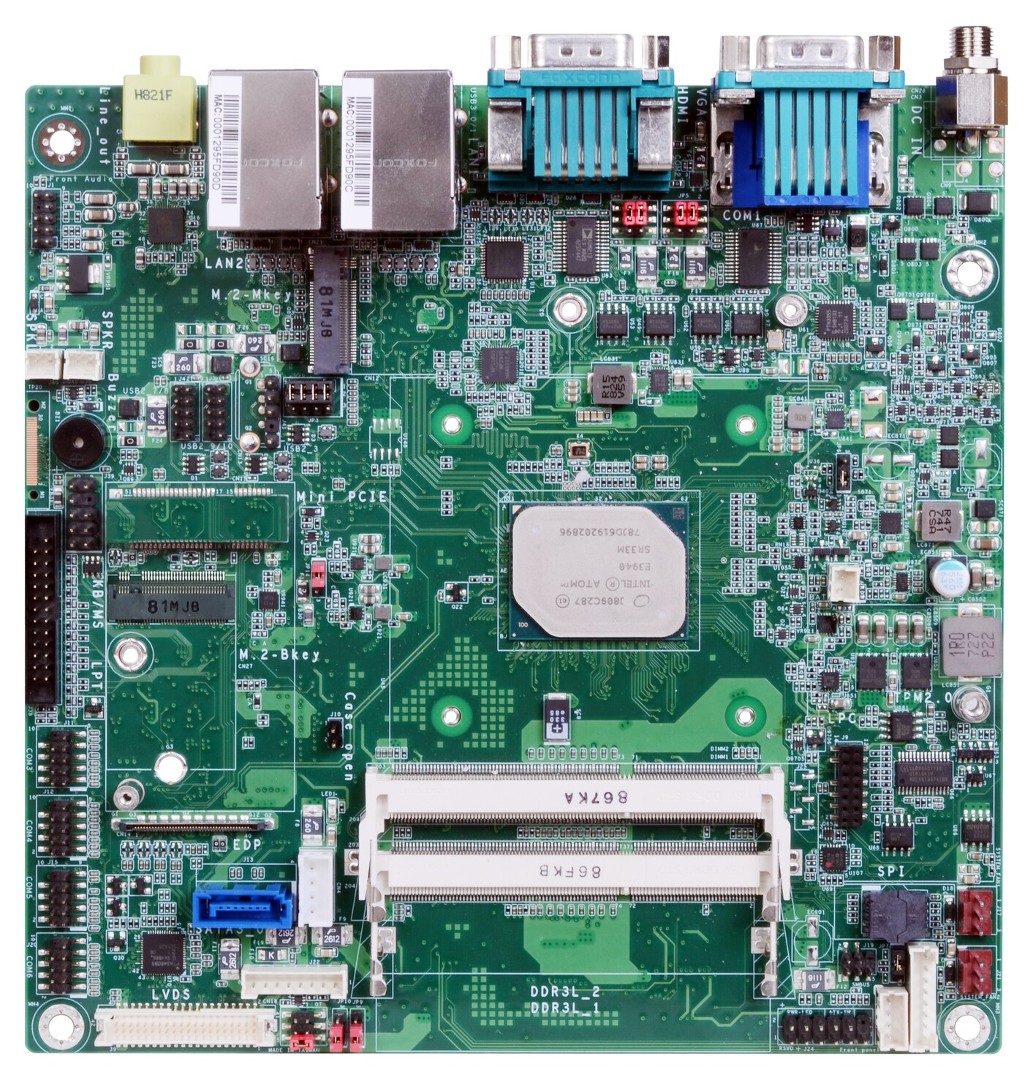

Basismodul: DFI AL102
Allgemein | ||||
SKU / Artikelnummer | AL102 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,6 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 9,5 W, 12 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Frequenz | 1600 / 1866 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 8 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics GT | |||
Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, MVC, VC1 / WMV9, VP 8, VP 9 | |||
HW Encode | AVC / H.264, HEVC / H265, JPEG, VP 8, VP 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 2560 x 1600 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 48 Bit | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×1 (Gen. 2), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC269 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8111HN-CG (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

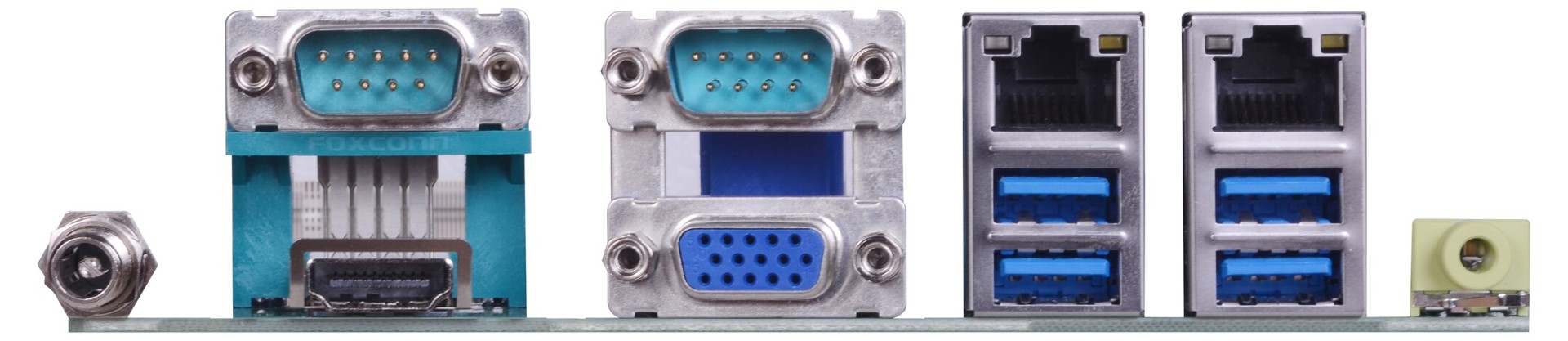

Externe I/O | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 4 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
Audio | Line-Out | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Ports (2.54 mm Pitch) | 1 St | |||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 4 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Unterstützte BS | Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -30° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
FCC | Class B | Ja | ||
Lebenszyklus | ||||
Produktionsstart | Q4/2018 | |||
Voraussichtlich bis | Q1/2031 | |||
Herstellergarantie | ||||
Herstellergarantie | 3 Jahre |
