Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// 204 Pin SO-DIMM DDR3L
// [1 | -] x VGA
// [1 | 2 | -] x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 6 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

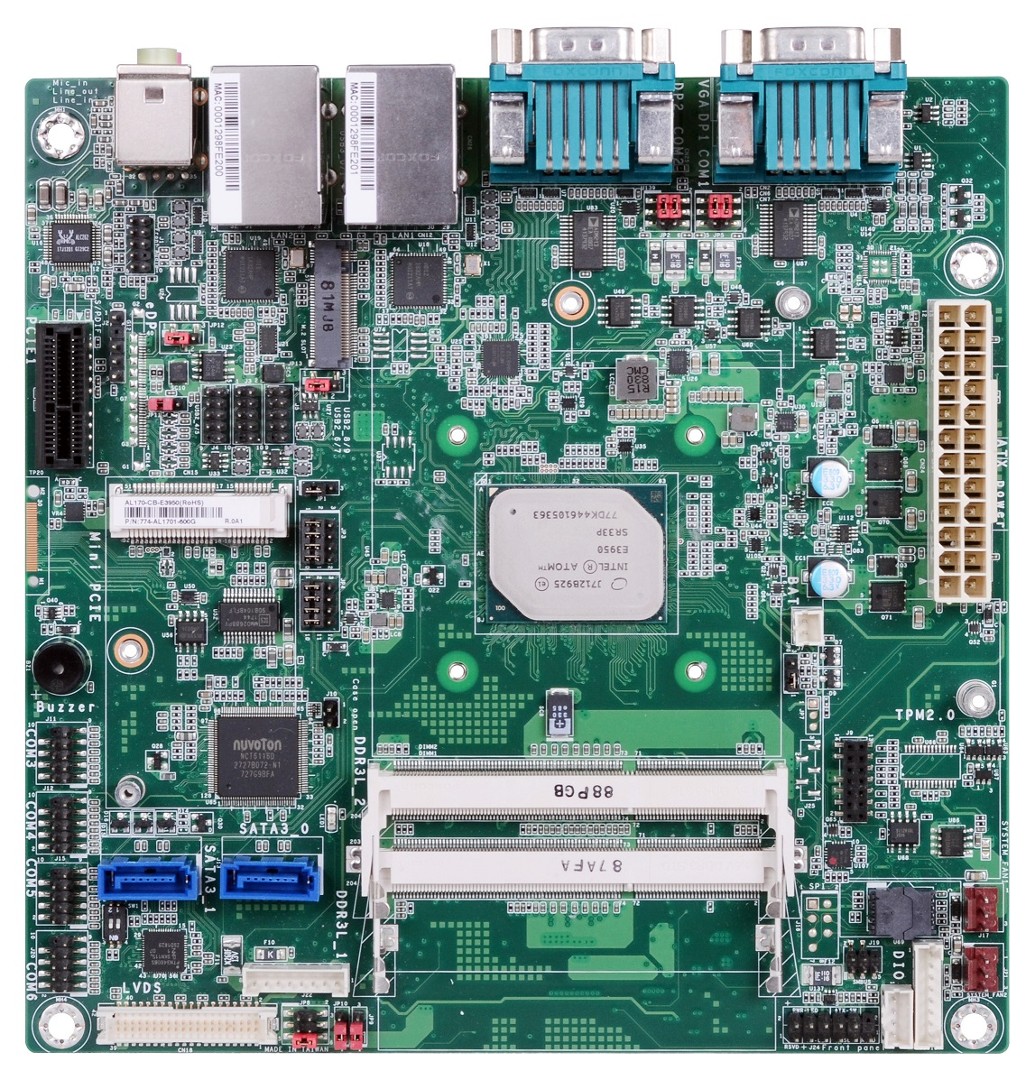

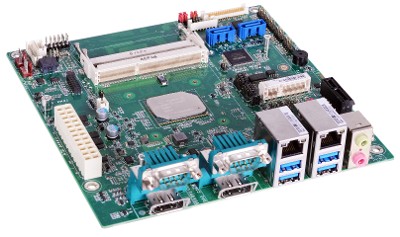

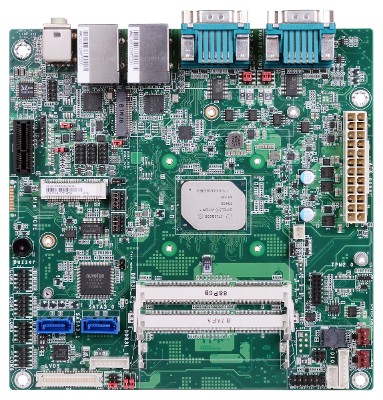

Basismodul: DFI AL170
| Allgemein | ||||
| SKU / Artikelnummer | AL170 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-AL1702-000G, 770-AL1702-100G, 770-AL1702-200G, 770-AL1702-300G, 770-AL1702-400G, 770-AL1702-500G, 770-AL1702-600G | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Apollo Lake | |||
| Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1296 | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| Frequenz | 1600 / 1866 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 8 GB | |||
| BIOS | Insyde SPI 64 Mbit | |||
| Grafik | ||||
| Prozessor | Intel HD Graphics GT | |||
| Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
| HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, MVC, VC1 / WMV9, VP 8, VP 9 | |||
| HW Encode | AVC / H.264, HEVC / H265, JPEG, VP 8, VP 9 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz, 2560 x 1600 bei 60 Hz, - | ||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz, - | ||
| Bits | 48 Bit, - | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz, - | ||
| Erweiterung | ||||
| PCIe x1 | Generation | 2 | ||
| x1 Signal | 1 St | |||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x1 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×1 (Gen. 2), SATA III | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC262-VC2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O | ||||

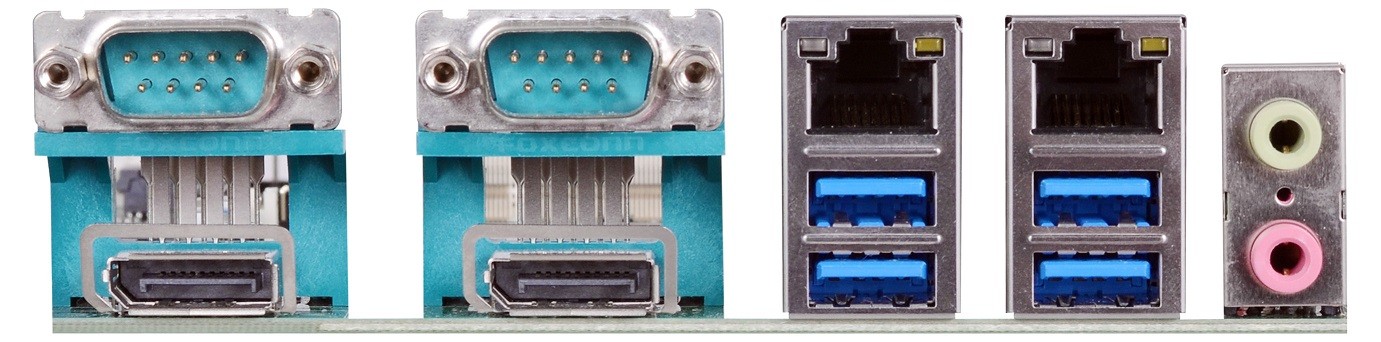

| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.0 | 4 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Anzeige | VGA | 1 St, - | ||
| DP++ | 1 St, 2 St, - | |||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 6 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
| Anzeige | LCD- / Inverterstrom | -, Ja | ||
| LVDS | -, Dual Channel | |||
| LVDS Anschlüsse | 1 St, - | |||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| LPC | 1 St | |||
| Audio | S/PDIF | verfügbar | ||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 24-Pin ATX | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| MTBF | MTBF 25°C | 357.197 h | ||
| MTBF 45°C | 206.214 h | |||
| MTBF 60°C | 130.208 h | |||
| Berechnungsmodell | Telcordia Issue 2, Method I Case 3 | |||
| Umgebung | GB, GC – Ground Benign, Controlled | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
| Lebenszyklus | ||||
| Produktionsstart | Q1/2019 | |||
| Voraussichtlich bis | Q4/2031 | |||
| Herstellergarantie | ||||
| Herstellergarantie | 3 Jahre | |||
