Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// LGA 1700 (H6)
// [Intel H610E | Intel Q670E]
// 262 Pin SO-DIMM DDR5
// 2 x G-LAN (Rückseite)
// [2 | 3 | 4] x USB (Rückseite)
// 1 x USB (intern)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// [0 | 1] x PCIe x4
// Stromversorgung DC 19~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

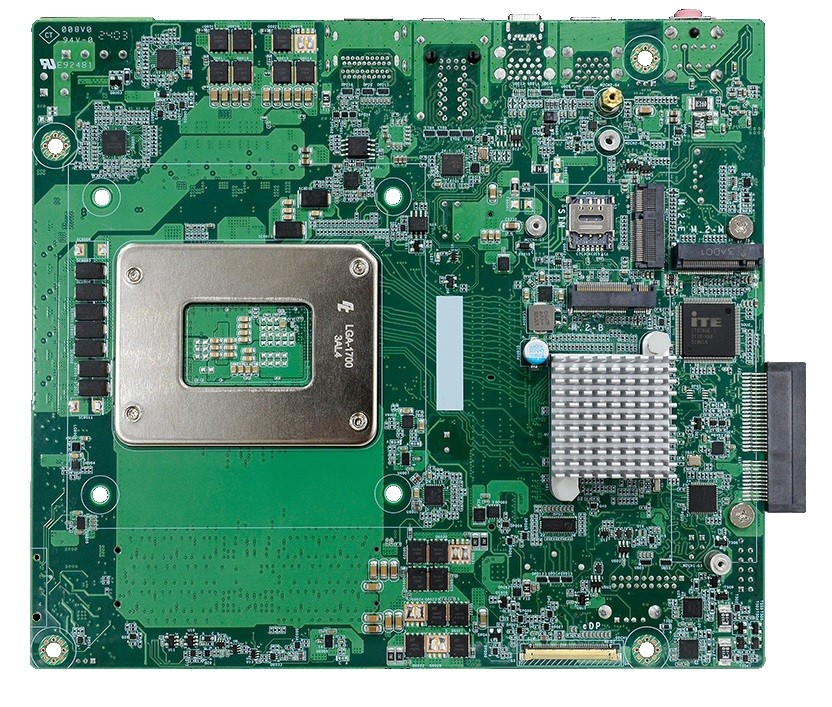

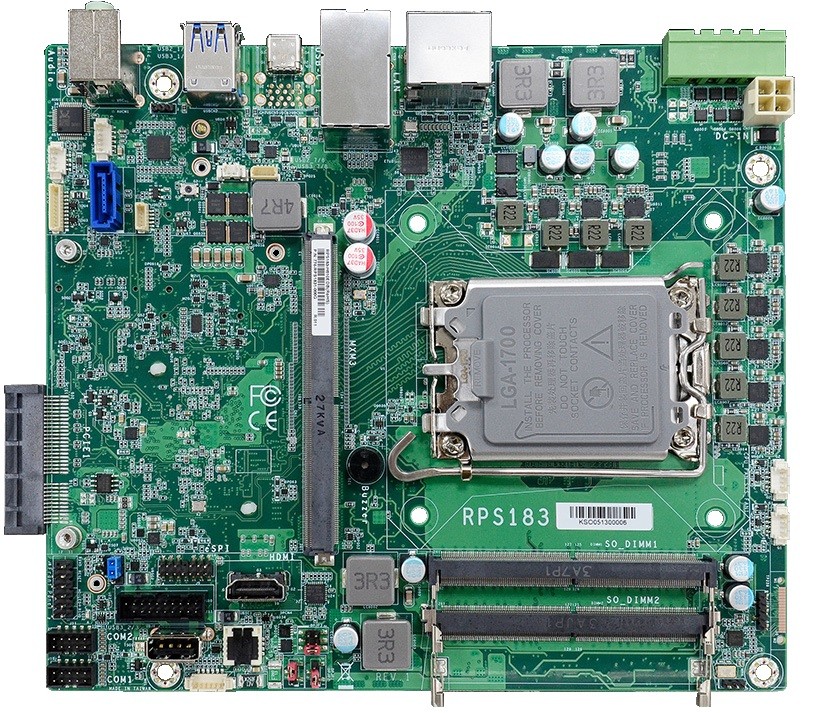

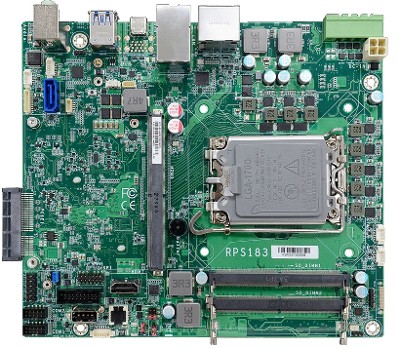

Basismodul: DFI RPS183
Allgemein | ||||
SKU / Artikelnummer | RPS183 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-RPS1831-000G, 770-RPS1831-100G, 770-RPS1831-300G, 770-RPS1831-200G | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E, Intel Q670E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | Generation | 3, - | ||
x4 Signal | 1 St, - | |||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
M.2 Key IDs | B, E, M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

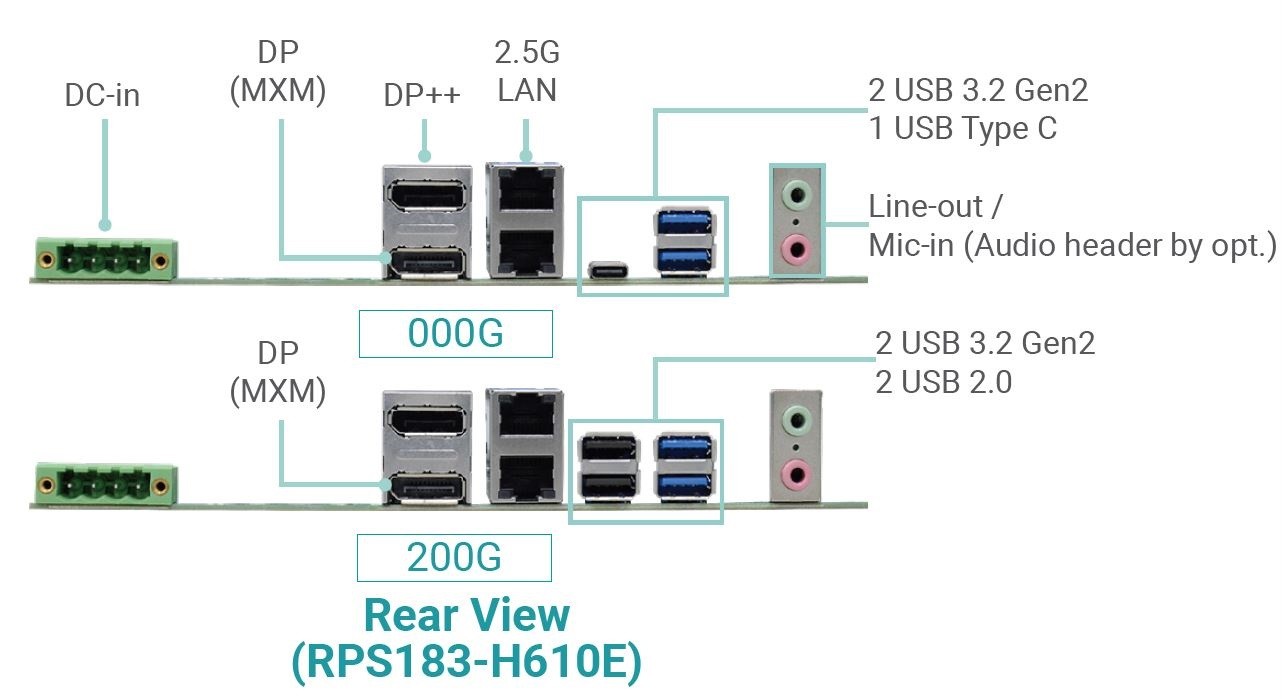

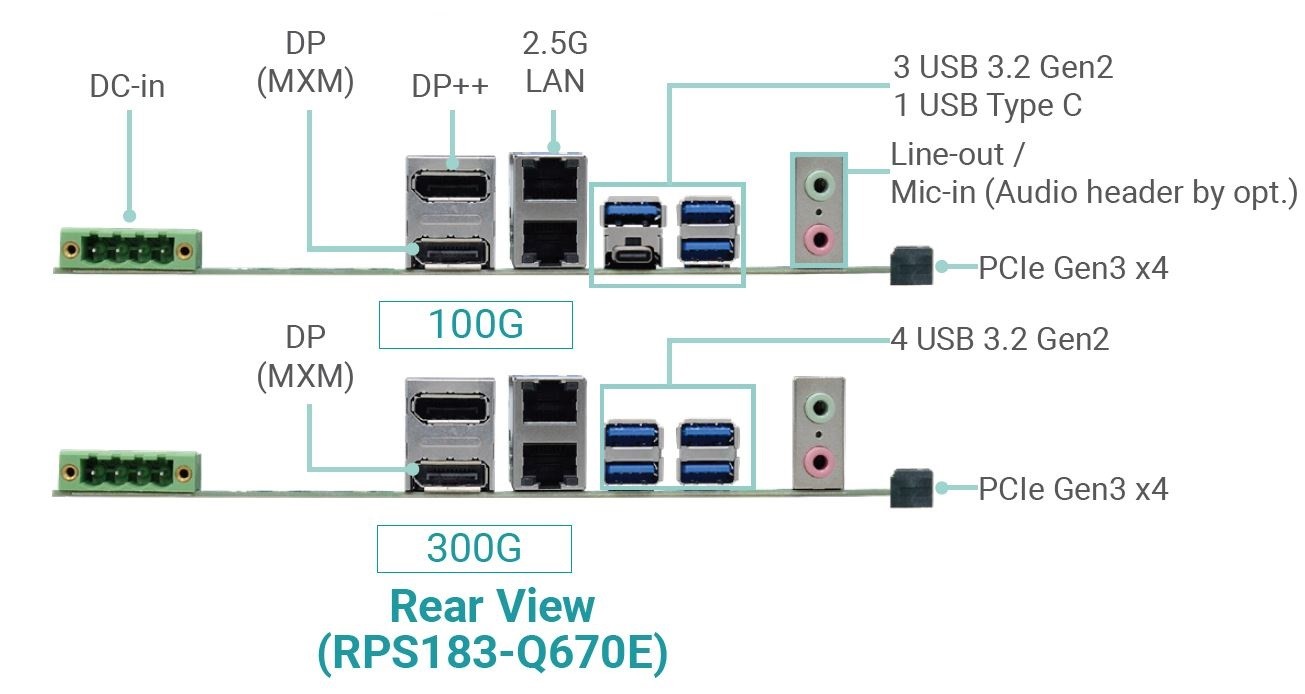

Externe I/O (Rückseite) | ||||
Anzeige | DP++ | 2 St | ||
DP USB-C | 1 St, - | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2, Type A) | 2 St, 3 St, 4 St | ||
USB v3.2 (Gen 2, Type C) | 1 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | |
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
HDMI (vertikaler Anschluss) | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 2 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 19~24V | |||
Anschluss | 4 Pin Terminal Stecker | |||
DC | Weitbereich | Ja | ||
Bereich | 19~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 19~24V,19~24V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 65°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 195 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
