Mini-ITX Mainboards
// Mini-ITX Industrie-Mainboards
// Intel Xeon D-1521
// SoC (System-On-Chip)
// 288 Pin DIMM DDR4
// 1 x VGA
// [3 | 5] x G-LAN
// 2 x USB
// 1 x Seriell I/O
// 1 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

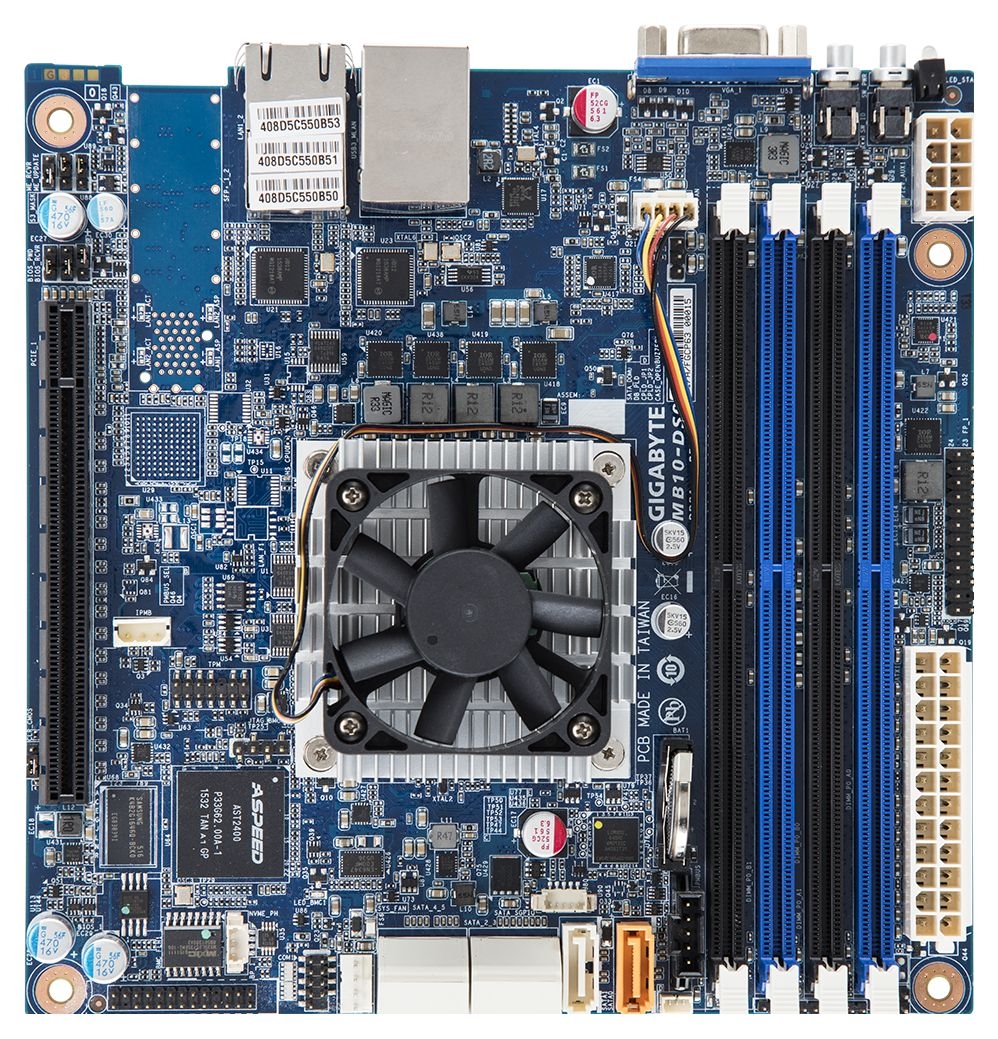

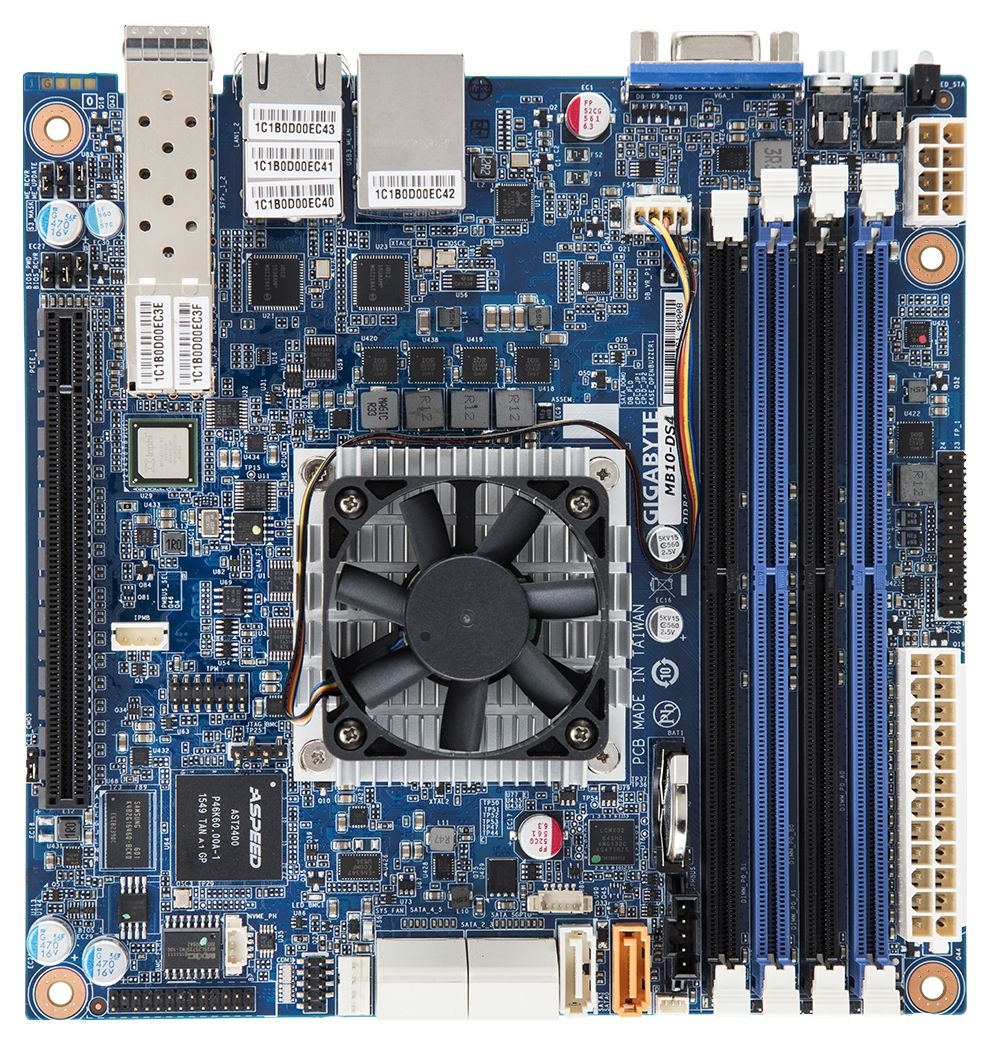

Basismodul: GIGAIPC MB10-DS
Allgemein | ||||
SKU / Artikelnummer | MB10-DS | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Serie | Intel Broadwell | ||
Nummer | Intel Xeon D-1521 | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1667 | |||
Basis Frequenz | 2,4 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 45 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 32 GB | |||
Grafik | ||||
Prozessor | Aspeed AST2400 BMC | |||
VGA | Maximale Auflösung | 1600 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | -, Intel X552 (10 Gbps) | |
Anzahl | 2 St, - | |||
Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

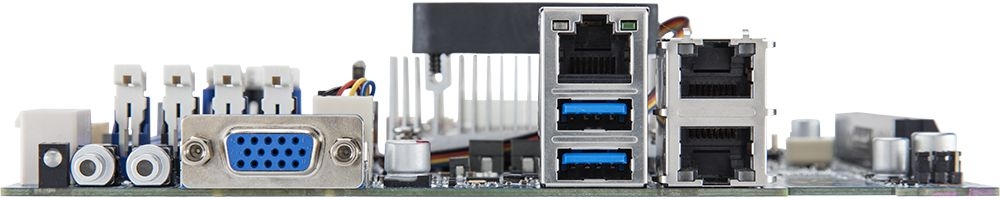

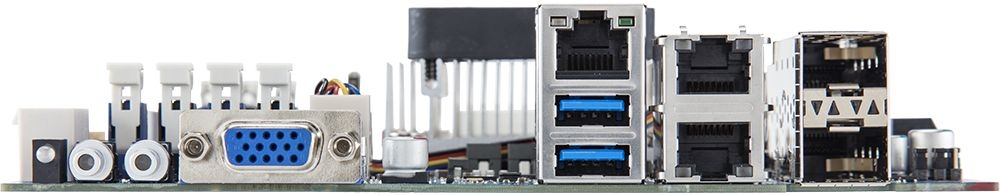

Externe I/O | ||||
Ethernet | RJ-45 | 3 St | ||
SFP+ (enhanced small form-factor pluggable) | 2 St, - | |||
USB | USB v3.0 | 2 St | ||
Anzeige | VGA | 1 St | ||
Interne I/O | ||||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
JTAG (Joint Test Action Group) | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | CentOS 7, Ubuntu 14.04 | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 35°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
System Status | 2 St | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
